Automatic Shift Diagram
>>
A140E
A140E

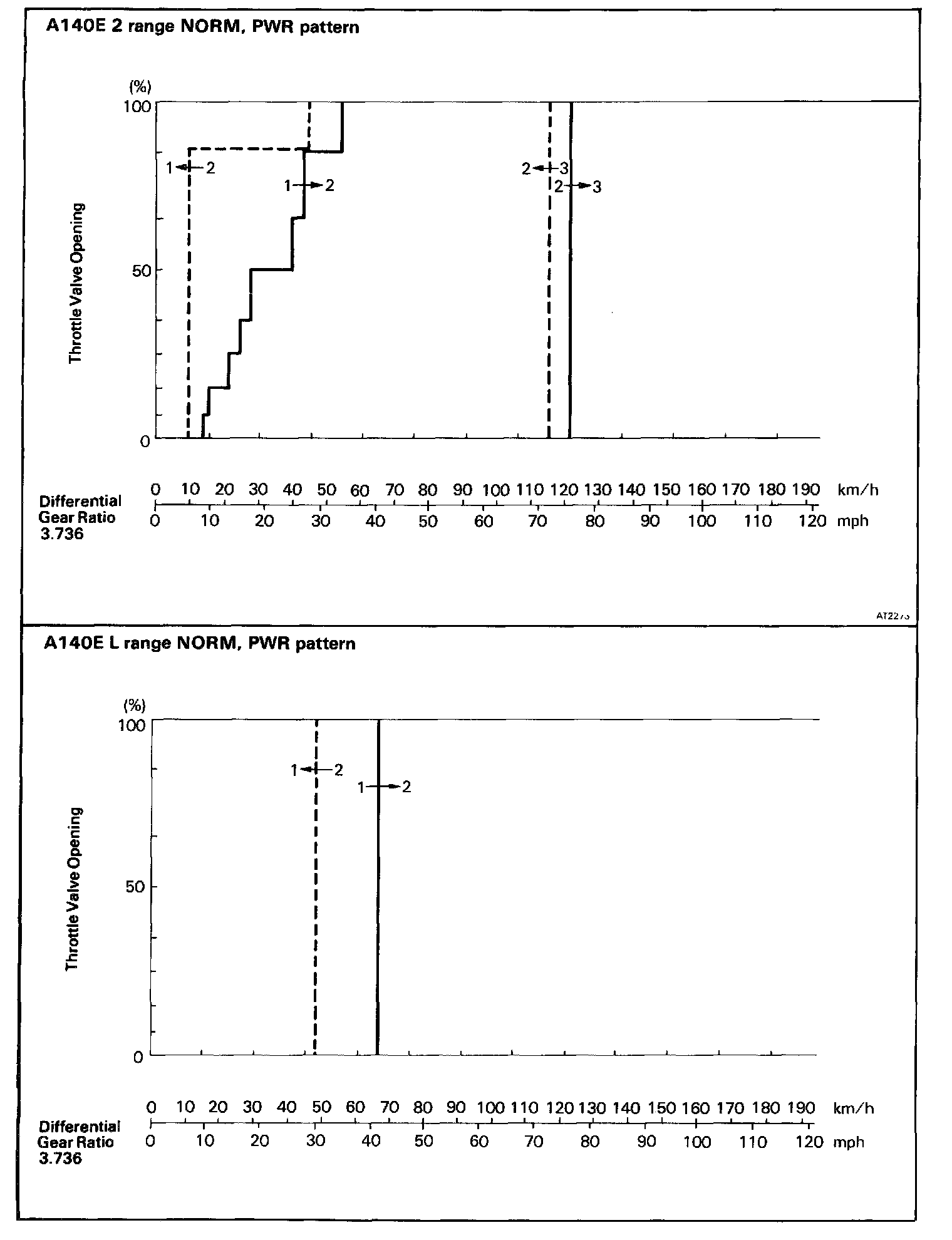

Automatic Shift Diagram - Part 1:

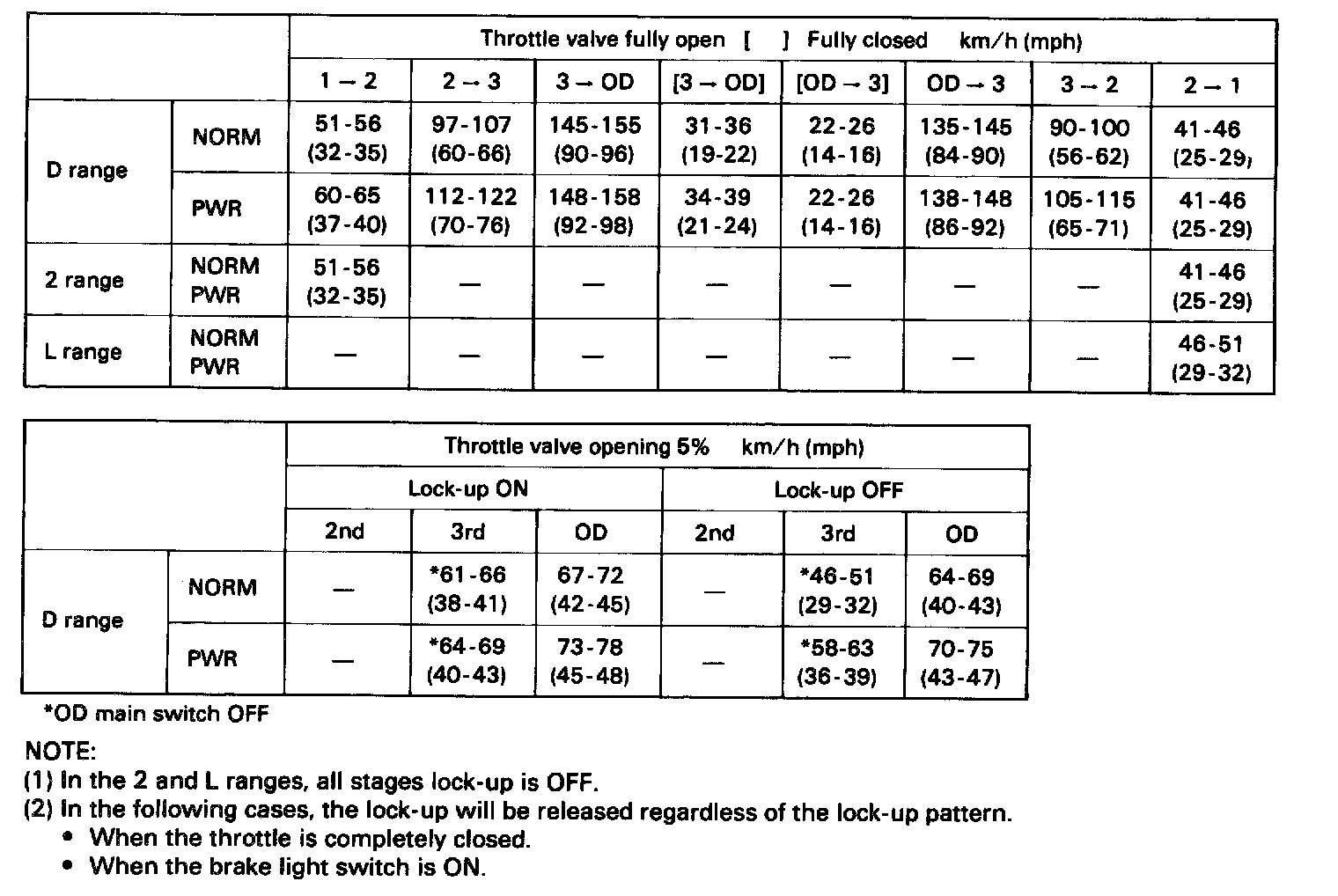

Automatic Shift Diagram - Part 2:

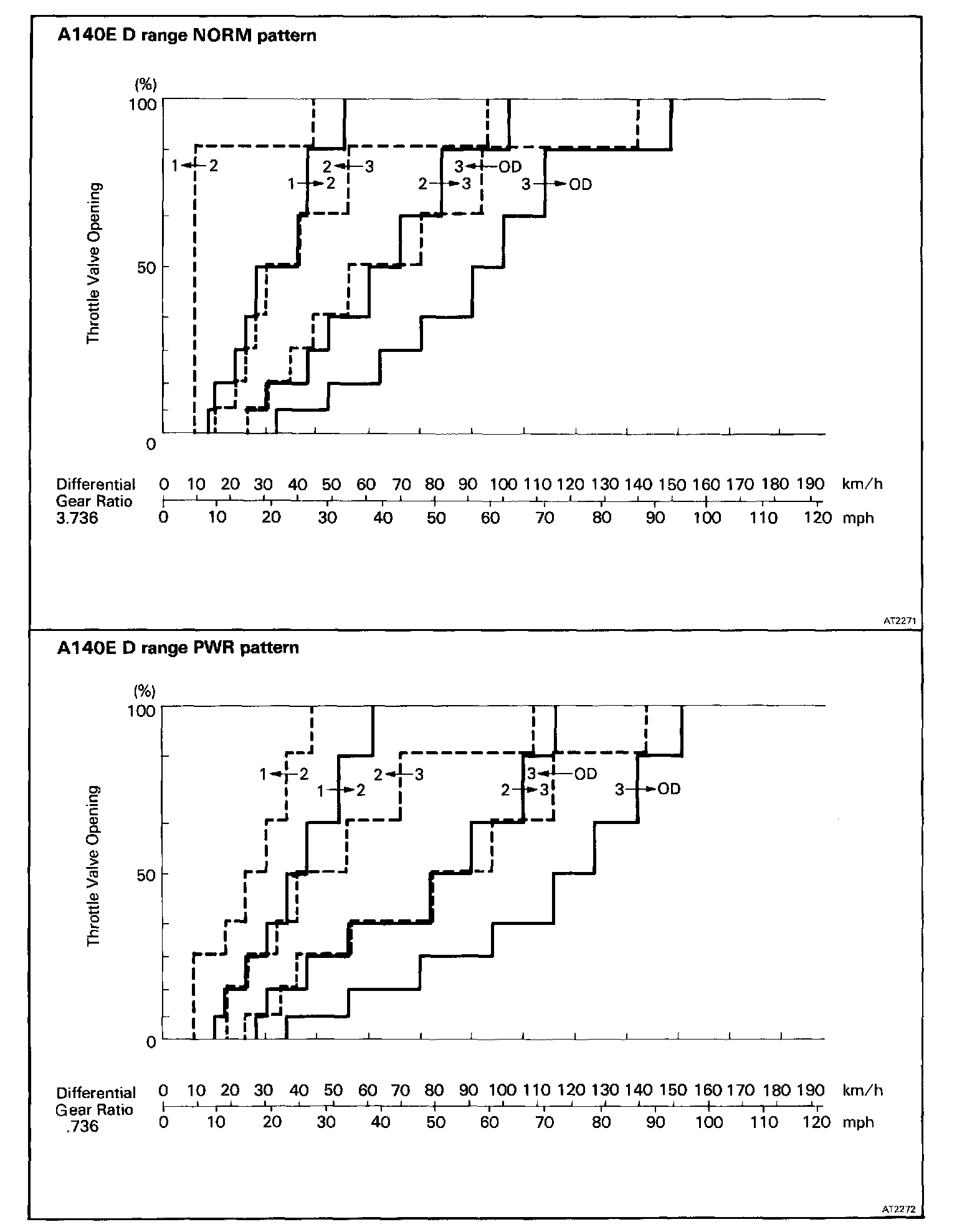

Automatic Shift Diagram - Part 3:
