Removal

REMOVAL


1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY.






2. DISCONNECT COLD START INJECTOR CONNECTOR.

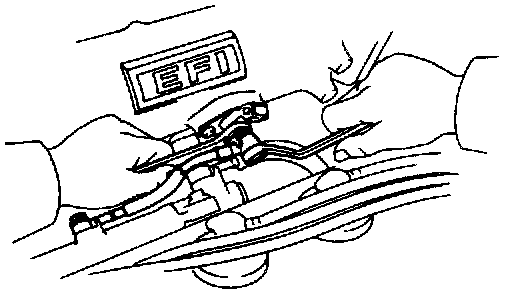

3. REMOVE COLD START INJECTOR PIPE.
a. Put a suitable container or shop towel under the injector pipe.
b. Remove the two union bolts, four gaskets and injector pipe.

NOTE: Slowly loosen the union bolts.

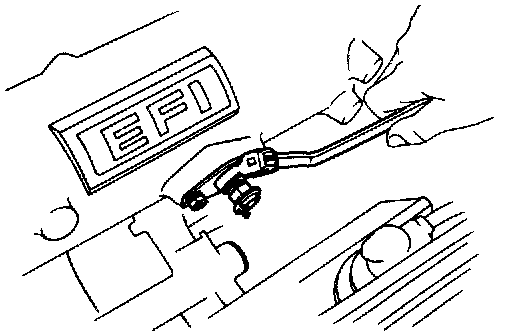

4. REMOVE COLD START INJECTOR.
Remove the two bolts, injector and gasket.
