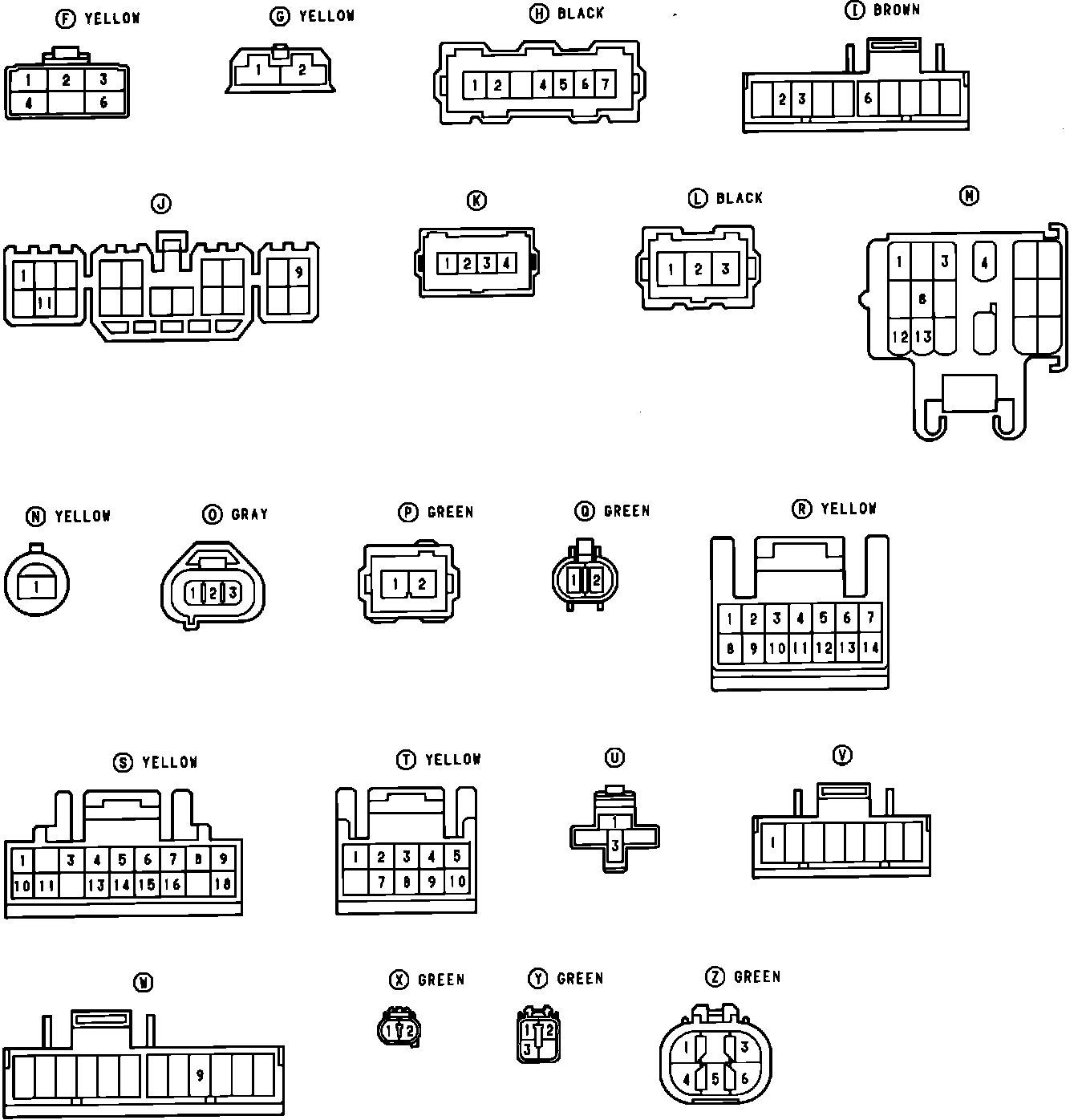

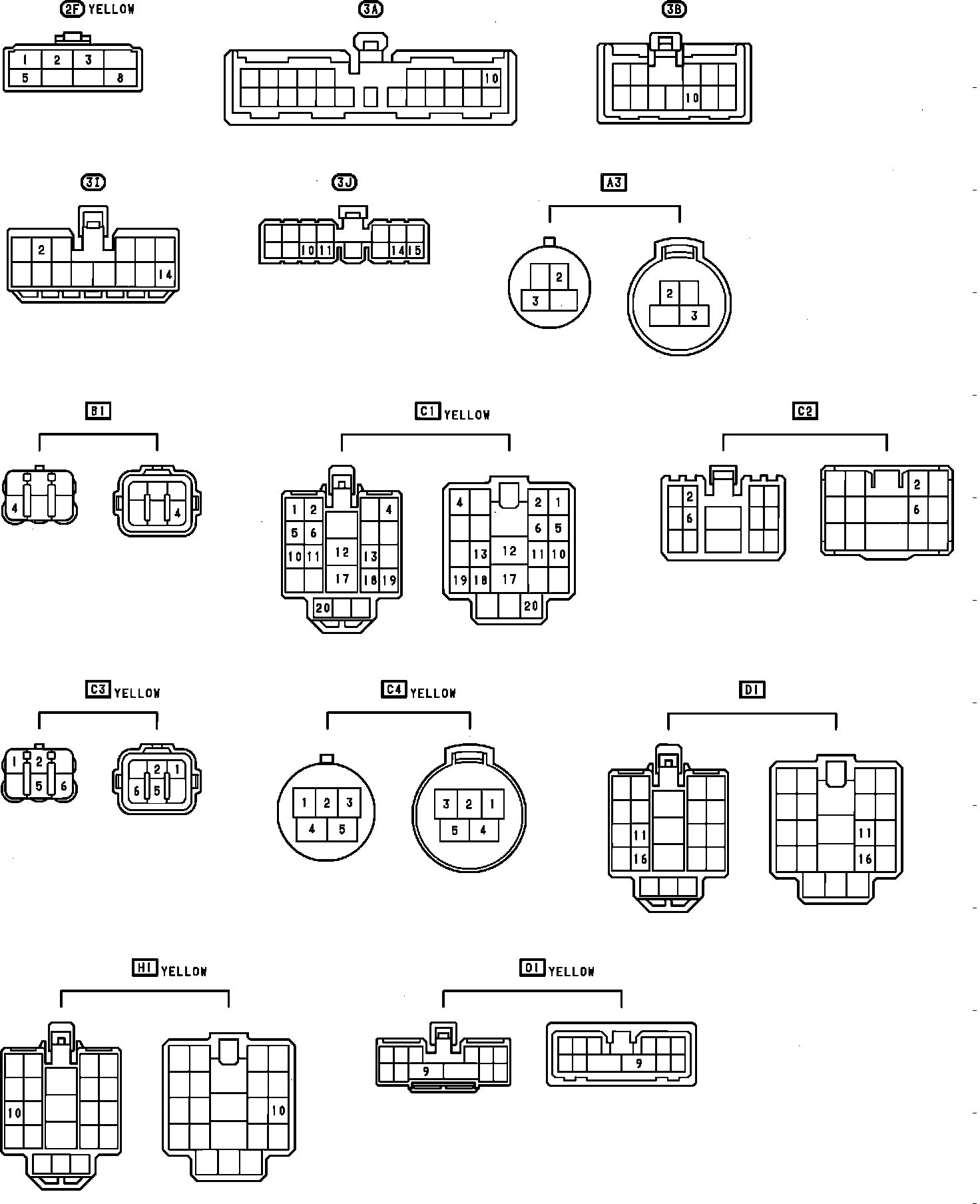

Connector ID
Connector ID
Fig. 284 EFI Wiring Diagram:
Fig. 285 EFI Wiring Diagram:
Fig. 280 EFI Wiring Diagram:
