Fluid - A/T: Service and Repair
1. REPLACE ATFCAUTION: Do not overfill.

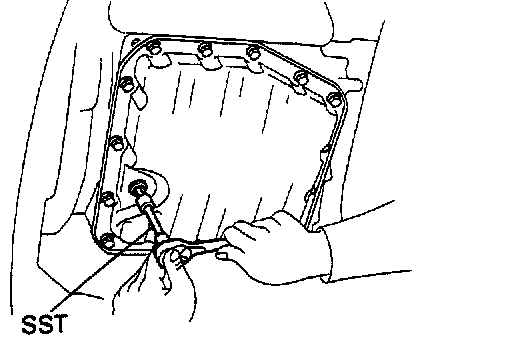

(a) Remove the drain plug and drain the fluid.
(b) Reinstall the drain plug securely.
(c) With the engine OFF, and new fluid through the dipstick tube.
SST 09043-38100
Fluid: ATF DEXRON� II
Capacity: 5.6 liters (5.9 US qts, 4.9 Imp. qts)
Drain and refill: 2.5 liters (2.6 US qts, 2.2 Imp. qts)
(d) Start the engine and shift the selector into all positions from P through L and then shift into P.

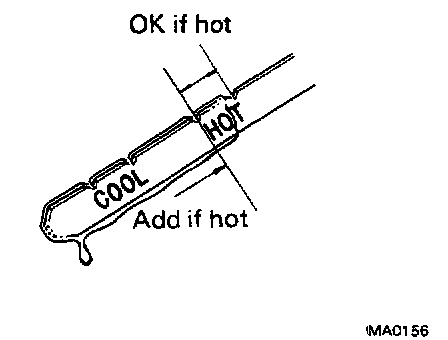

(e) With the engine idling, check the fluid level. Add fluid up to the "COOL" level on the dipstick.
(f) Check the fluid level with the normal fluid temperature (70 - 80°C or 158- 176°F) and add as necessary.
CAUTION: Do not overfill.
