Condenser Fan Motor Relay
>>
Testing and Inspection
>>

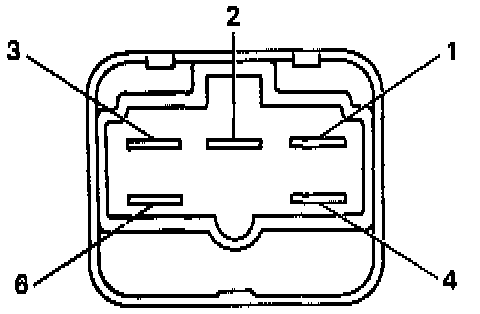

Fan Relay Number 2
Fan Relay Number 2

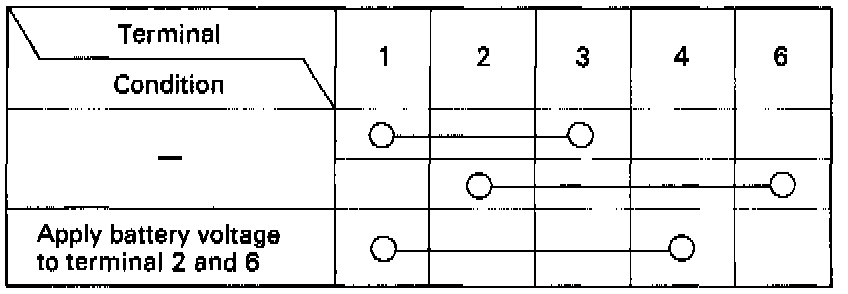

Inspect relay continuity.
If continuity is not as specified, replace the relay.
