Tercel Wagon L4-1452cc 1.5L SOHC (3A-C)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Specifications
>>
A/T Technical Data
>>
A55F 3-SPD A/T
A55F 3-SPD A/T

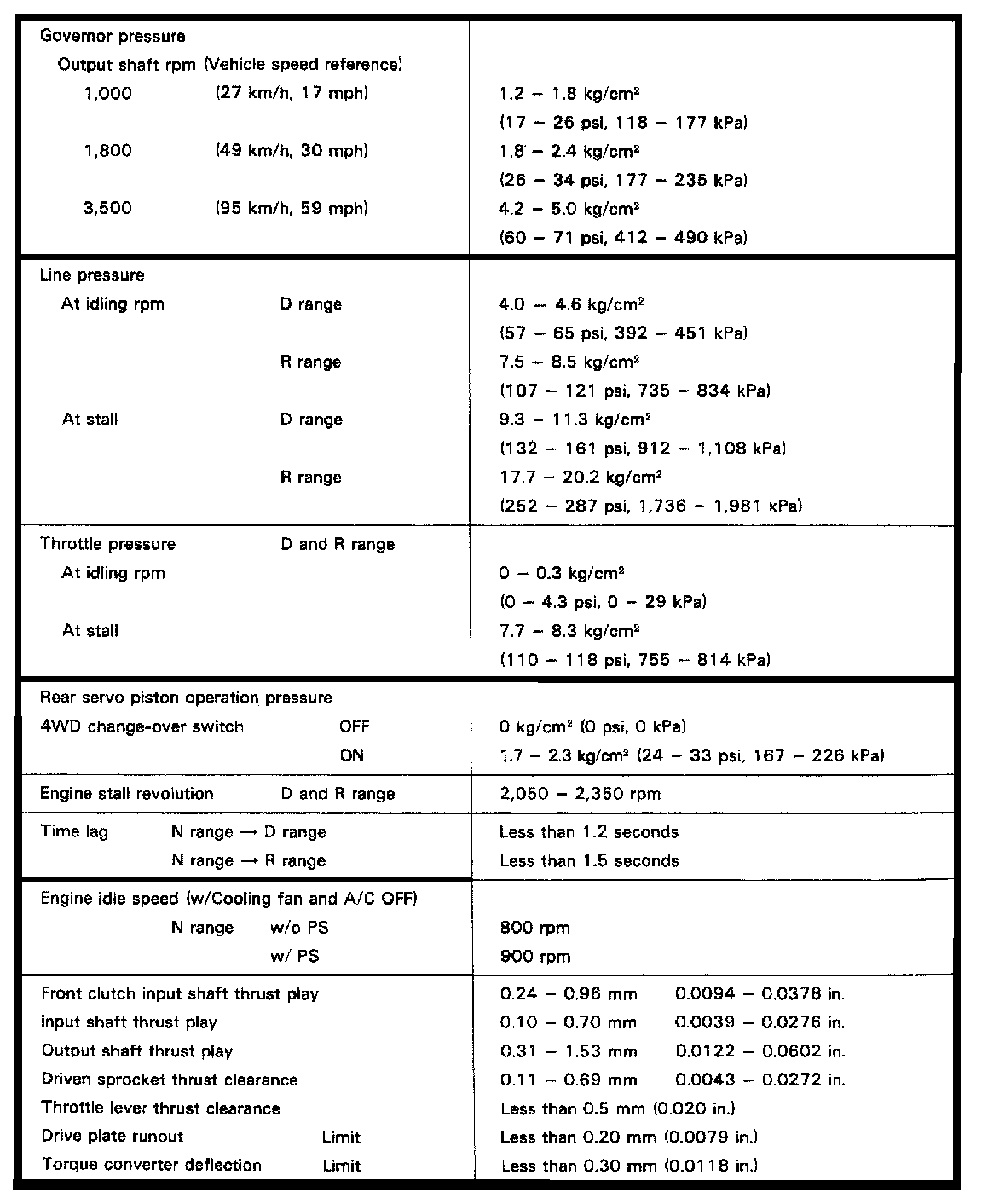

A55F 3-spd A/T, Line Pressure/Clearances:

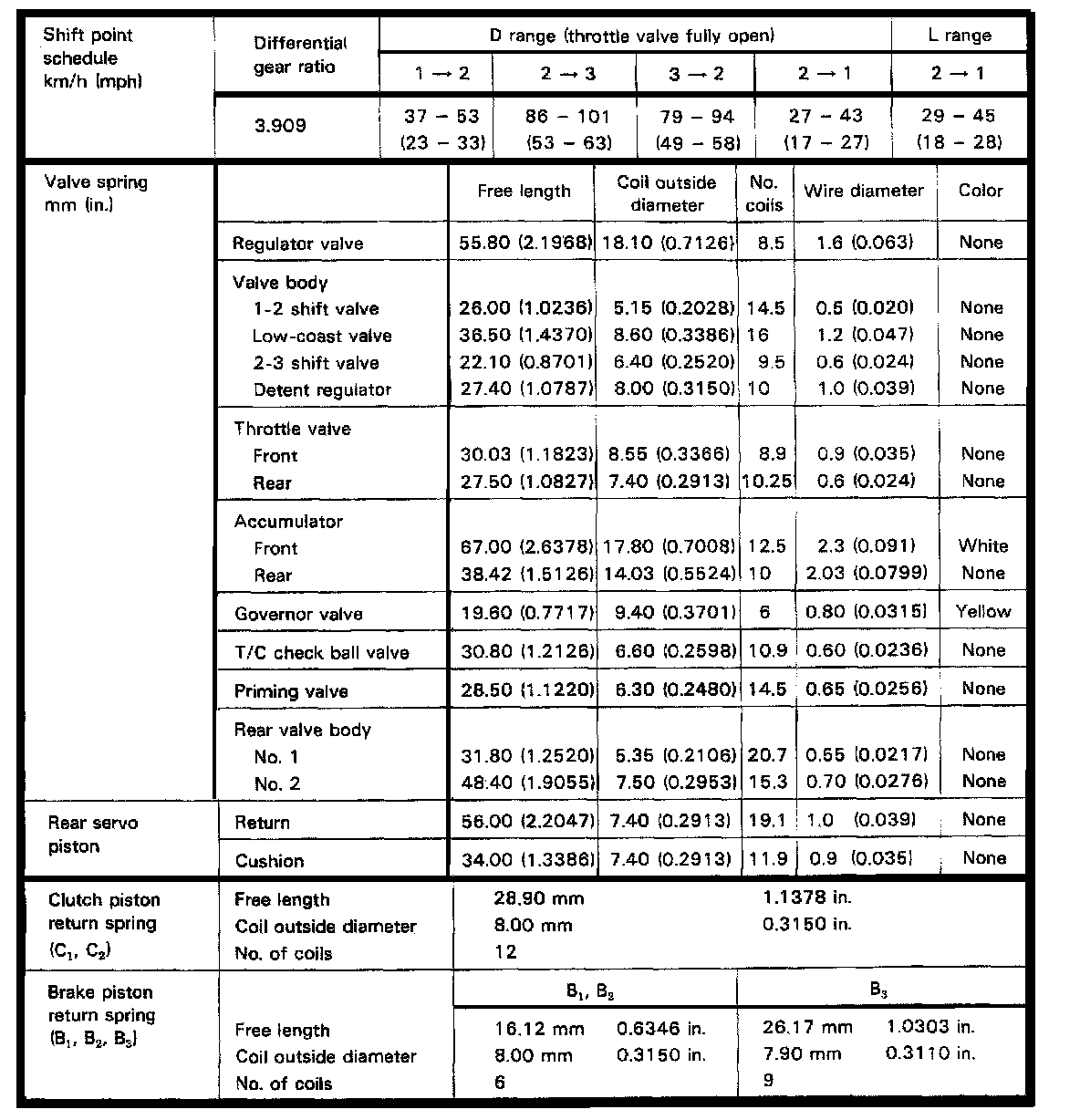

A55F 3-spd A/T, Gear Ratio/Spring Clearances:

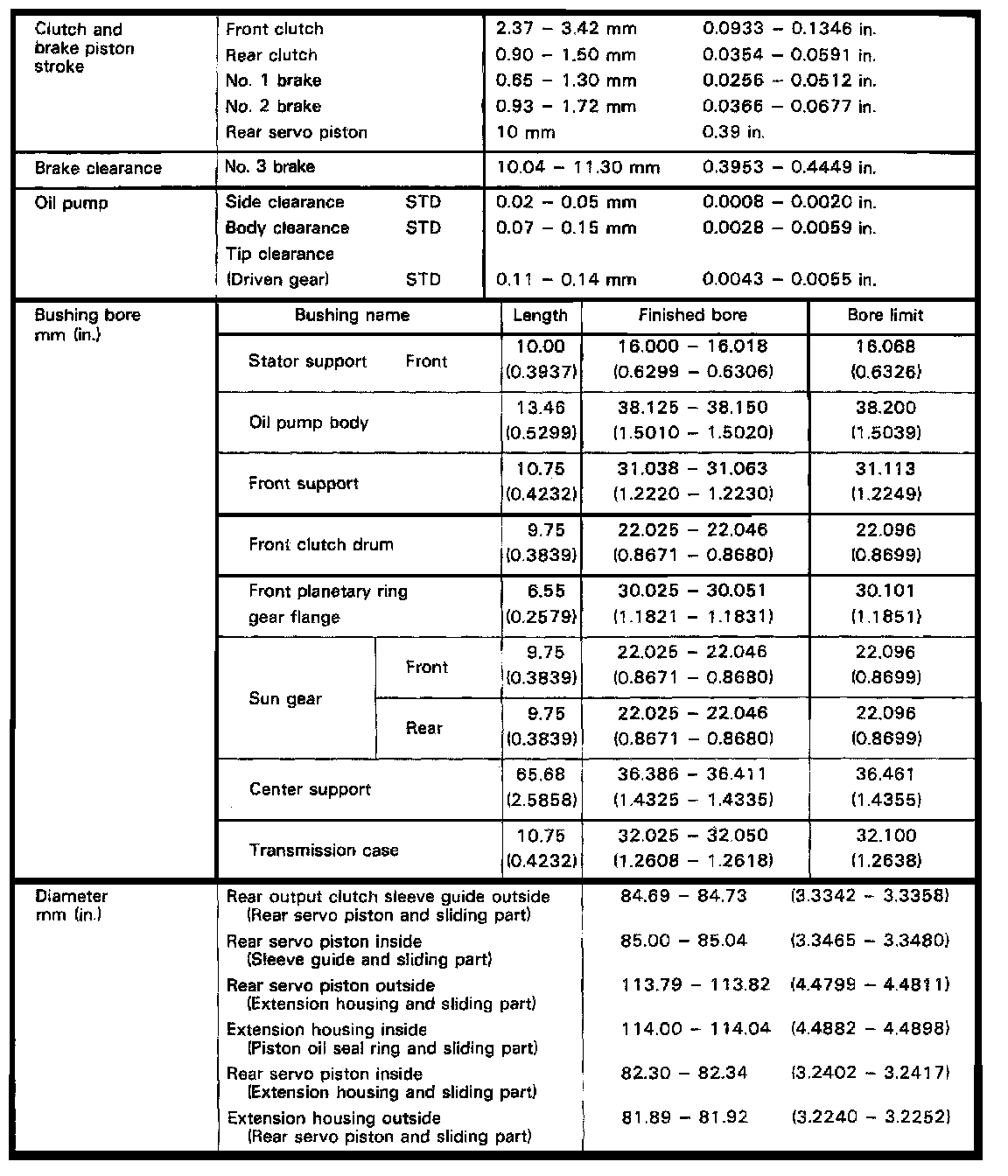

A55F 3-spd A/T, Clutch Clearance/Diameters:
