Shift Linkage: Adjustments

ADJUSTMENT OF FLOOR SHIFT LINKAGE




1. INSPECT CONNECTING ROD BUSHING FOR WEAR OR DEFORMATION
2. LOOSEN NUT ON CONNECTING ROD




3. ADJUST SHIFT LINKAGE
a. Push the manual lever fully rearward.
b. Return the lever two notches to the NEUTRAL position.

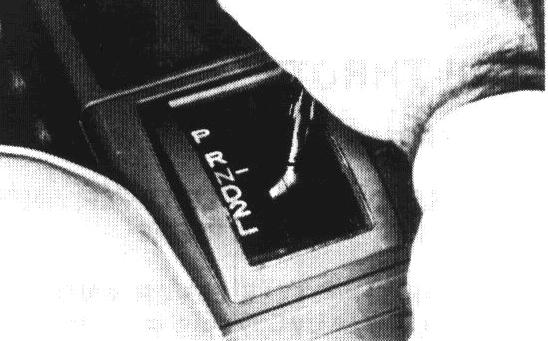

c. Set the shift selector to "N".
d. While holding the selector slightly toward the "R" range, tighten the connecting rod nut.
