Neutral Start Switch Inspection

INSPECT NEUTRAL START SWITCH

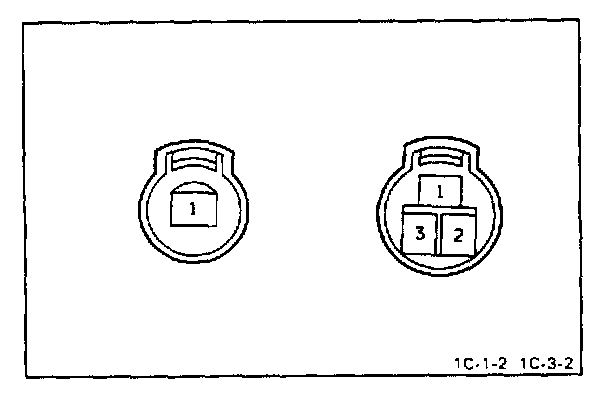

a. Make sure that there is continuity between terminals 2 and 3 in "P" and "N" ranges.
b. Make sure that there is continuity between terminals 1 and 1 in "R" range.
