Neutral Start Switch

ADJUSTMENT OF NEUTRAL START SWITCH
If the engine will start with the shift selector in any range other than "N" or "P" range, adjustment is required.

1. LOOSEN NEUTRAL START SWITCH BOLT
2. SET SHIFT SELECTOR IN "N"




3. ADJUST NEUTRAL START SWITCH
If the engine will start with the shift selector in any range other than N or P range, adjustment is required.

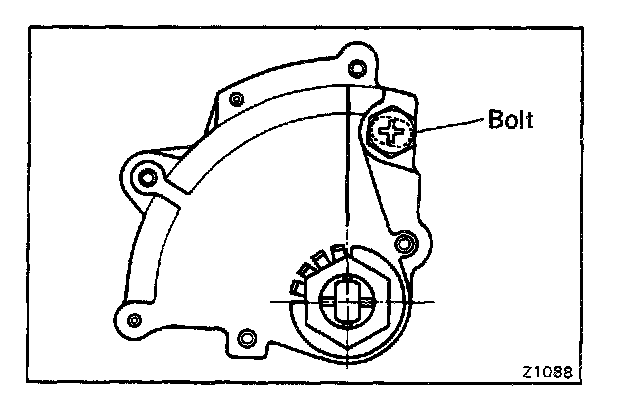

a. Loosen the neutral start switch bolt and set the shift selector to the N range.
b. Align the groove and neutral basic line.
c. Hold in position and tighten the bolts.

Torque: 130 kg-cm (9 ft-lb, 13 N.m)
