Tercel Wagon L4-1452cc 1.5L SOHC (3A-C)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Wagon
Wagon

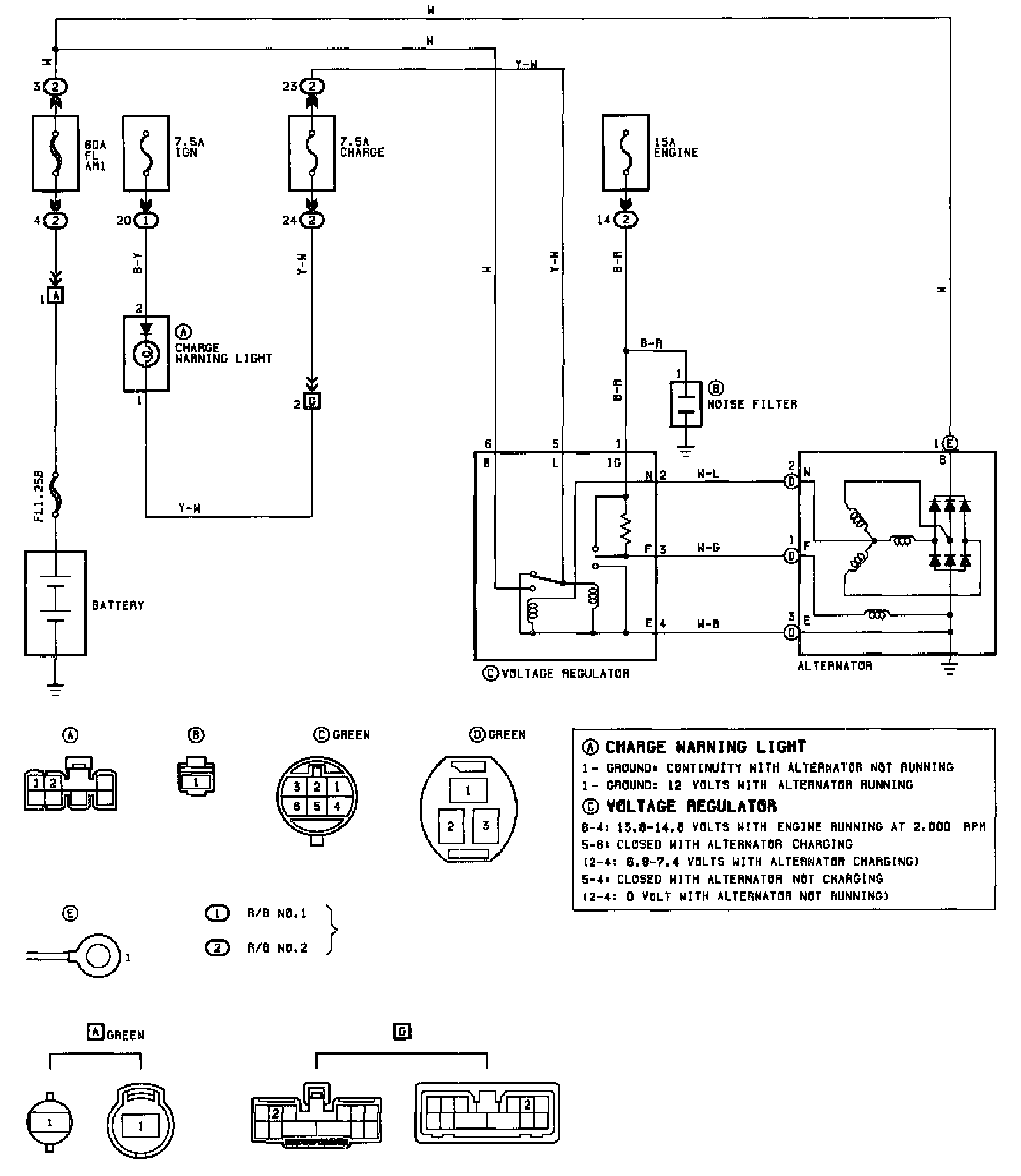

Charging System (Tirrill Regulator Type):

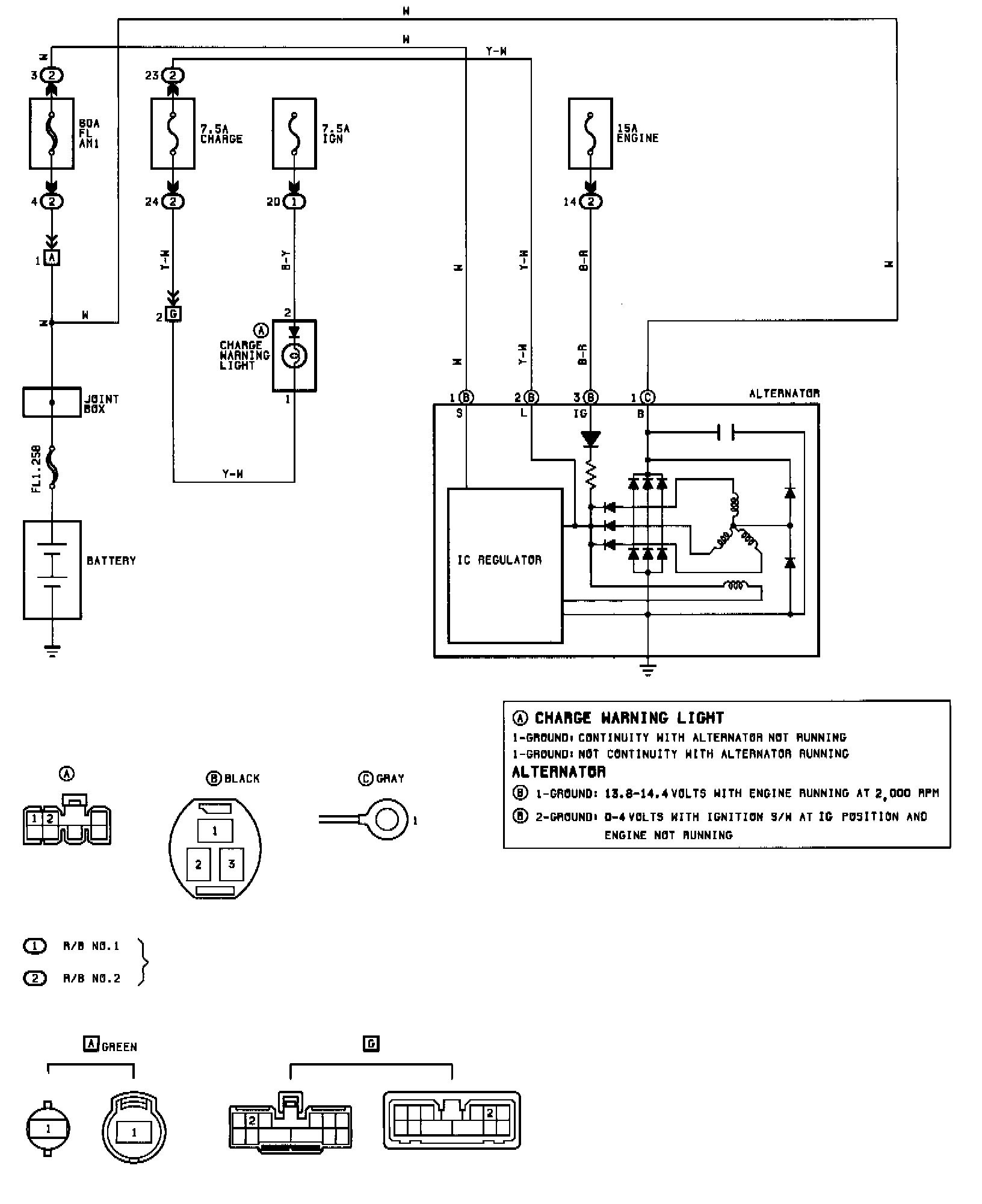

Charging System (IC Regulator Type):
