Fuel - Revised Carburetor Float Level Specification

87toyota6

REFERENCE: ENGINE
NUMBER: 002
DATE: 06-05-87
MODEL: (EL)

TITLE EL CARBURETOR FLOAT LEVEL

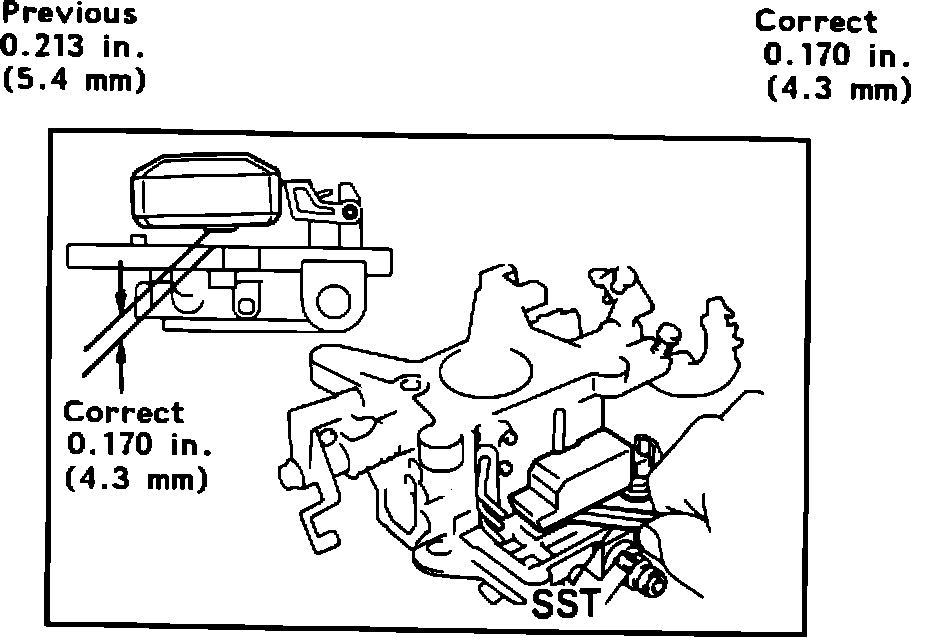

The carburetor float level (upper position) specification listed in the 1987 Tercel Sedan repair manual, RM037u, section-page number FU-13, is incorrect. When adjusting the carburetor float level (upper position) use the specification listed below:
NOTE: Refer to the repair manual for float adjustment procedures.
