Service Port HVAC: Locations

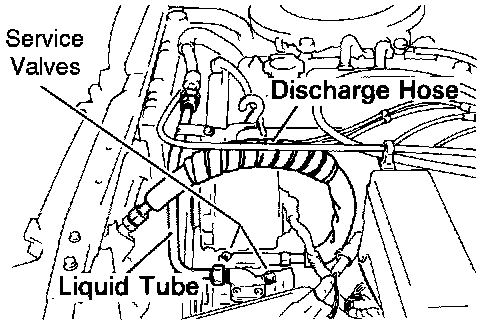

The fittings for attaching the service valves are located on the top of the compressor.
