Carburetor

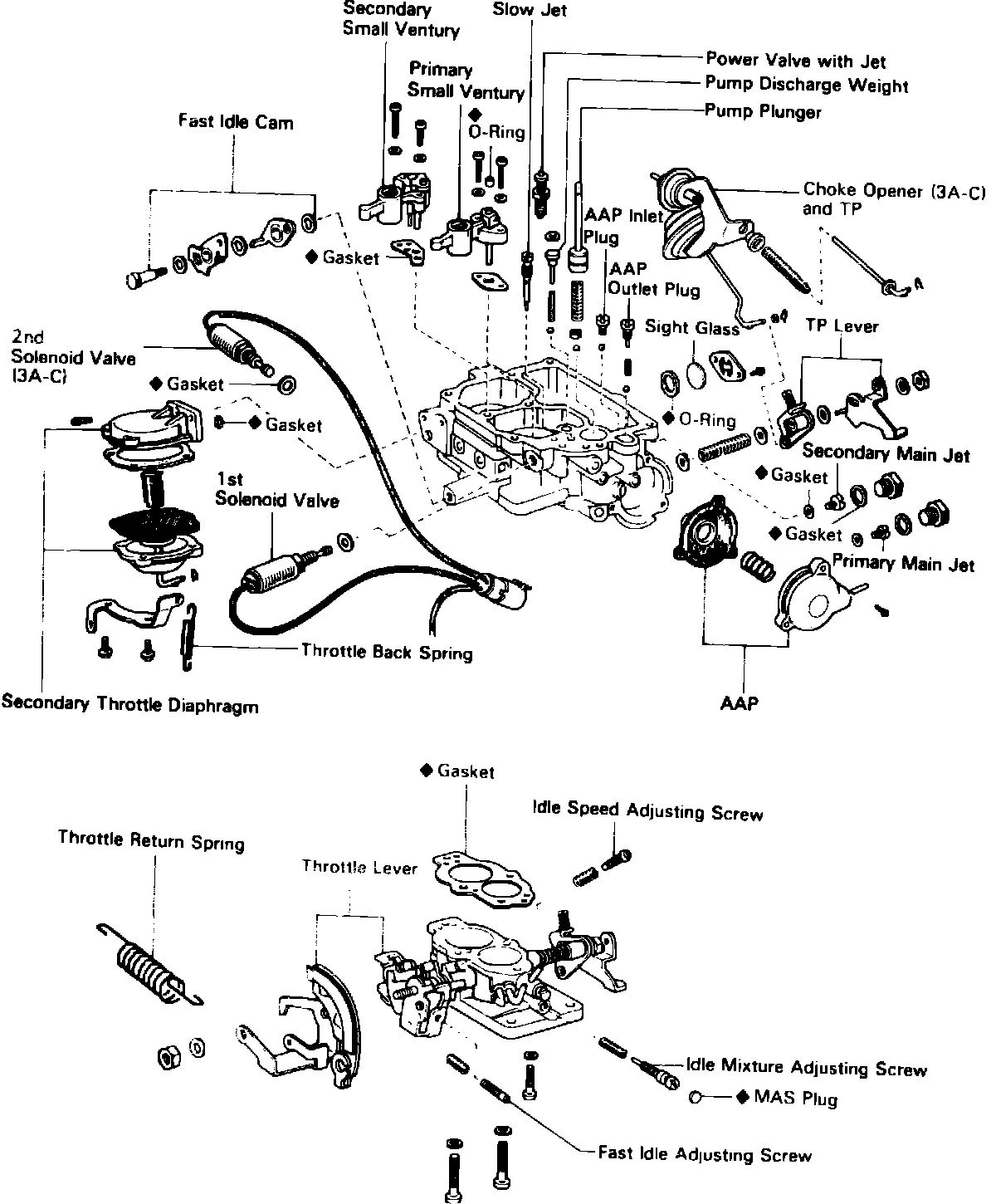

Fig. 1 Air horn assembly exploded view.:




Fig. 2 Main & throttle body assemblies exploded view.:
