On-Vehicle Repair

REMOVAL OF GOVERNOR VALVE
1. REMOVE TRANSAXLE DUST COVER
2. REMOVE LH DRIVE SHAFT

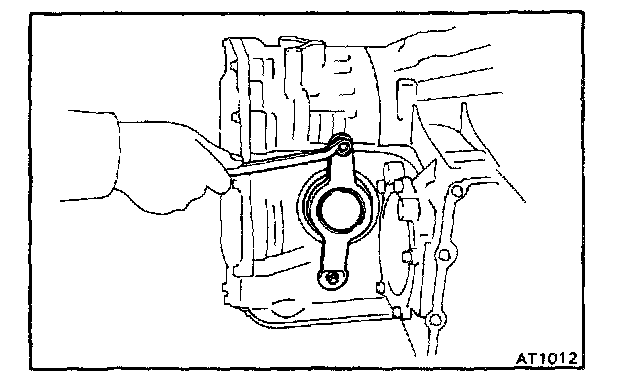

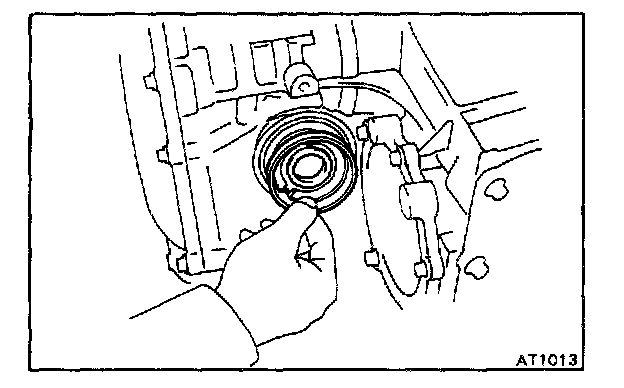

3. REMOVE GOVERNOR COVER AND O-ring

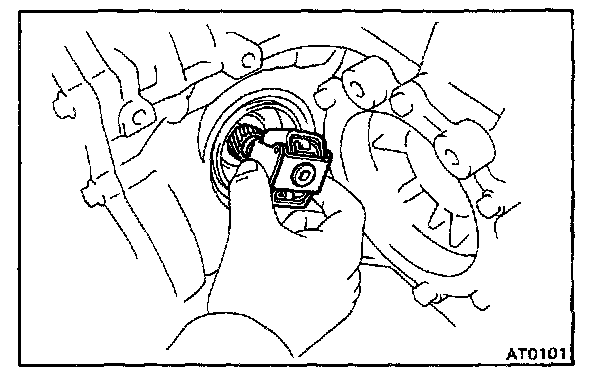

4. REMOVE GOVERNOR BODY WITH THRUST WASHER
5. REMOVE WASHER




6. REMOVE GOVERNOR BODY ADAPTOR

INSTALLATION OF GOVERNOR VALVE
1. INSTALL GOVERNOR BODY ADAPTOR




2. INSTALL GOVERNOR BODY WITH THRUST WASHER
a. Install the plate washer to the governor body.
b. Install the governor body with thrust washer.




3. INSTALL GOVERNOR COVER WITH O-ring
4. INSTALL LH DRIVE SHAFT
5. INSTALL TRANSAXLE DUST COVER
