Neutral Start Switch

ADJUSTMENT OF NEUTRAL START SWITCH



If the engine will start with the shift selector in any range other than N or P range, adjustment is required.

1. LOOSEN NEUTRAL START SWITCH BOLTS AND SET SHIFT SELECTOR IN N RANGE
2. ADJUST NEUTRAL START SWITCH
a. Disconnect the neutral start switch connector.

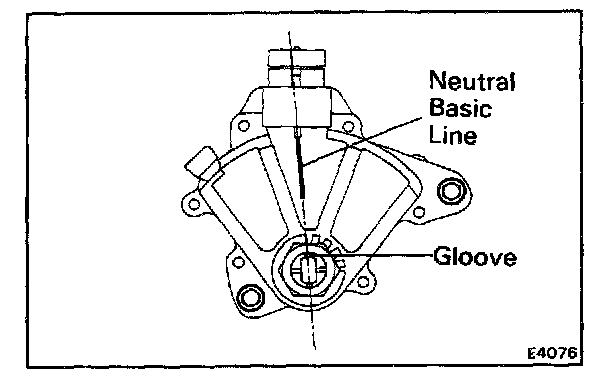

b. Align the groove and neutral basic line.

3. TORQUE NEUTRAL START SWITCH BOLTS

Torque: 55 kg-cm (48 in.-lb, 5.4 N.m)
