Home
>>
Toyota
>>
1987
>>
Tercel Sedan L4-1456cc 1.5L SOHC (3E)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Exc. Wagon
Exc. Wagon

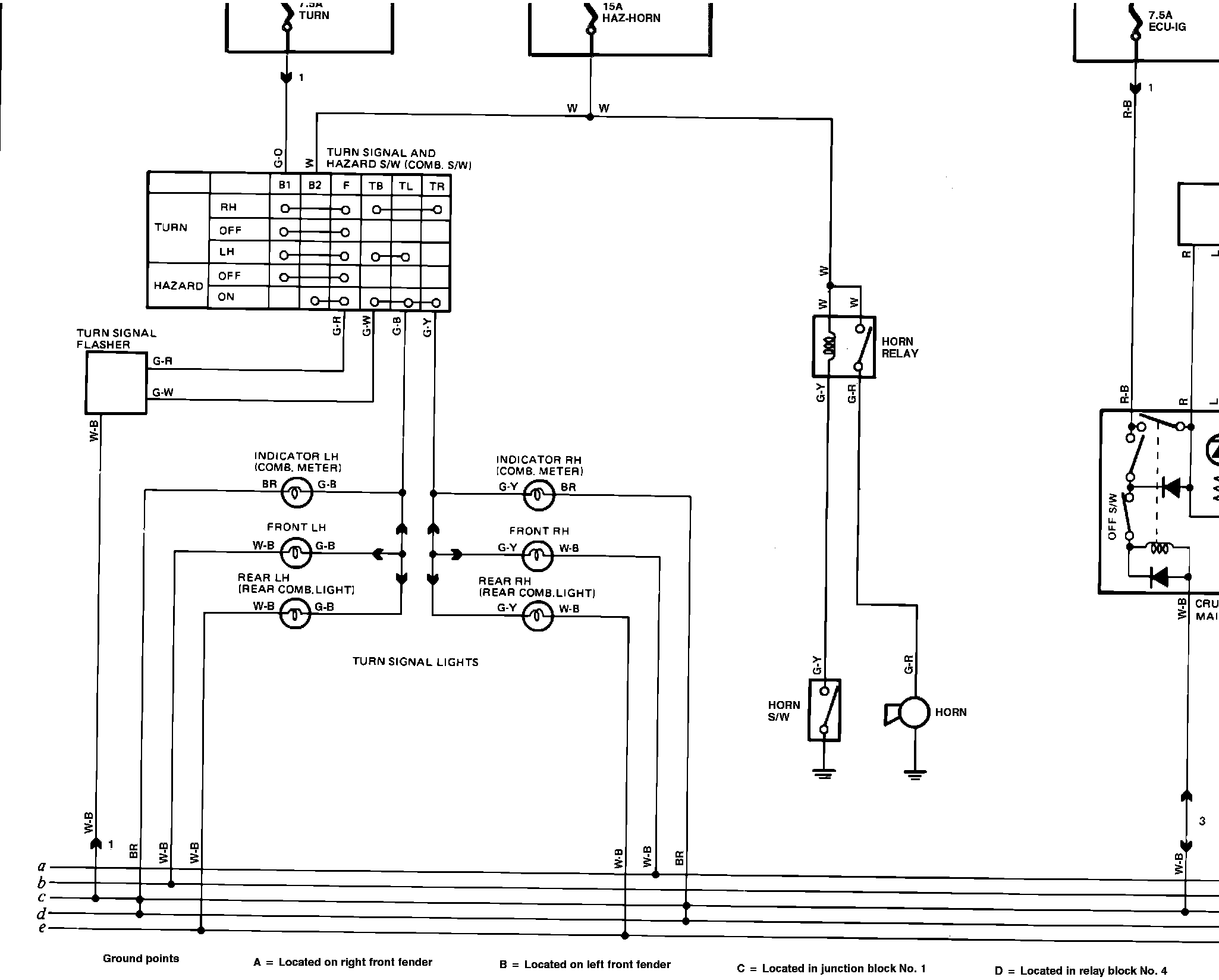

�R/�bJf�piwhFig. 9c complete body & chassis wiring:
