Wipers - Linkage Modified
REFERENCE: BODYNUMBER: 001
DATE: 05-22-87
MODEL: ALL
TITLE WIPER LINKAGE

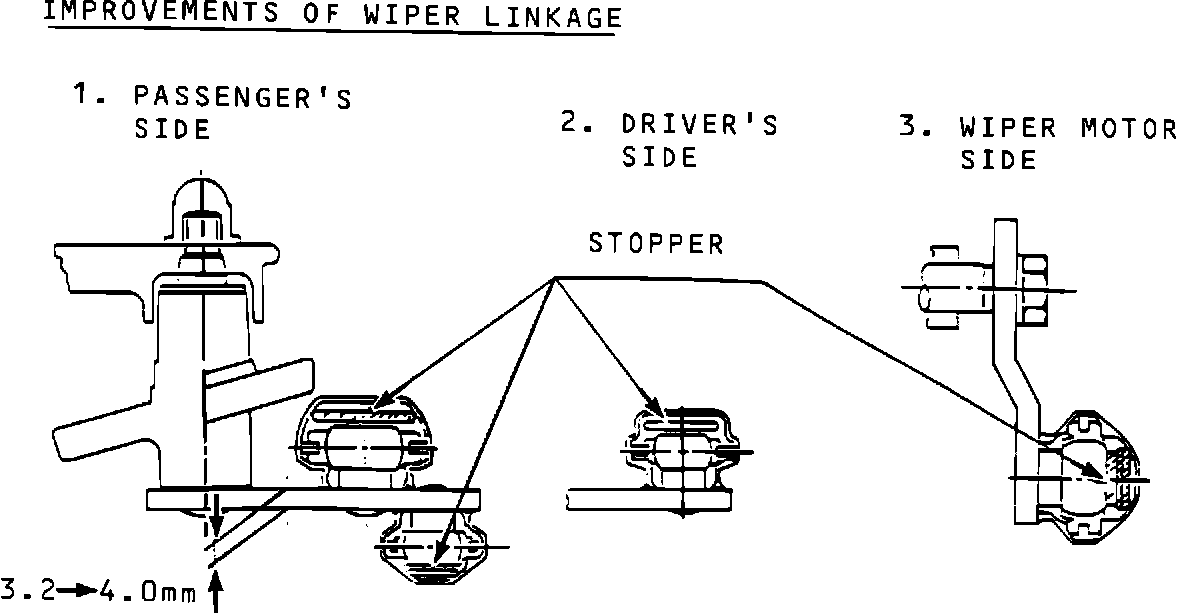

To increase rigidity of the wiper linkage, the ball socket joint has been revised as shown below:
PRODUCTION EFFECTIVE:
FROM VIN PRODUCTION EFFECTIVE
JT2MA7##*H0000145 JANUARY, 1986
JT2SV2##*H3000026 AUGUST, 1986
JT2SV2##*H0000244 AUGUST, 1986
JT2EL3##*H0023256 AUGUST, 1986
INXAE87GHZ400002 AUGUST, 1986
INXAE89GHZ400002 AUGUST, 1986
JT2MX72W*H0008191 SEPTEMBER, 1986
JT2MX73E*H0104934 SEPTEMBER, 1986
JT2AE82#*H3436902 SEPTEMBER, 1986
JT2AE83E*H3436902 SEPTEMBER, 1986
JT2AE86#*H0249038 SEPTEMBER, 1986
JT2AE88S*H0249038 SEPTEMBER, 1986
JT2AW15#*H0094619 SEPTEMBER, 1986
JT2AL32V*H3667649 SEPTEMBER, 1986
JT2AL3#W*H0261117 SEPTEMBER, 1986
JT2ST6##*H7069804 SEPTEMBER, 1986
JT4RN50R*H0225046 SEPTEMBER, 1986
JT4RN55#*H0232281 SEPTEMBER, 1986
JT4RN55#*H7008614 SEPTEMBER, 1986
JT4RN63#*H0096187 SEPTEMBER, 1986
JT4RN63#*H5020516 SEPTEMBER, 1986
JT3RN6##*H0096187 SEPTEMBER, 1986
JT3RN6##*H5020516 SEPTEMBER, 1986
JT4RN6##*H5049457 SEPTEMBER, 1986
JT4RN70#*H0028866 SEPTEMBER, 1986
JT4RN75#*H0011141 SEPTEMBER, 1986
JT3FJ60G*H0135897 SEPTEMBER, 1986

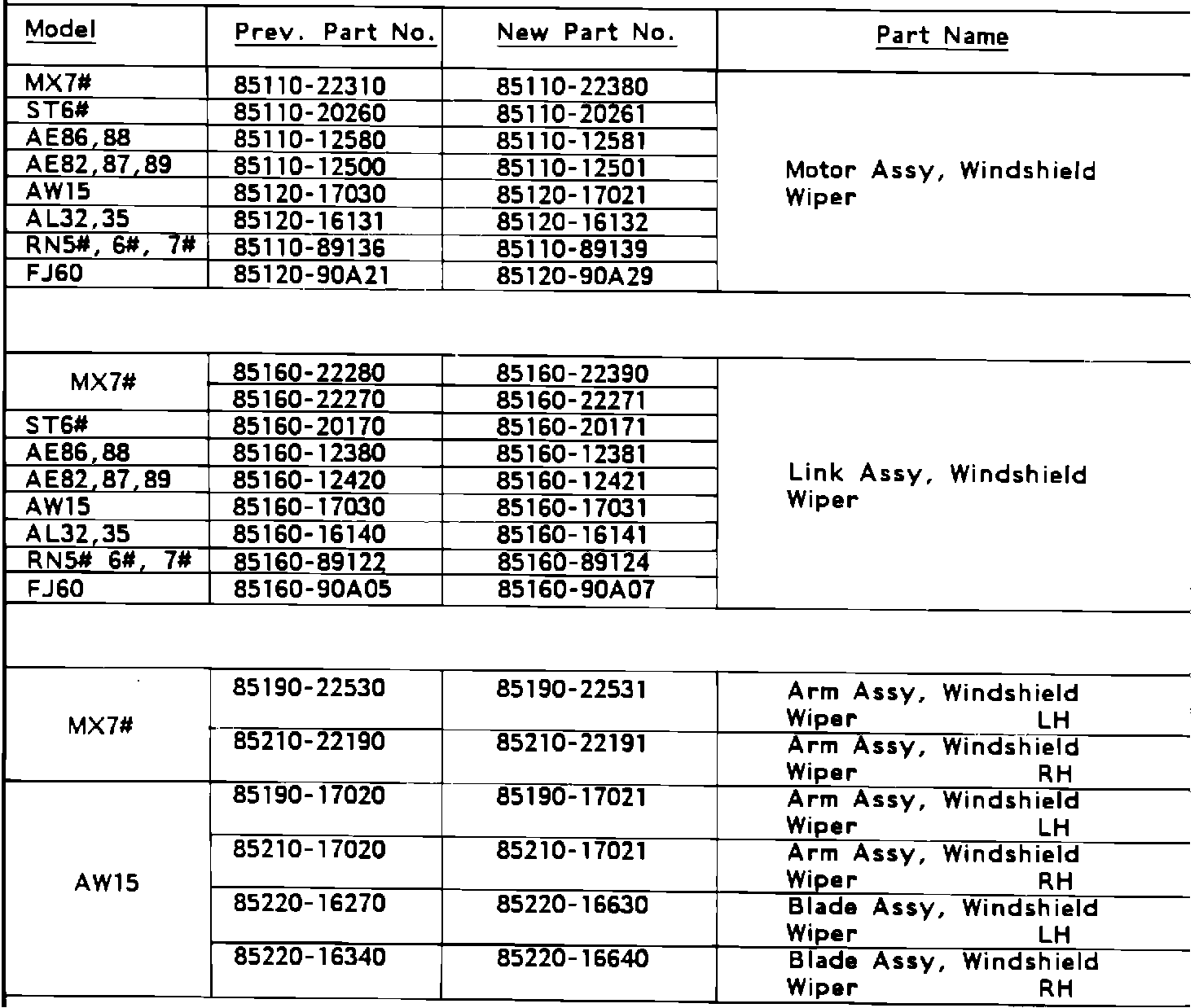

PART NUMBER INFORMATION
NOTE New Motor Assembly, Link Assembly and Arm Assembly are interchangeable as a set only.
