Exterior Trim - Lower Quarter Panel Mudguard Modified

REFERENCE BODY
NUMBER 040
DATE 1-16-87
MODEL MA70

TITLE - SUPRA LOWER QUARTER PANEL MUDGUARD:

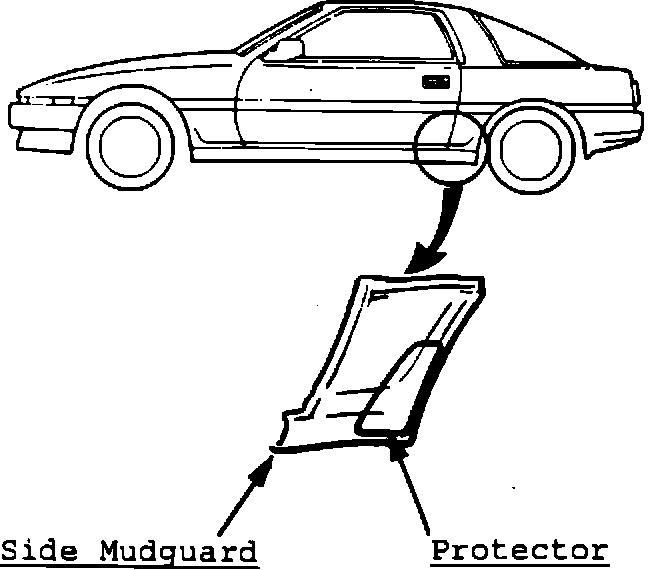

Lower Quarter Panel Mudguard:

To increase durability of the lower quarter panel mudguard against road debris and stone chipping, a transparent anti-chip protector has been adopted.

NOTE: When the anti chip protector is applied to the lower quarter panel mudguard, apply water to the back side of the protector to facilitate removal of air bubbles or wrinkles between the mudguard and the protector.

PRODUCTION EFFECTIVE:

FROM VIN PRODUCTION DATE

JT2MA7#**H0028393 July, 1986

NOTE: If the surface of the painted mudguard is severely pitted, a replacement of the part with a now pre-painted one may be necessary. Mudguard parts nos. are listed below:


PART NUMBER INFORMATION:

Previous Part Number New Part Number Part Name

--- 58741-14040 Protector, Quarter Panel, RH
--- 58742-14040 Protector, Quarter Panel, LH
NOTE: Now part can be used on new and previous vehicles.

76901-14010-## 76901-14011-## Mudguard Sub Assy, Side, RH
76902-14010-## 76902-14011-## Mudguard Sub Assy, Side, LH


##: Color Classification No.

## Color Name (Code)

01 Black M. (204)
02 Red Mica (3H1)
03 Amethyst Silver M. (920)
06 Medium Brown M. (4H1, 27A)
08 Super White II (040)
12 Maroon M. (3H2)
14 Medium Blue M. (8D4)
18 White Pearl Mica (042)
34 Light Blue M. (8C7)
44 Blue Mica (8E3)
54 Medium Blue M. (24D)
