Doors - Lock Control Knob Bezel Tab Modified
REFERENCE BODY NUMBER 041 REVISEDDATE 03-27-87
MODEL MA, ST
TITLE DOOR LOCK CONTROL KNOB BEZEL
Door Lock Control Knob Bezel:

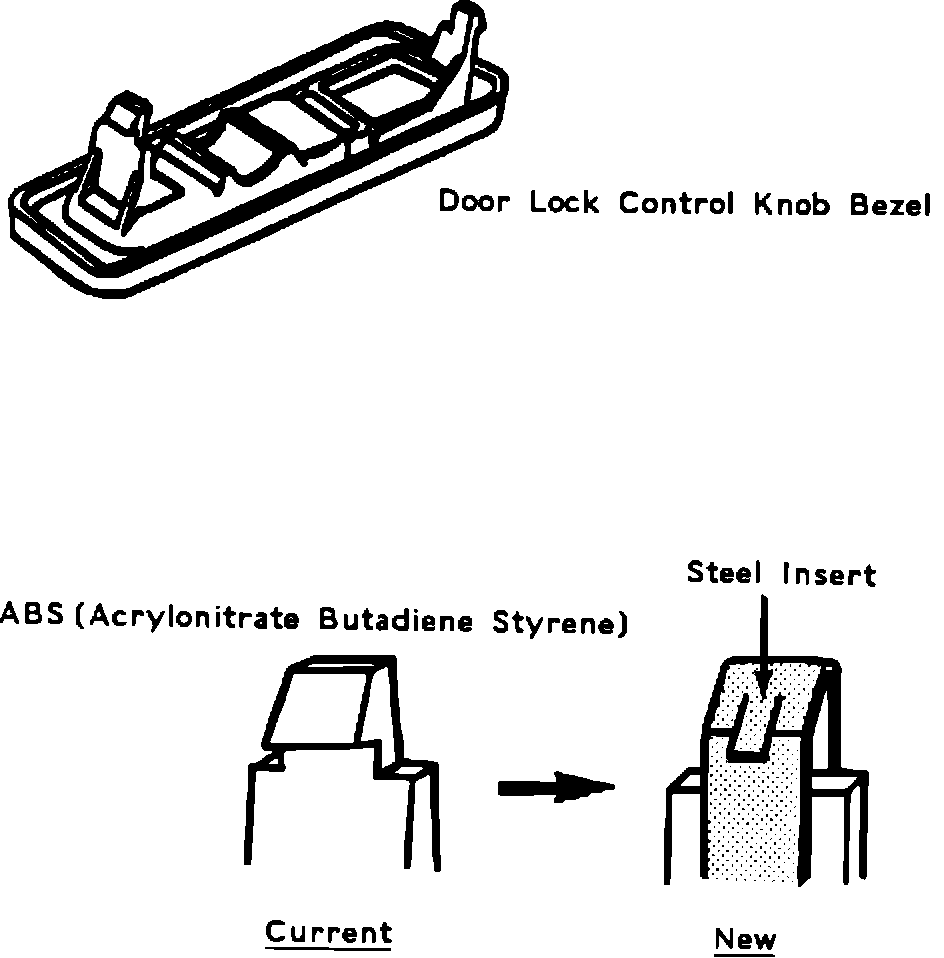

To improve durability of the door lock control knob bezel, the shape of the tab has been modified and a steel insert has been added as shown below.
Change In The Door Lock Bezel:
Due to a design change in the door lock bezel, the removal method is different from the illustrations shown in the 1987 Supra and Celica Repair manuals.

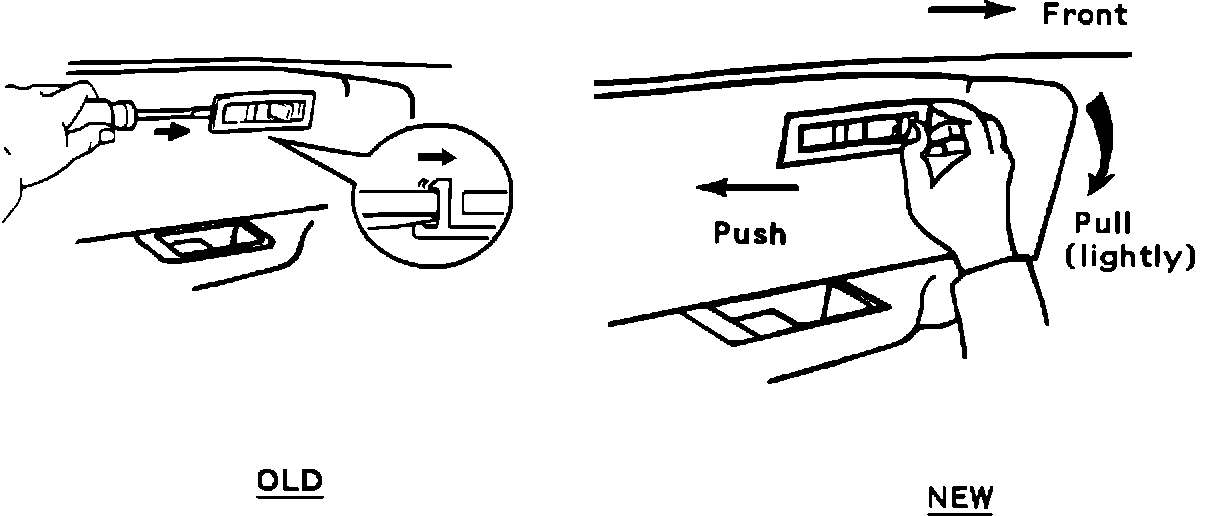

REMOVAL METHOD OF THE REVISED BEZEL:
To remove the door lock bezel, pull it outward lightly from the front, then push rearward to remove.
NOTE: Do not pry it out with a screwdriver as the bezel metal tabs may be damaged.
PRODUCTION EFFECTIVE:
FROM VIN PRODUCTION DATE
JT2MA7##*H0041197 November, 1986
JT2ST6##*H7098091 November, 1986
PART NAME NEW PART NUMBER PREVIOUS PART NUMBER
* Bezel, Door Lock 69761-14010 - ** 69761-20040 - **
Control Knob, RH (W/Electromagnetic Lock)
* Bezel, Door Lock 69761-14020 - ** 69761-20050 - **
Control Knob, RH (W/O Electromagnetic Lock)
* Bezel, Door Lock 69762-14010 - ** 69762-20040 - **
Control Knob, LH (W/Electromagnetic Lock)
* Bezel, Door Lock 69762-14020 - ** 69762-20050 - **
Control Knob, LH (W/O Electromagnetic Lock)
* New part can be used on new and previous vehicles.
Note: ** - Color Code
Celica (ST) -02 Red
-03 Gray -04 Blue -06 Brown
Supra (MA) -04 Blue
-05 Beige -12 Maroon -13 Grey
