Inspection of Diagnosis Circuit
Inspection of Diagnosis Circuit

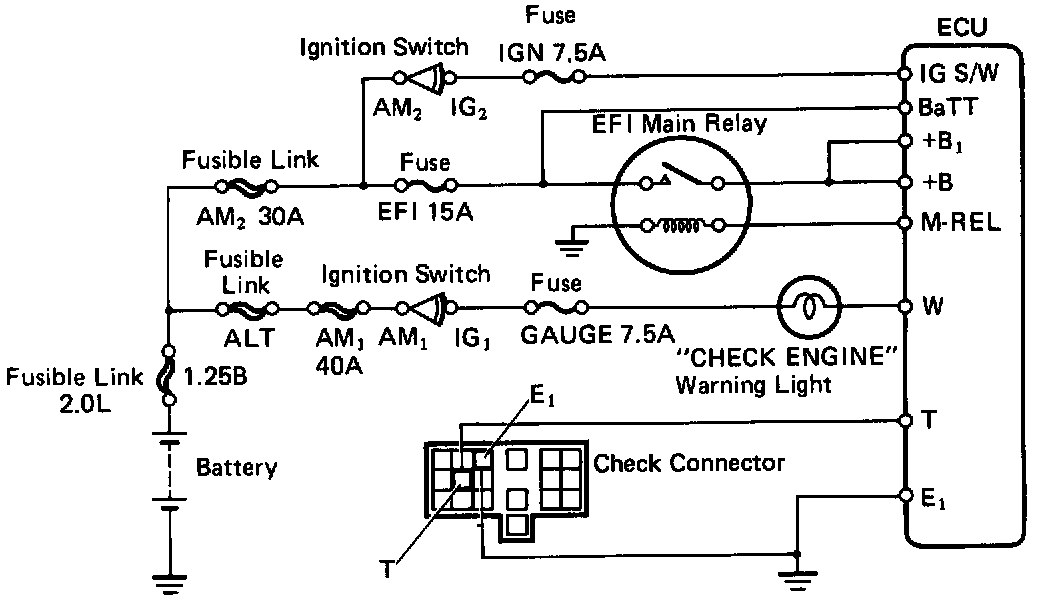

Diagnosis Circuit:

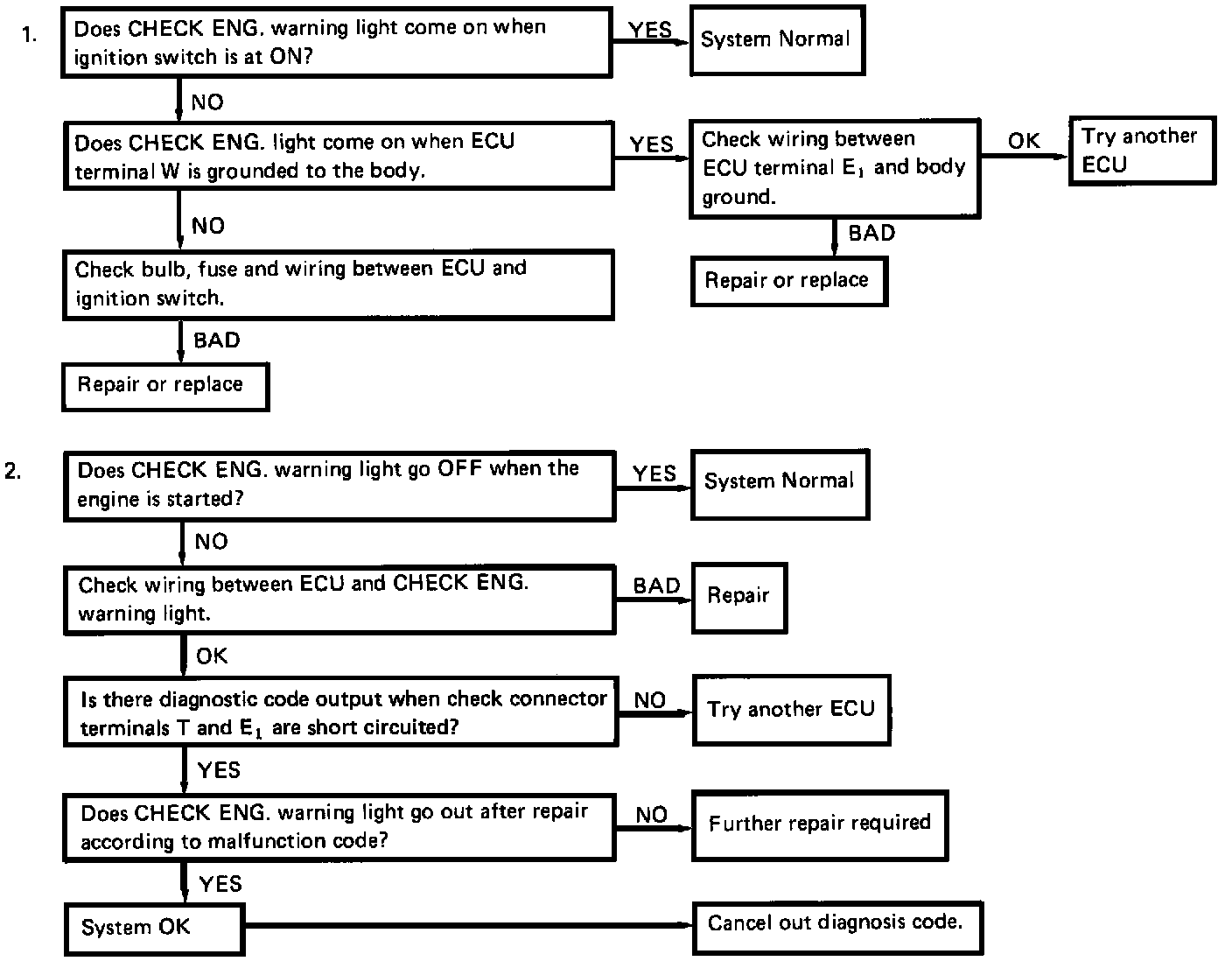

Diagnosis Circuit Tests:
