Home
>>
Toyota
>>
1987
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>

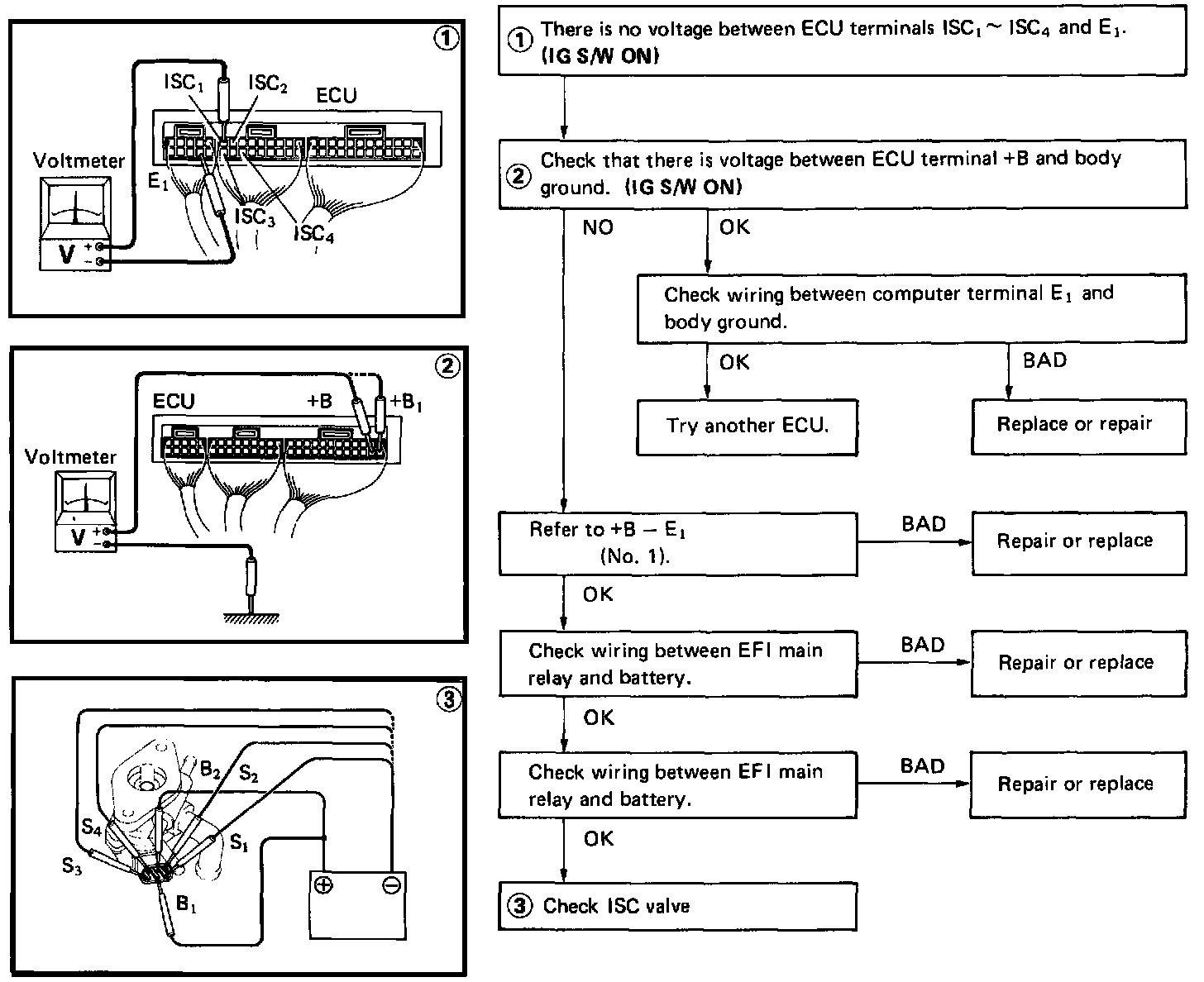

Chart 10
Chart 10
No. 10
