Home >> Toyota >> 1987 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Wiring Diagram

Wiring Diagram

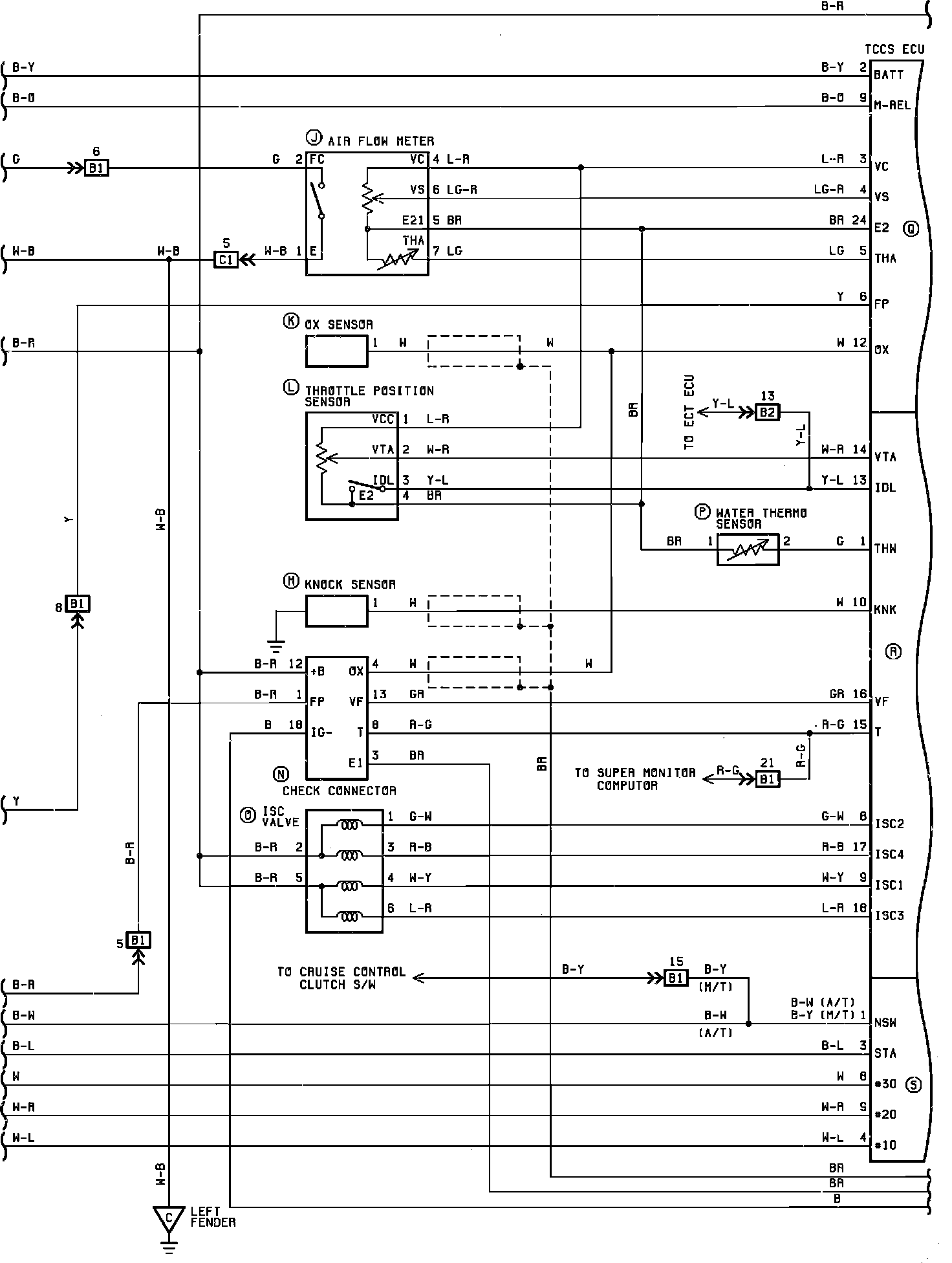

Fig. 190 EFI Wiring Diagram.:

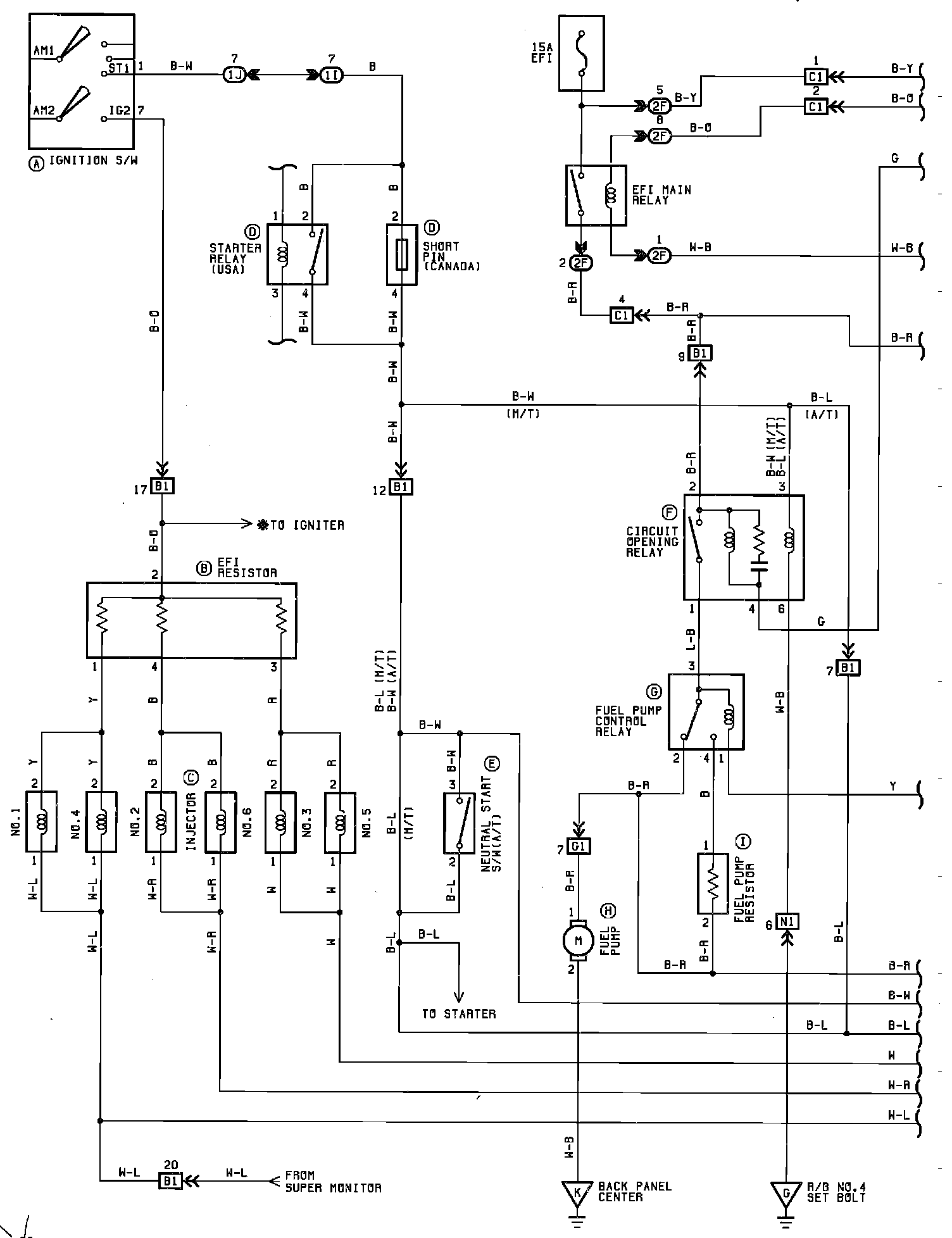

Fig. 191 EFI Wiring Diagram.:

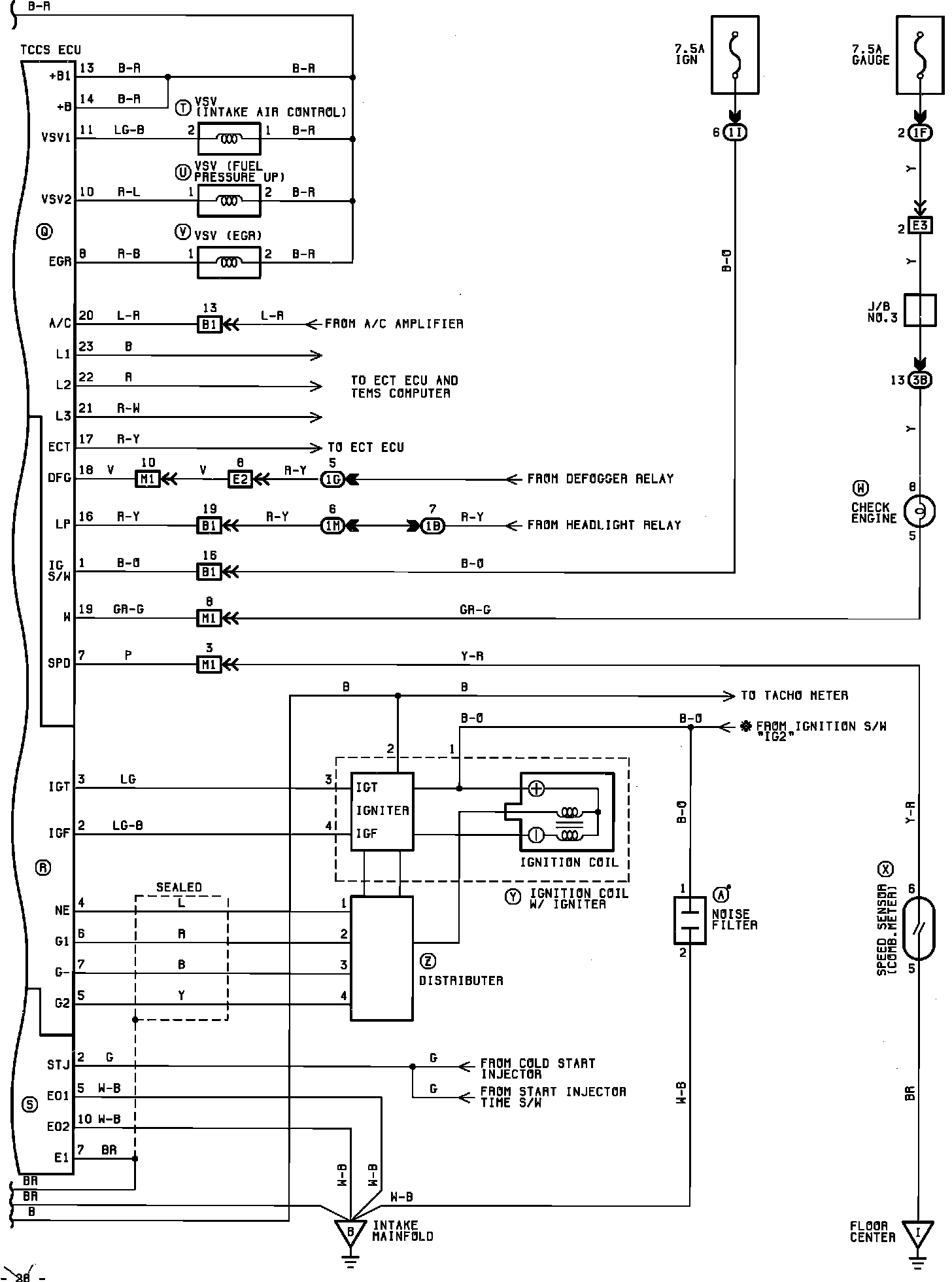

Fig. 192 EFI Wiring Diagram.:

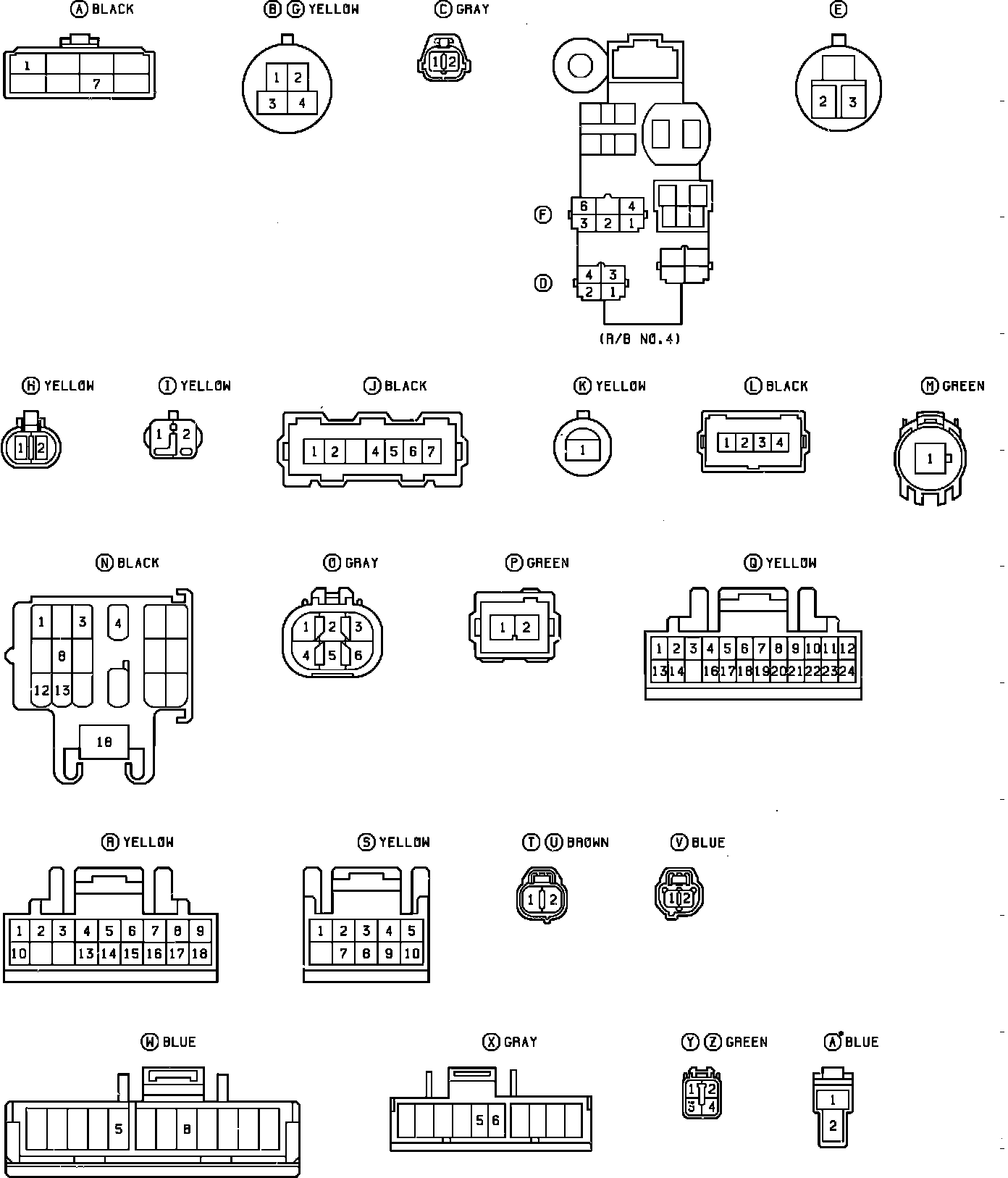

Fig. 193 EFI Wiring Diagram.:

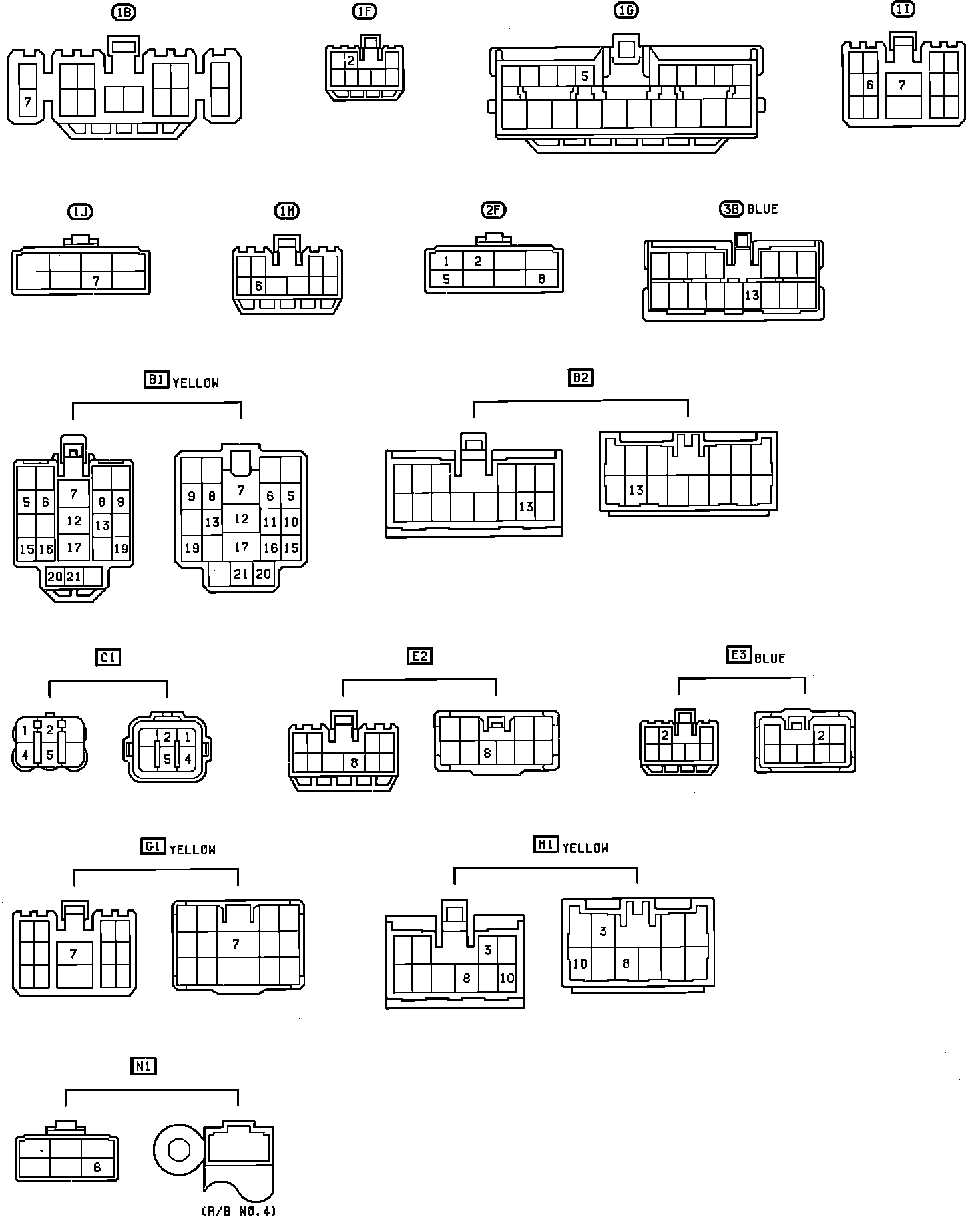

Fig. 194 EFI Wiring Diagram.:

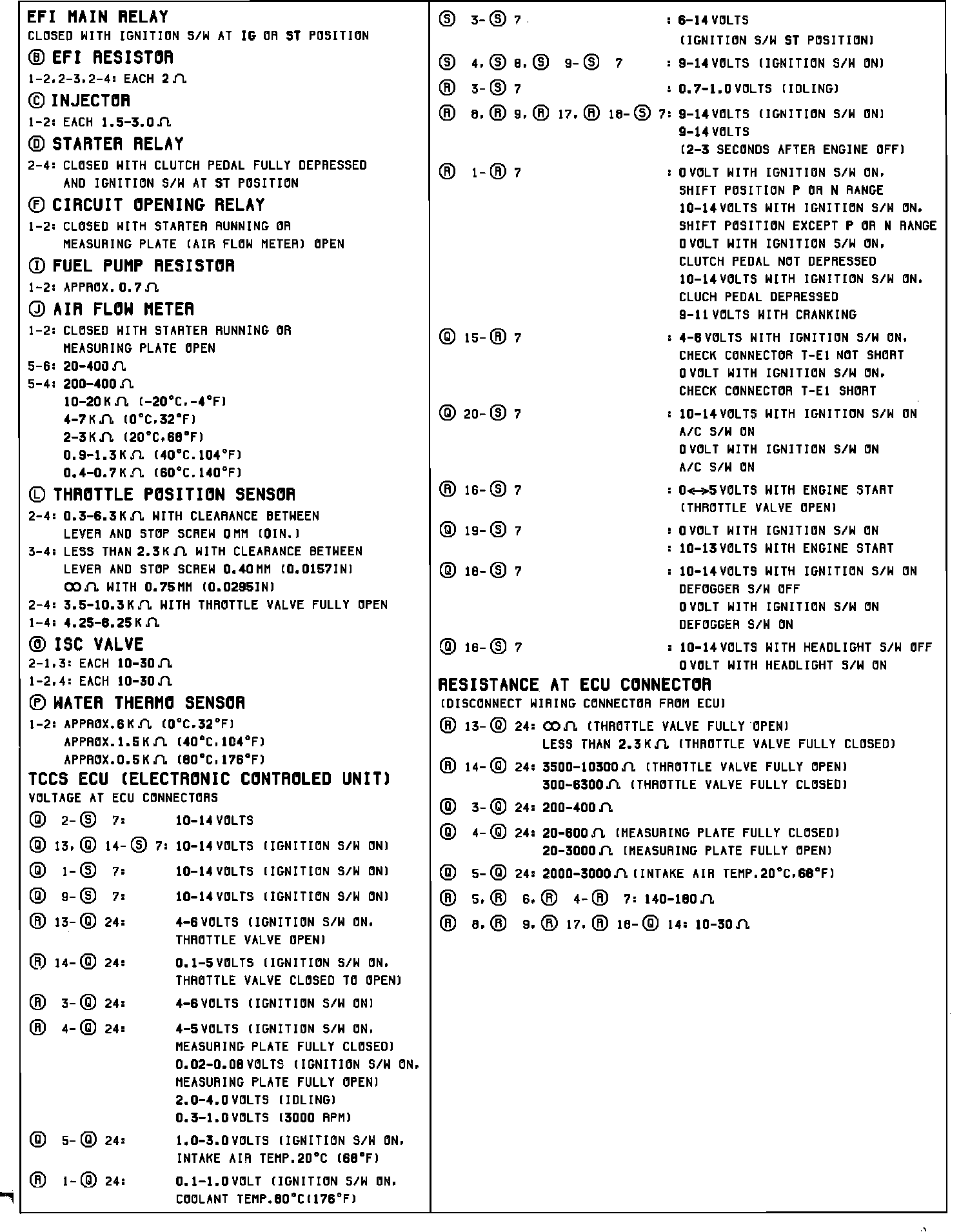

Fig. 195 EFI Wiring Diagram.:
