Home
>>
Toyota
>>
1987
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Overdrive Assembly, A/T
>>

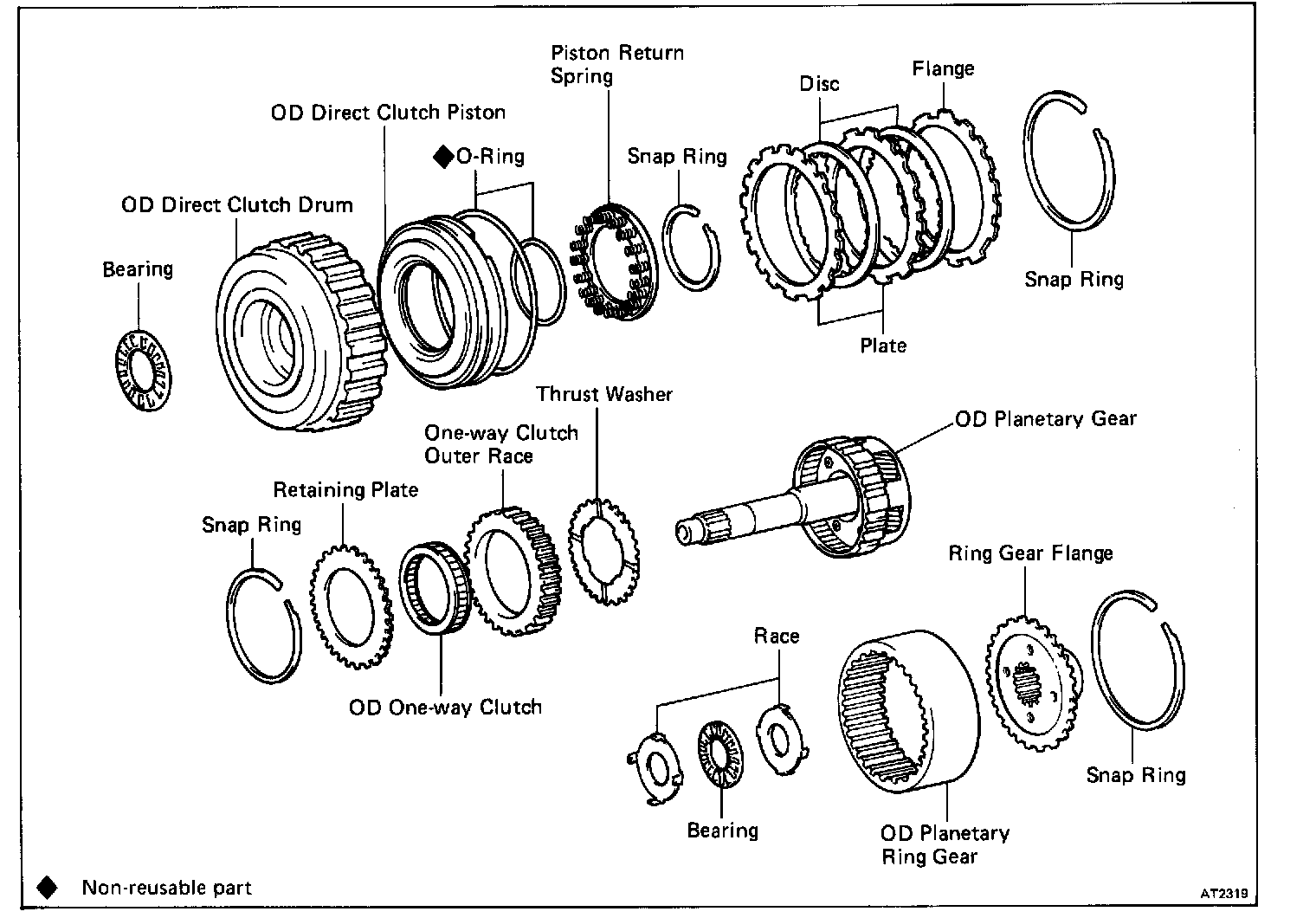

Overdrive Planetary Gear and Overdrive Direct Clutch (C(0))
Overdrive Planetary Gear and Overdrive Direct Clutch (C(0))
