Toyota
>>
1987
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

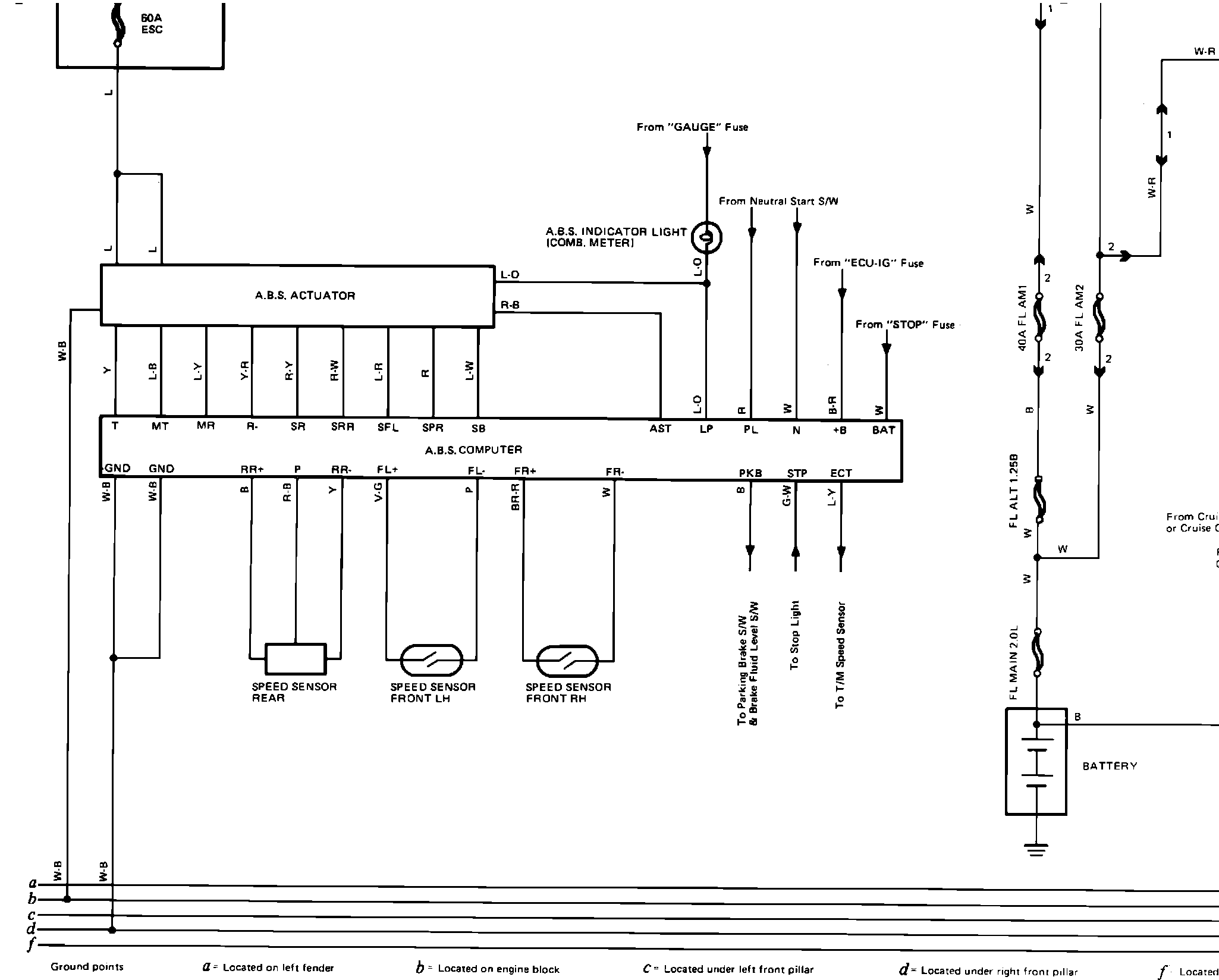

Wiring Schematic
Wiring Schematic
��?�@�E@iP@ W@�\@�_@Fig. 8h complete body & chassis wiring:
