Control Module: Testing and Inspection

ELECTRONIC CONTROLLED TRANSAXLE (ECT) COMPUTER TERMINAL VOLTAGE INSPECTION.
- Remove the luggage compartment panel.
- Turn on the ignition switch.

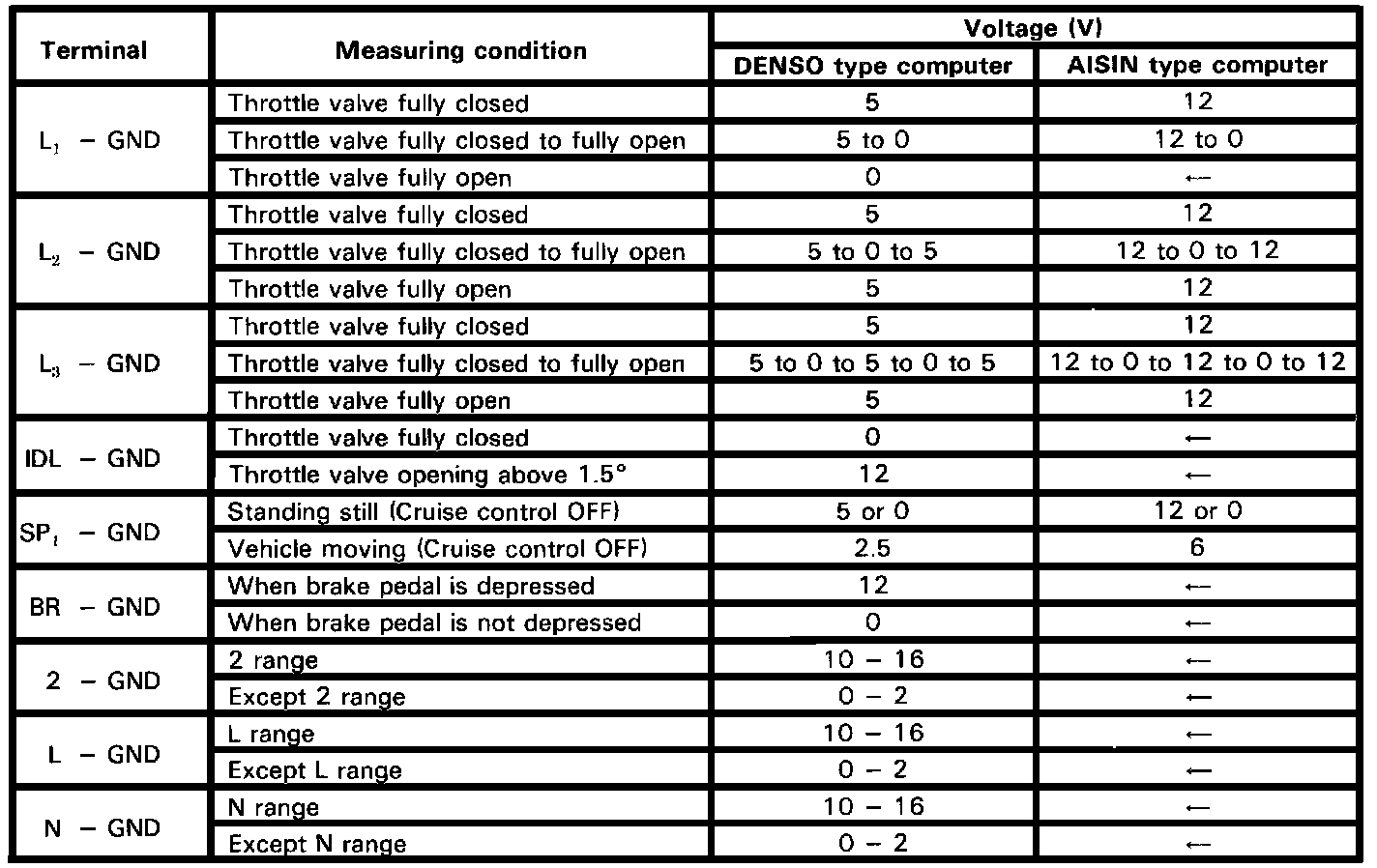

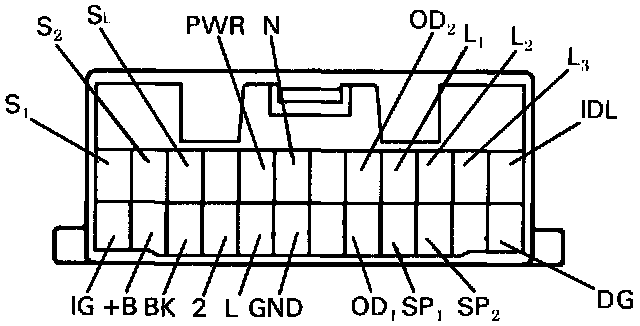

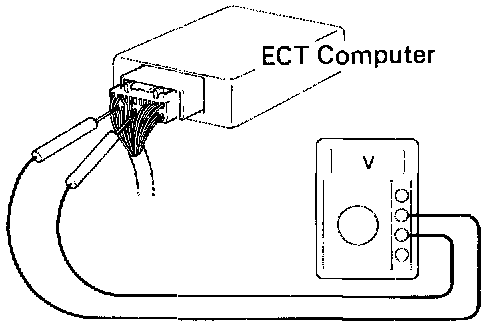

- Measure the voltage at each terminal.
