Intermediate Shaft

COMPONENTS

REPLACEMENT OF INTERMEDIATE SHAFT

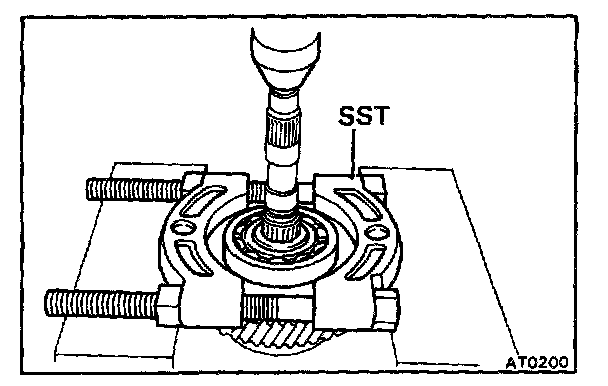

1. REMOVE INTERMEDIATE SHAFT FRONT BEARING
Using SST, press Out the bearing.
SST 09555-55010

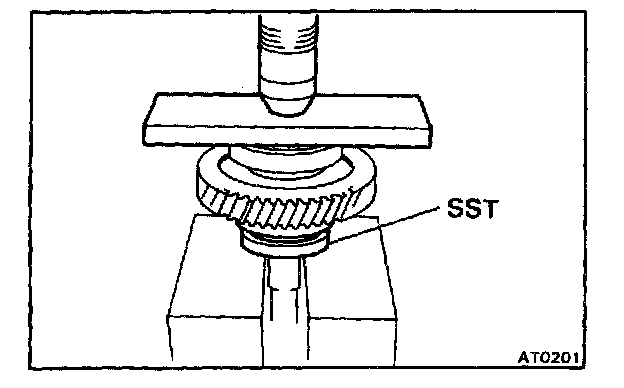

2. INSTALL INTERMEDIATE SHAFT FRONT BEARING
Using SST, press in a new bearing.
SST 09350-32013 (09351-32120)

REPLACEMENT OF INTERMEDIATE SHAFT REAR BEARING

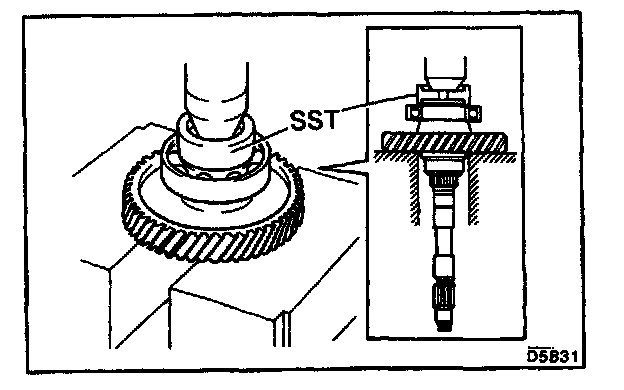

1. REMOVE INTERMEDIATE SHAFT REAR BEARING
Using SST, press out the bearing.
SST 09350-32013 (09351-32090) and 09555-55010

2. INSTALL INTERMEDIATE SHAFT REAR BEARING




a. Using SST, press in a new bearing.
SST 09350-32013 (09351-32150)




b. Check that the distance from the gear flange end to the intermediate shaft end should be about 115.8 mm (4.560 in.).
