MR2 L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>
Chart 6
Chart 6
No. 6

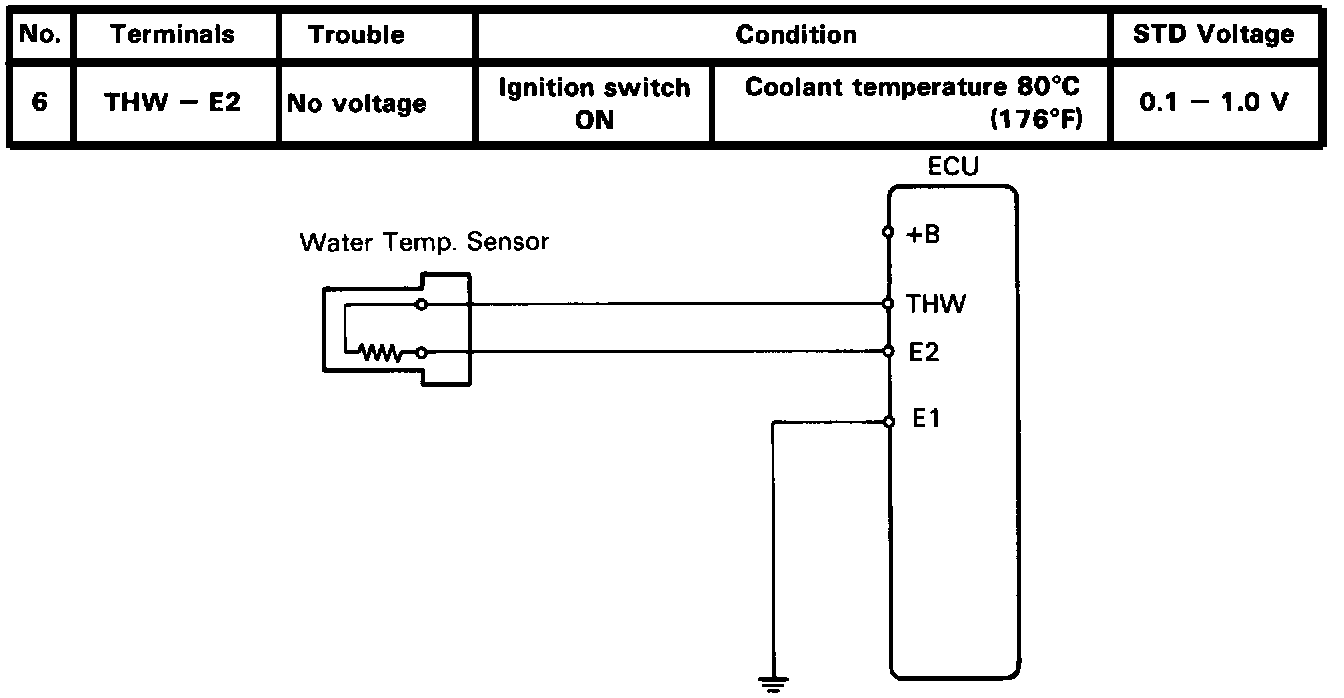

Test No. 6 Summary:
THW - E2:
