Home >> Toyota >> 1987 >> MR2 L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Wiring Diagram

Wiring Diagram

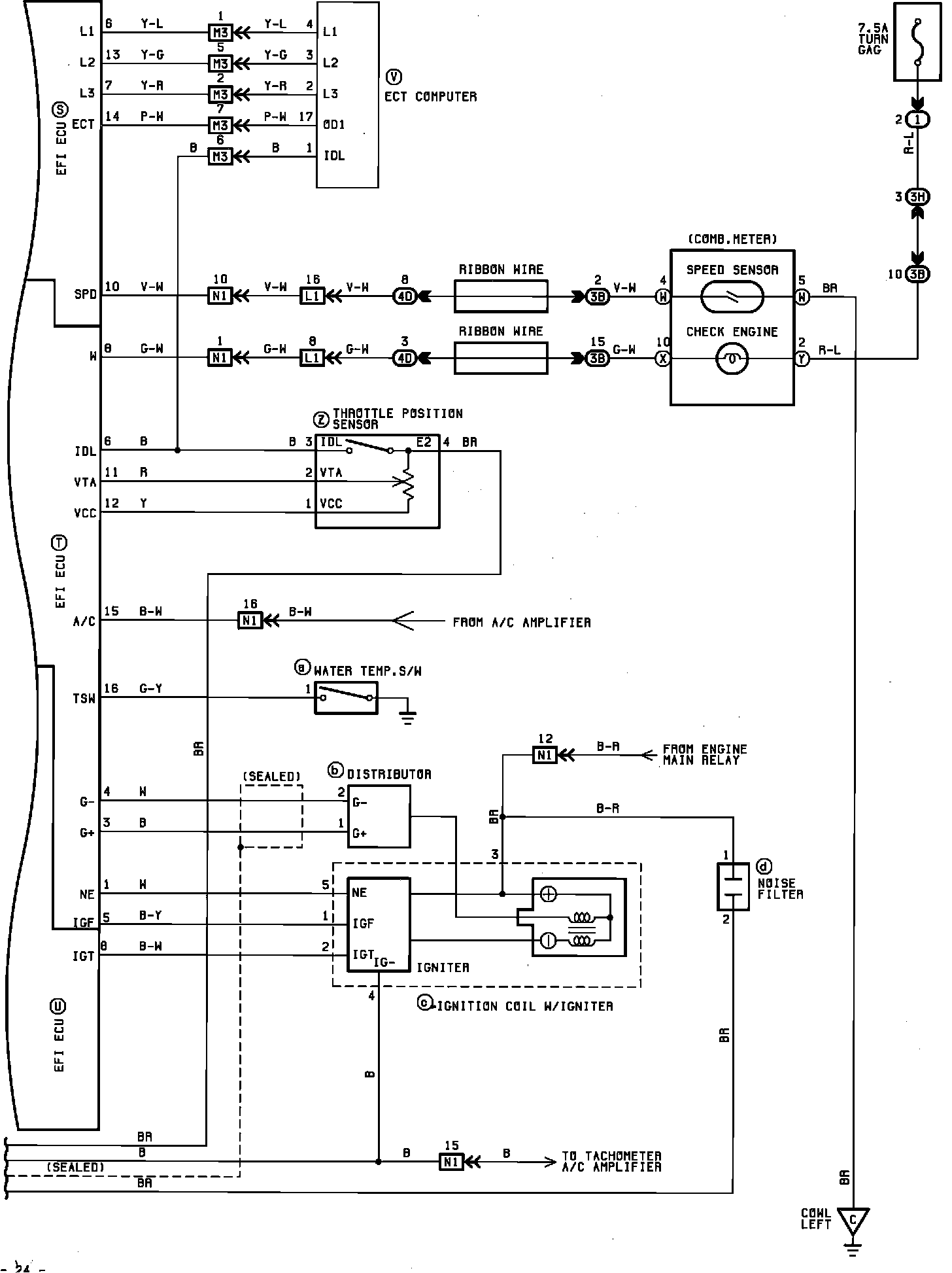

Fig. 196 EFI Wiring Diagram.:

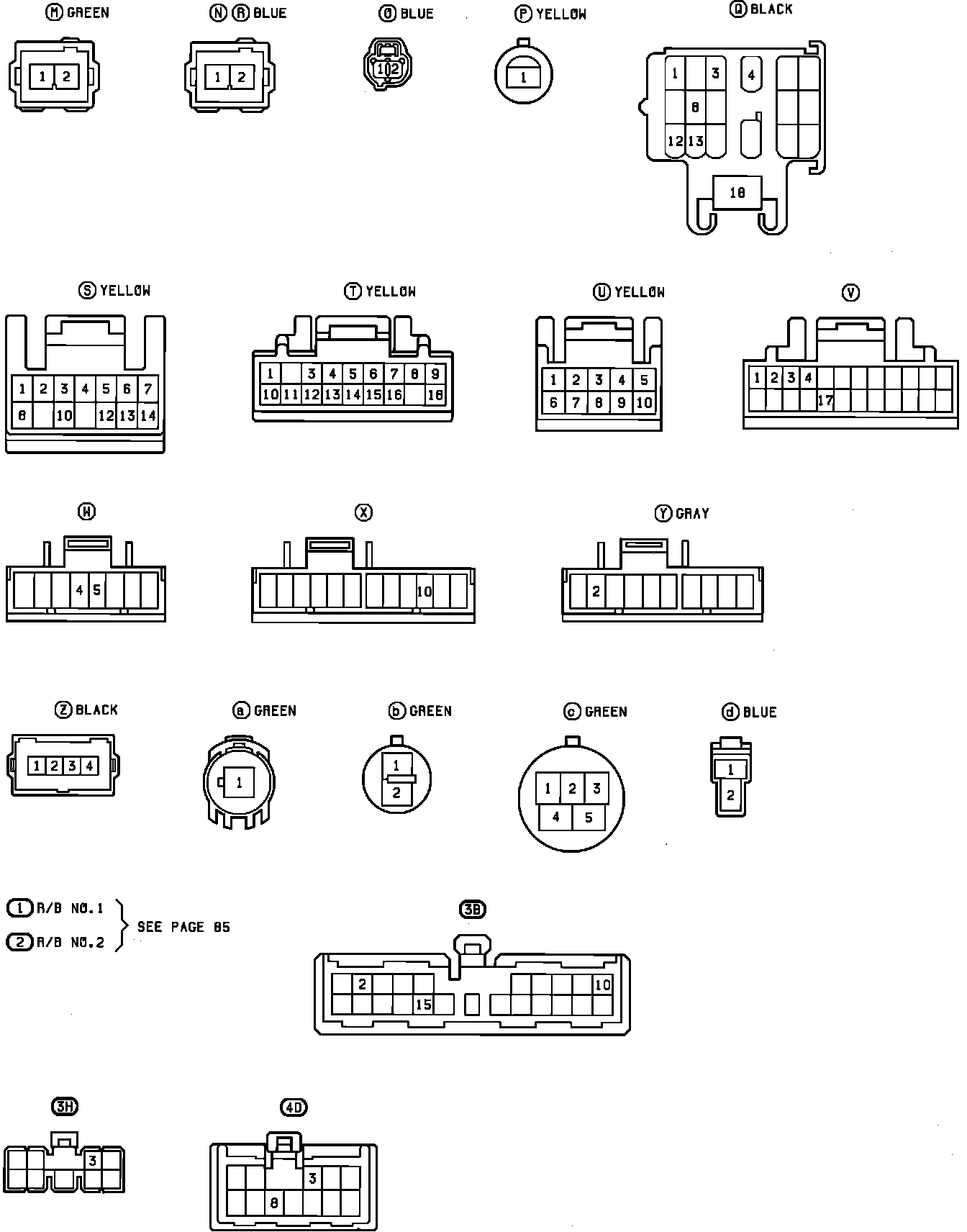

Fig. 197 EFI Wiring Diagram.:

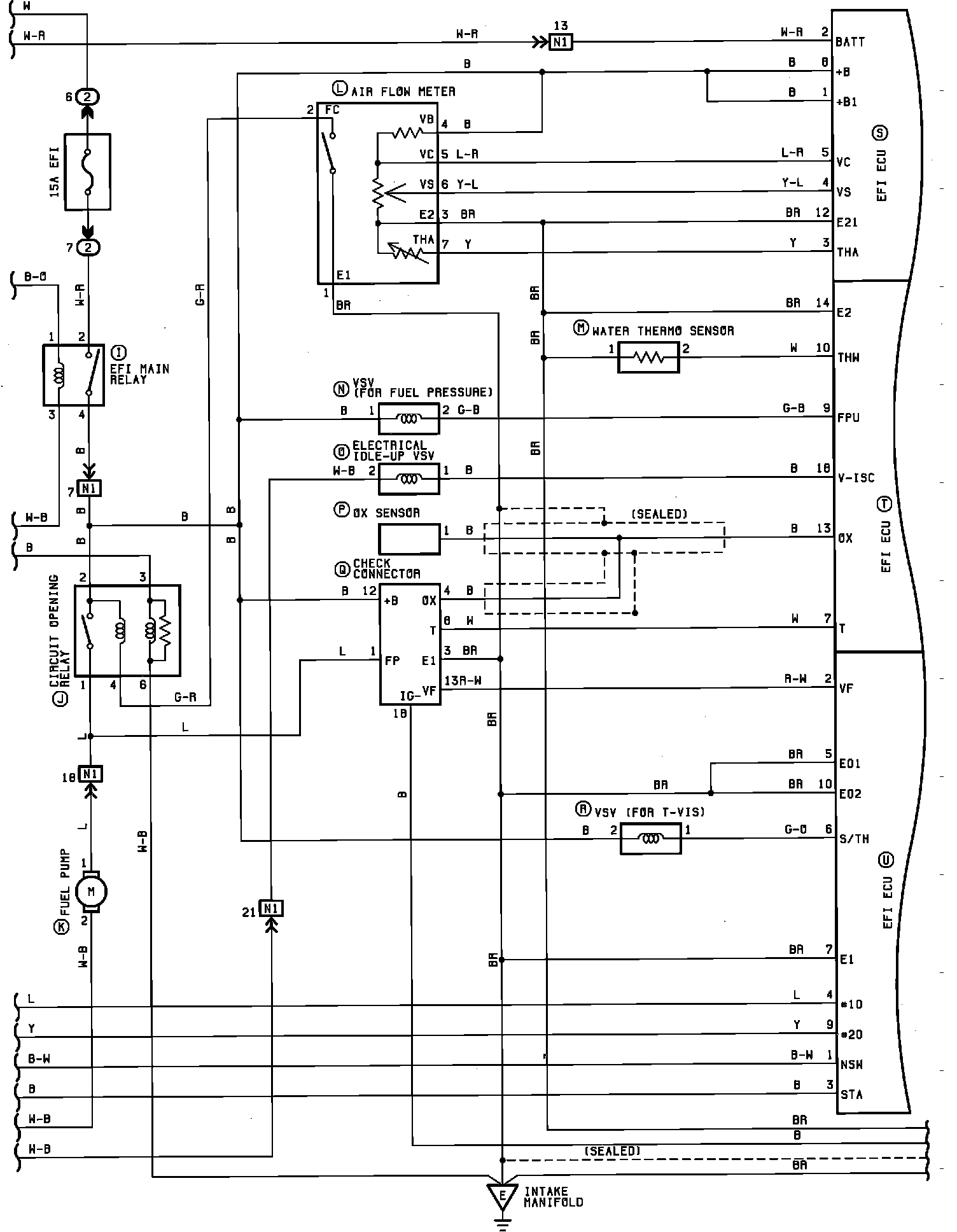

Fig. 198 EFI Wiring Diagram.:

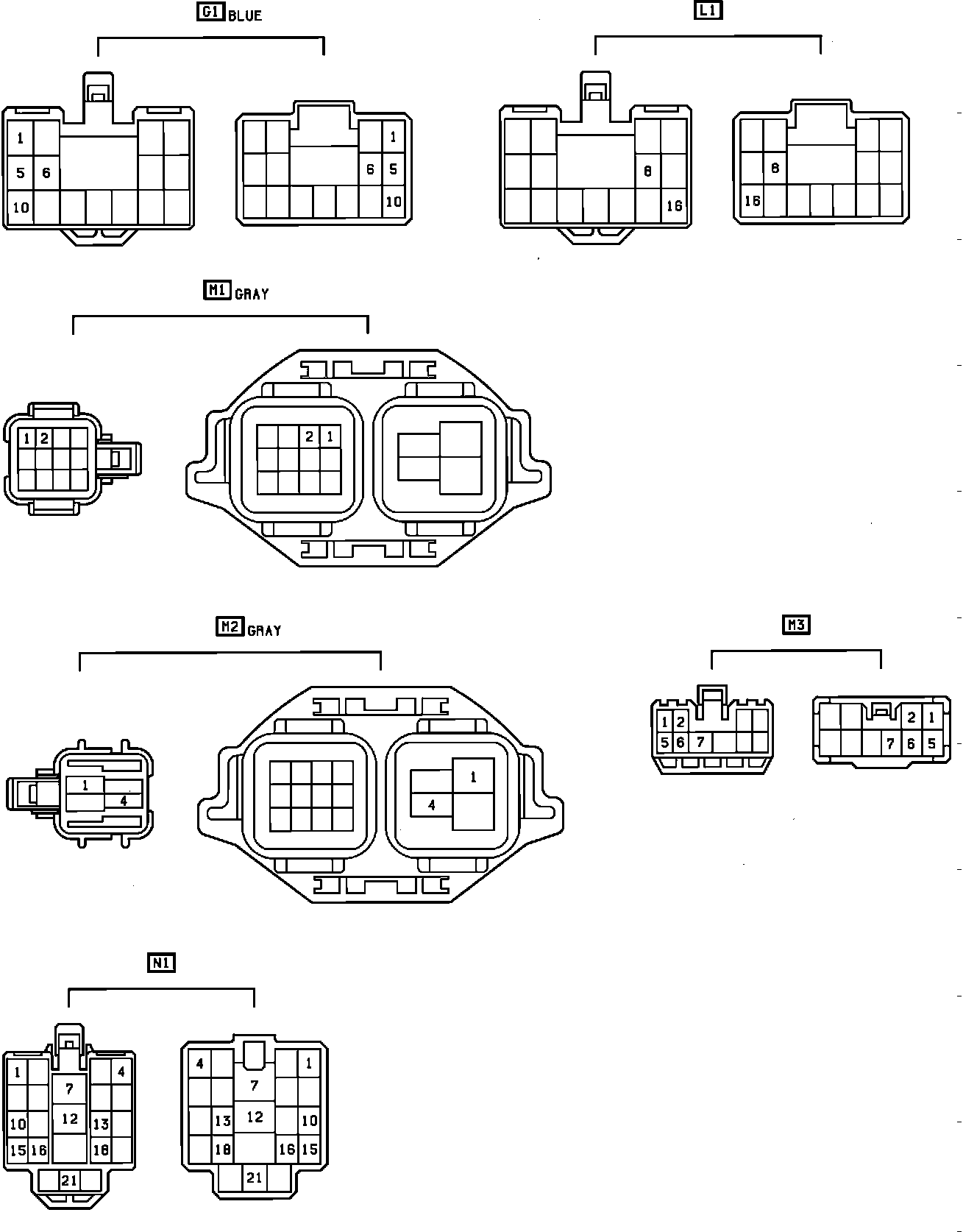

Fig. 199 EFI Wiring Diagram.:

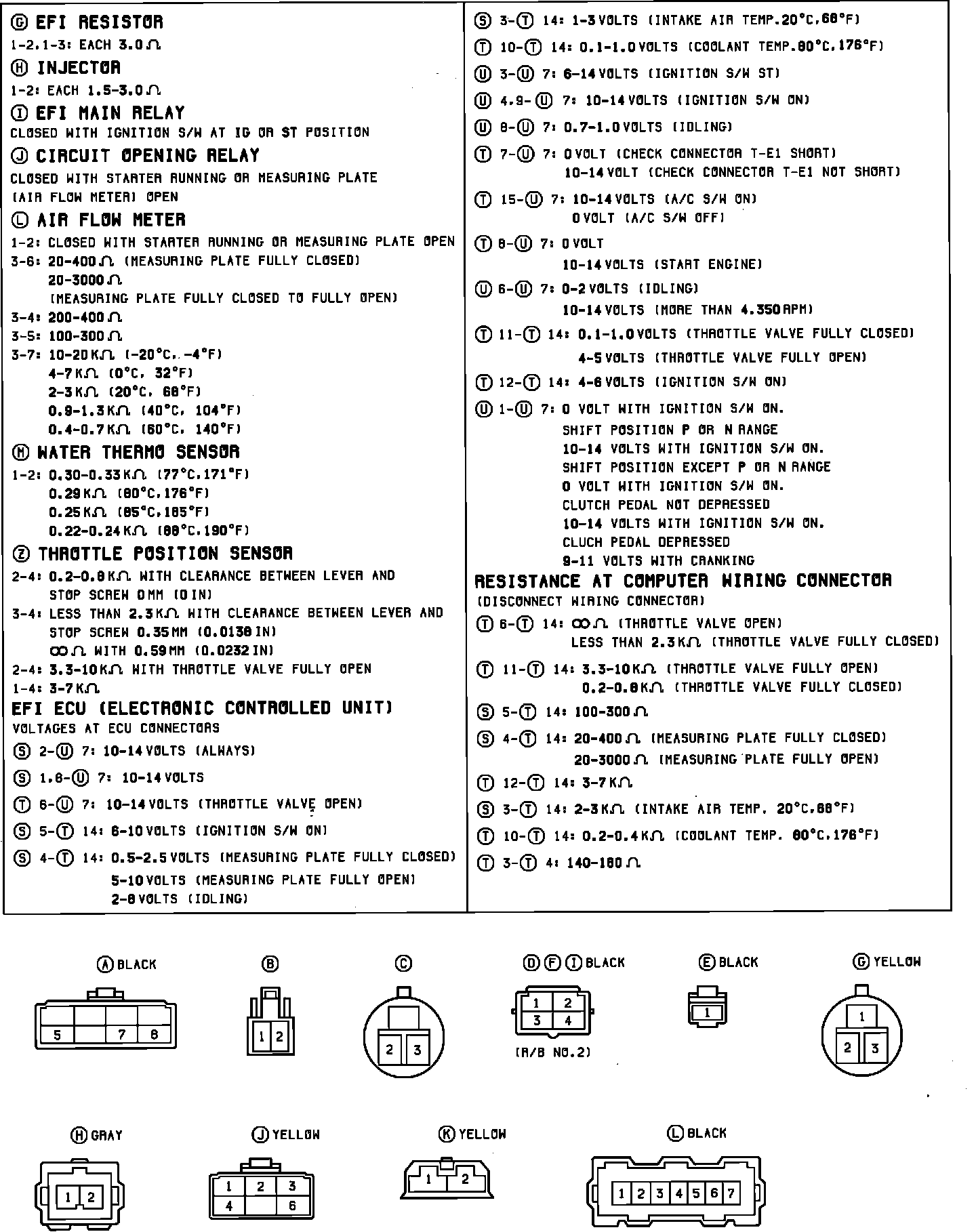

Fig. 200 EFI Wiring Diagram.:



Fig. 201 EFI Wiring Diagram.:



@��������������$:
