Fusible Link: Locations

Fusible Link Location:




Front LH Corner Of Engine Compartment, Near Battery

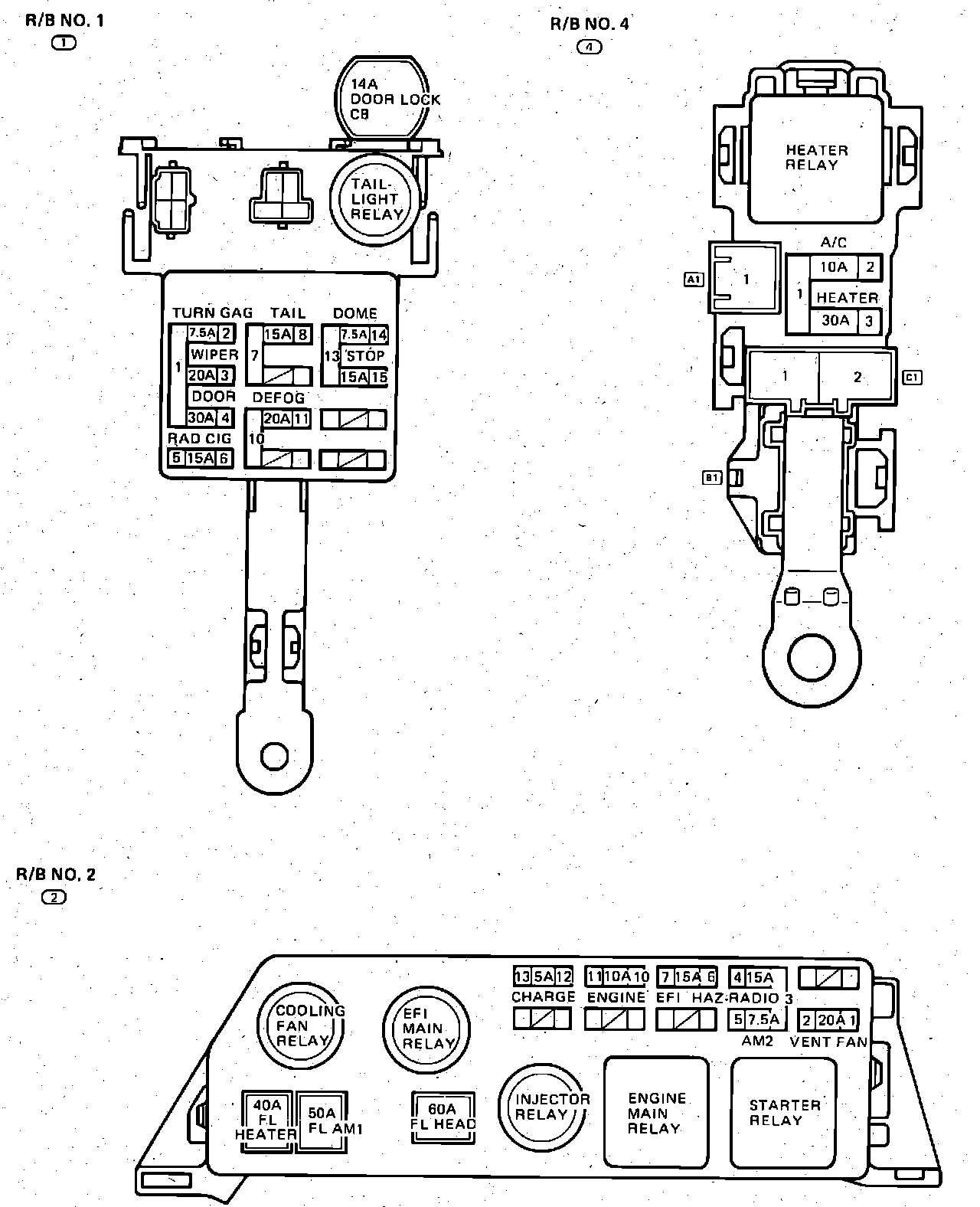

Fuse & Relay Locations:




Relay Block No. 1
