Torque Specifications

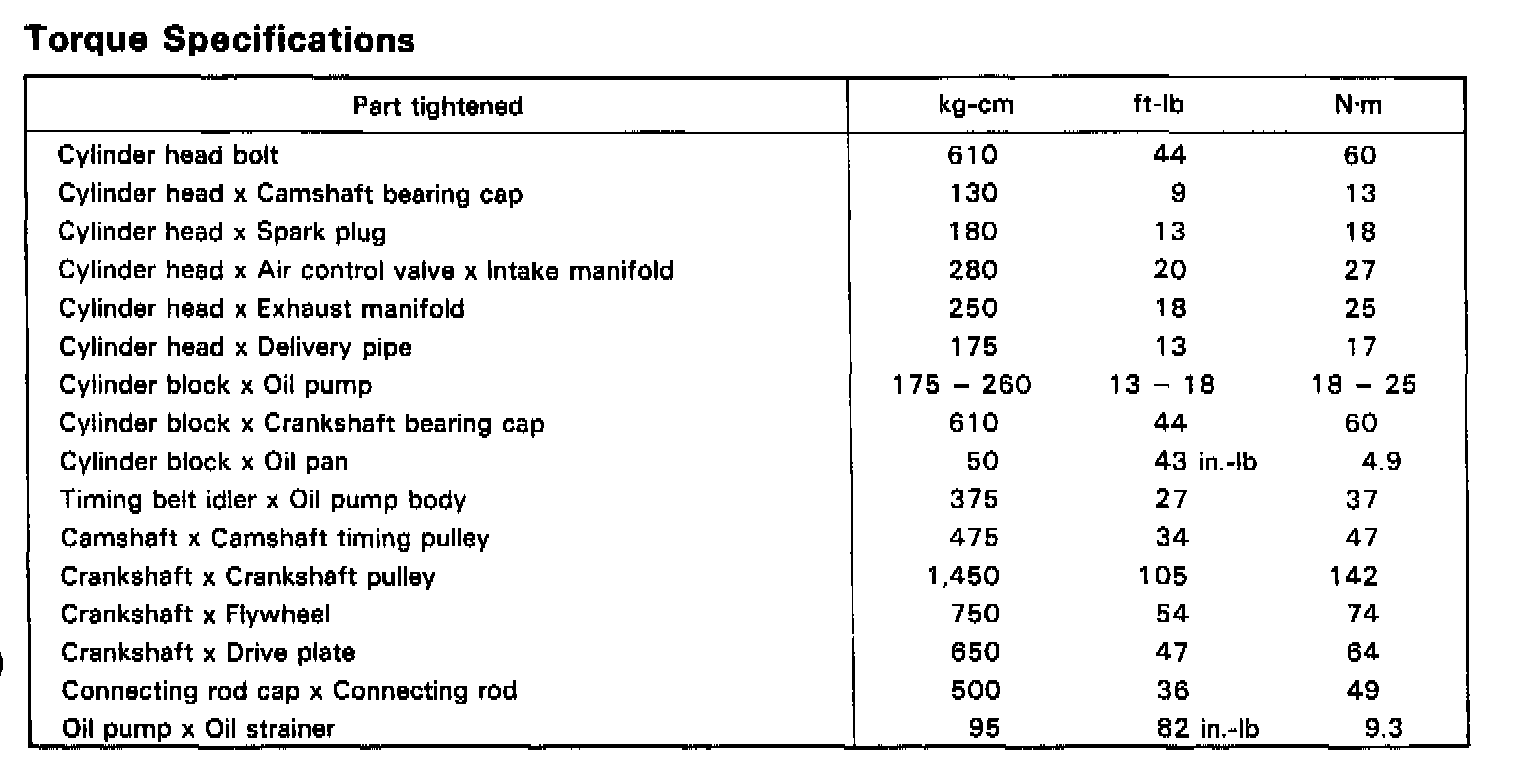

Torque Chart 4A-GE:

Upper Engine Torque Values 4A-GE:

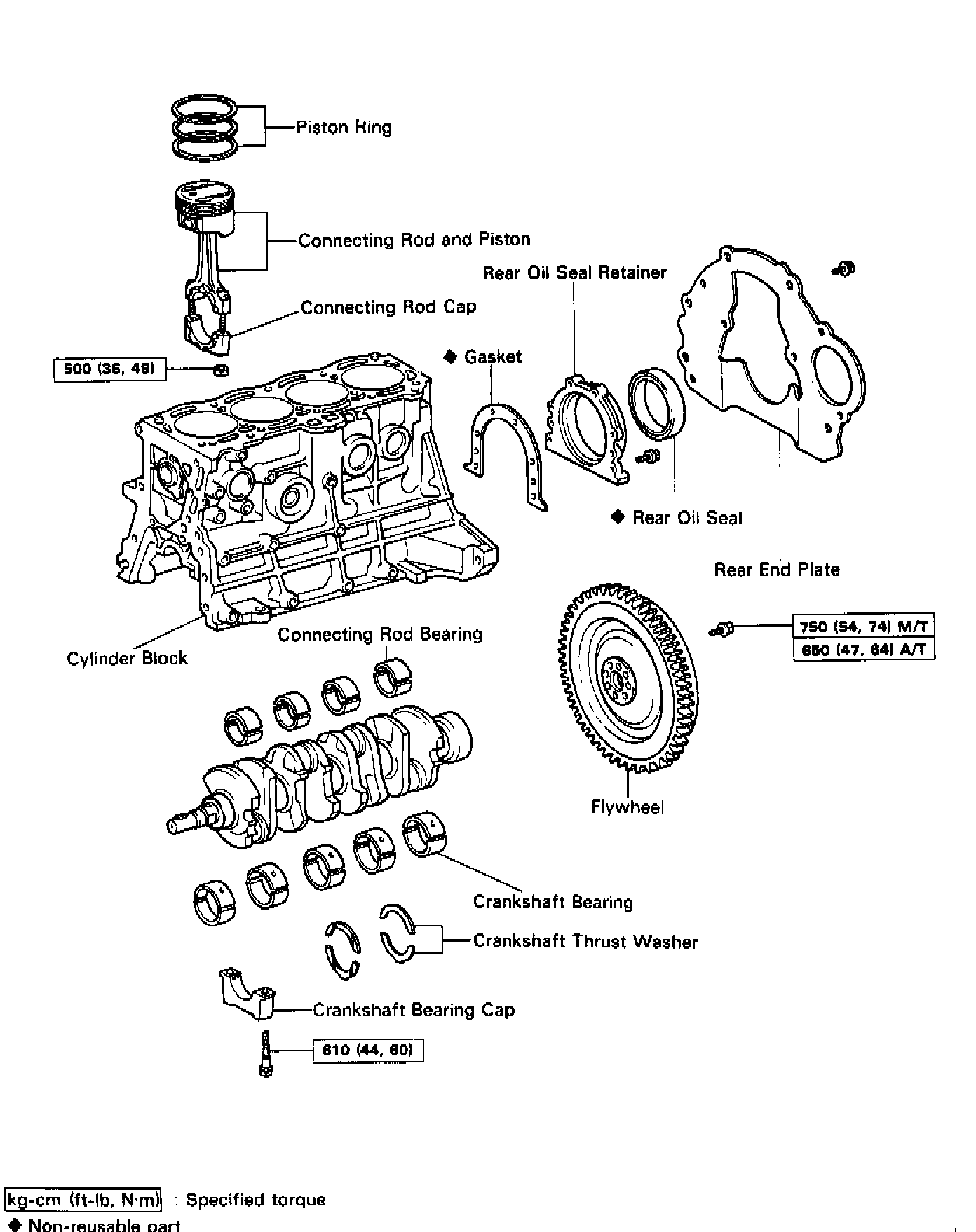

Lower Engine Torque Values 4A-GE:

Head Loosening Sequence 4A-GE:

Main Bearing Torque Sequence:

Head Tightening Sequence 4A-GE:
