Automatic Transmission/Transaxle

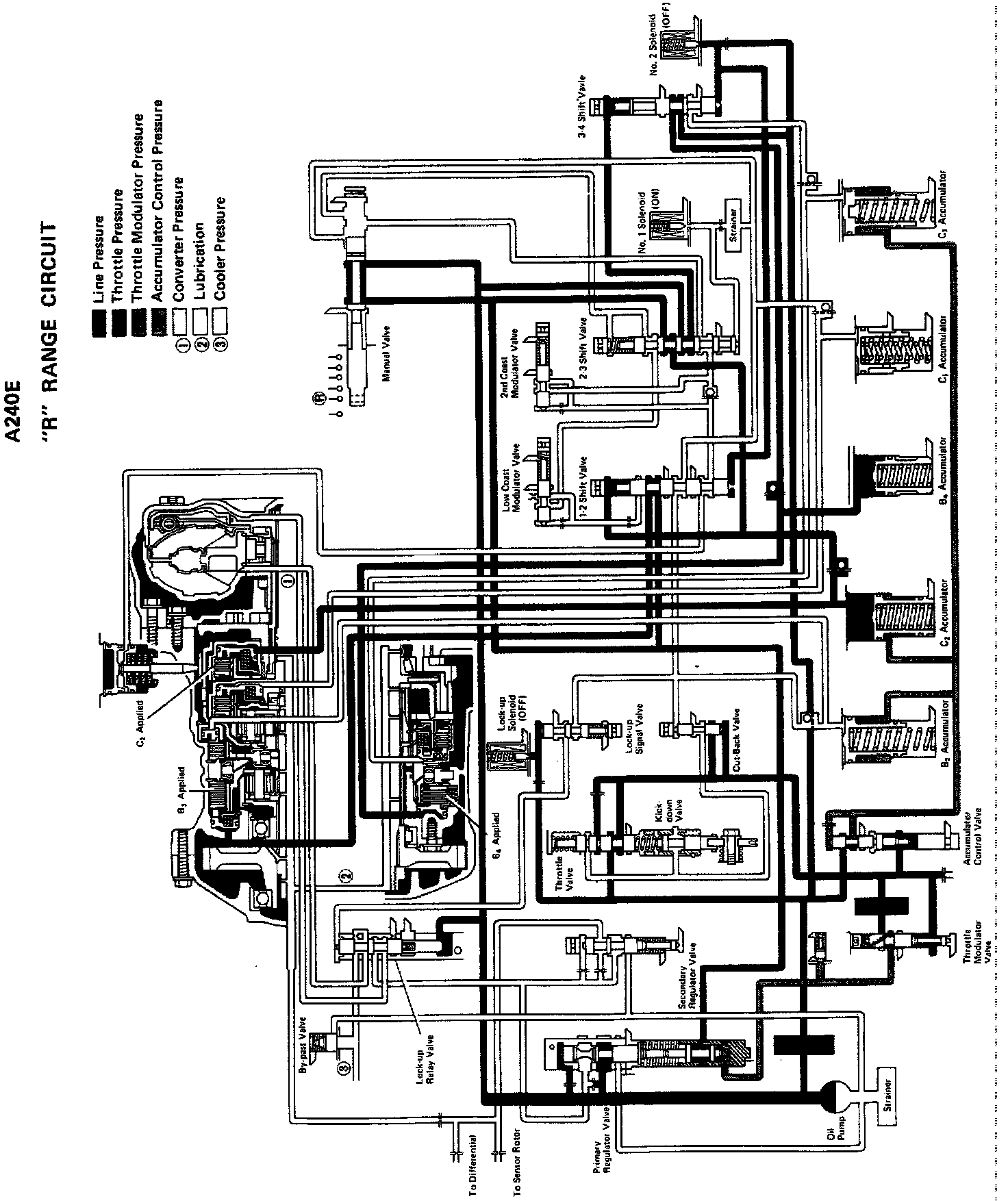

R Range Circuit:

D Range 1st Gear Circuit:

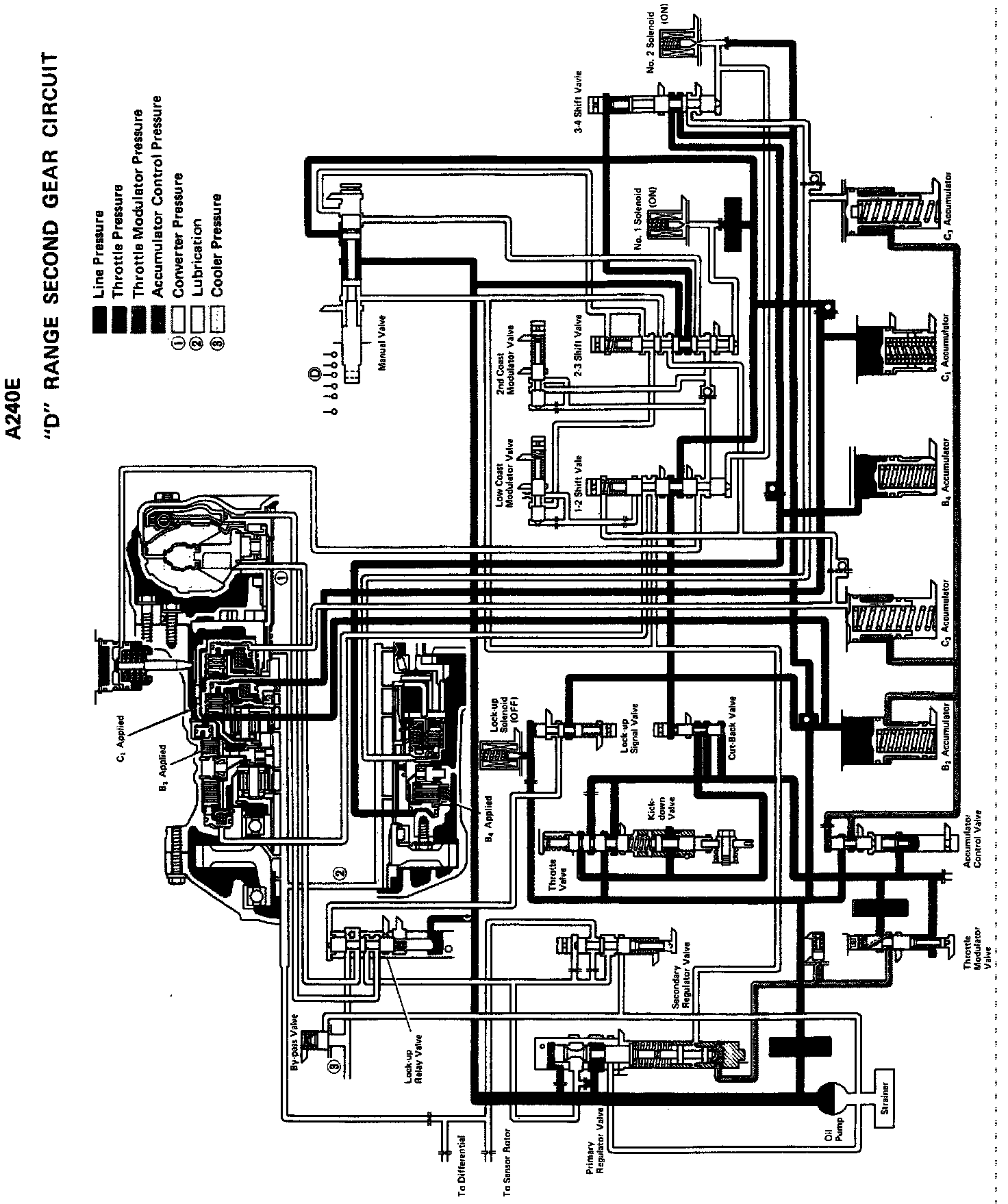

D Range 2nd Gear Circuit:

D Range 3rd Gear Circuit:

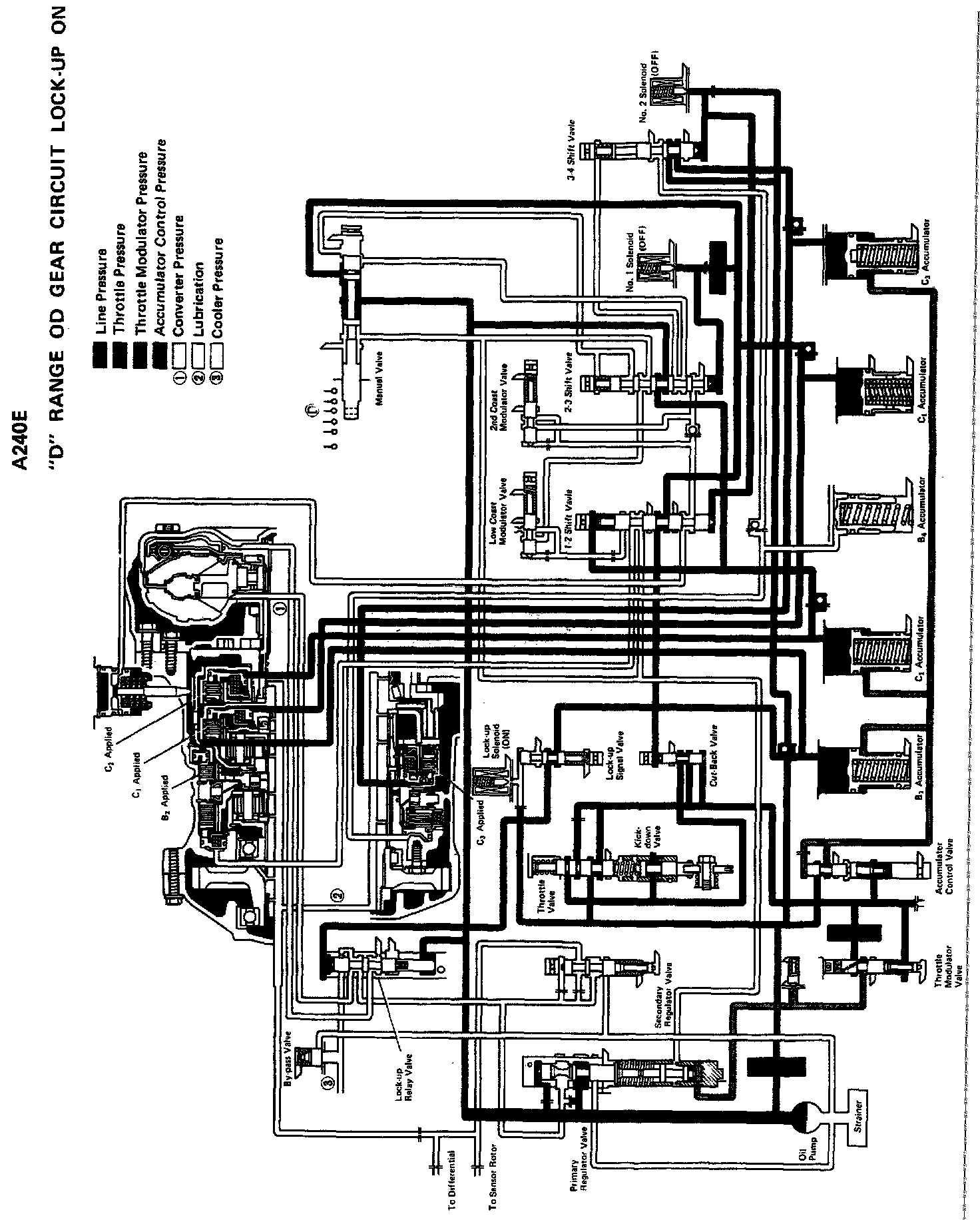

D Range OD Gear Circuit, Lock-up On:

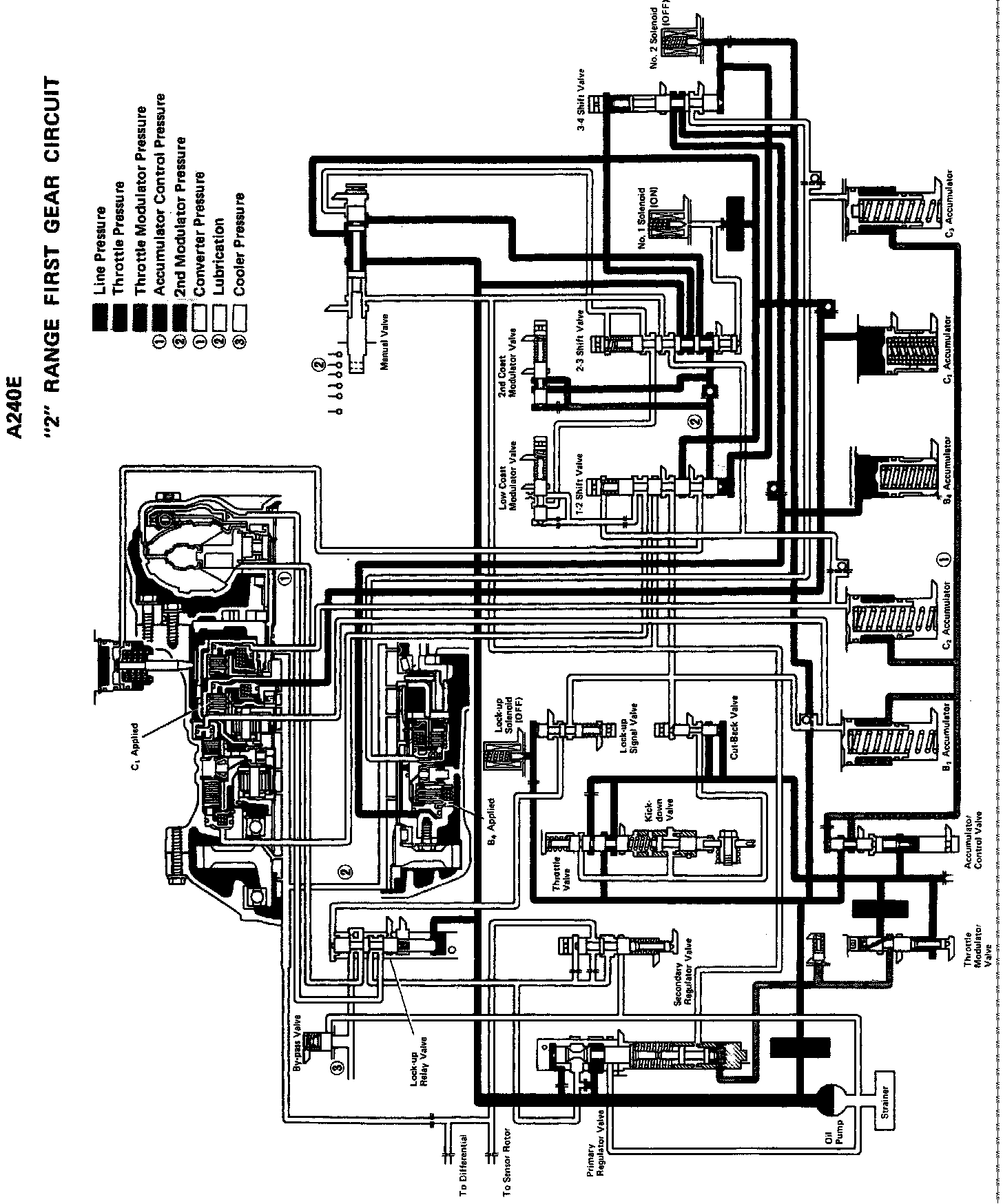

2 Range 1st Gear Circuit:

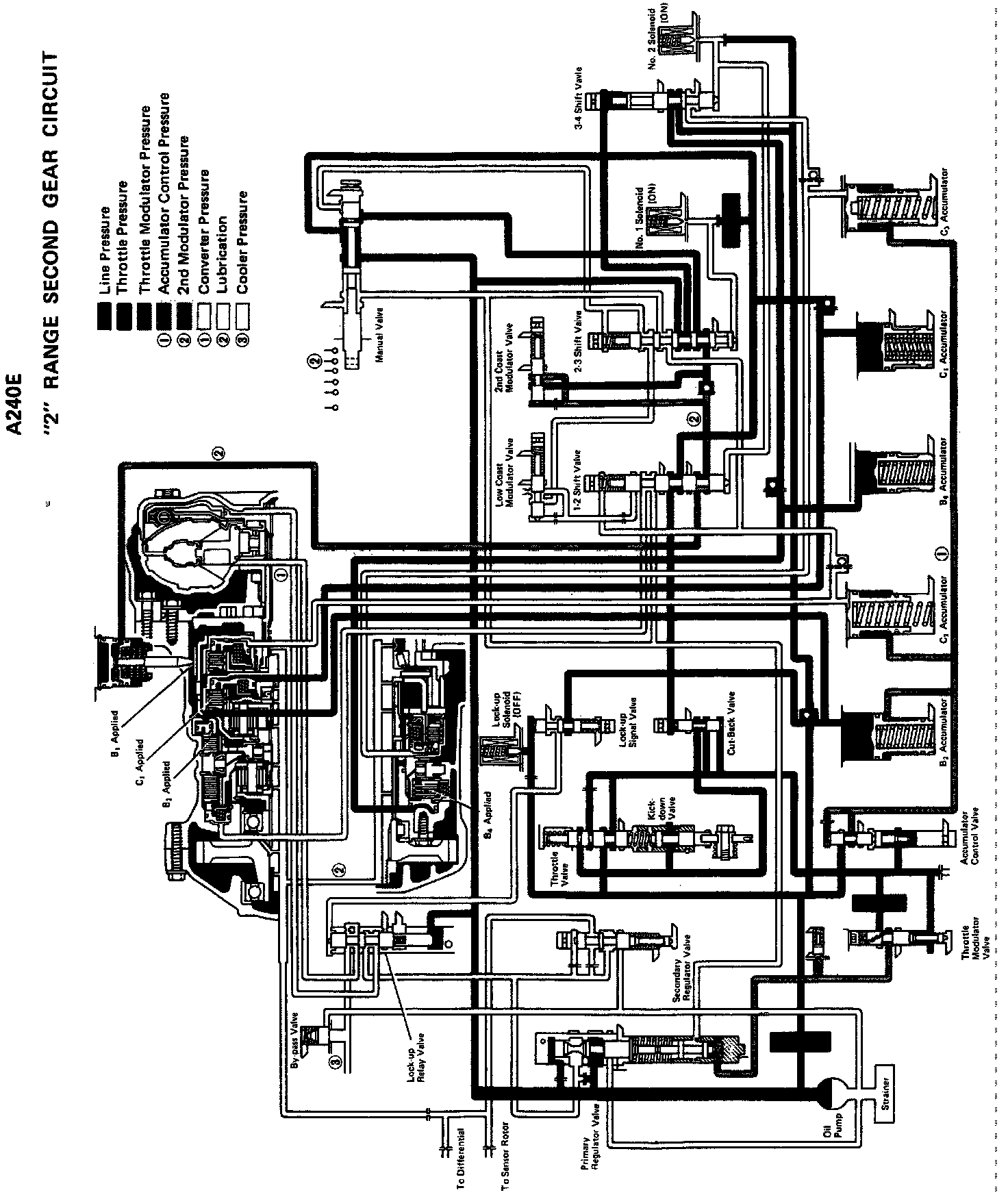

2 Range 2nd Gear Circuit:

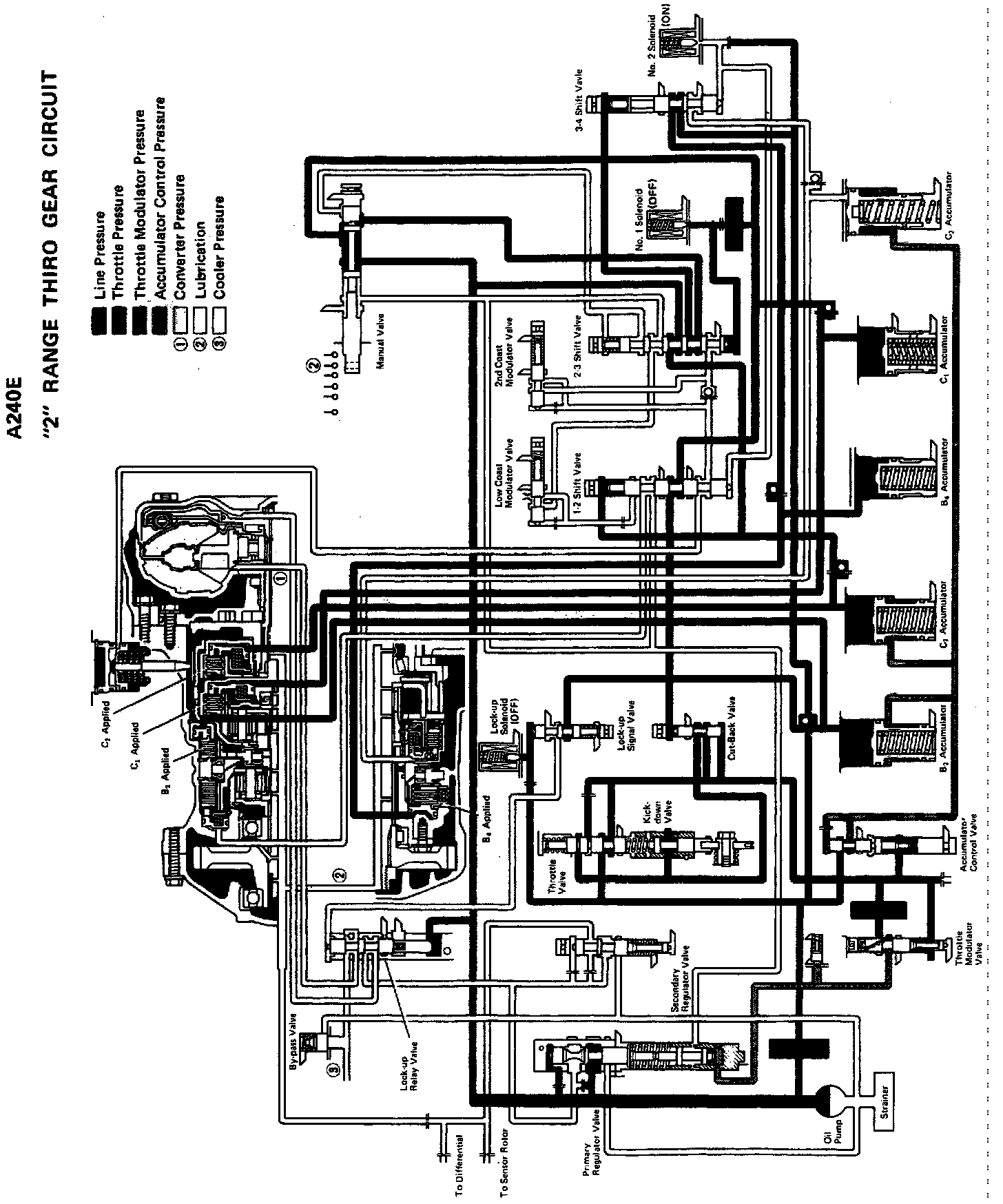

2 Range 3rd Gear Circuit:

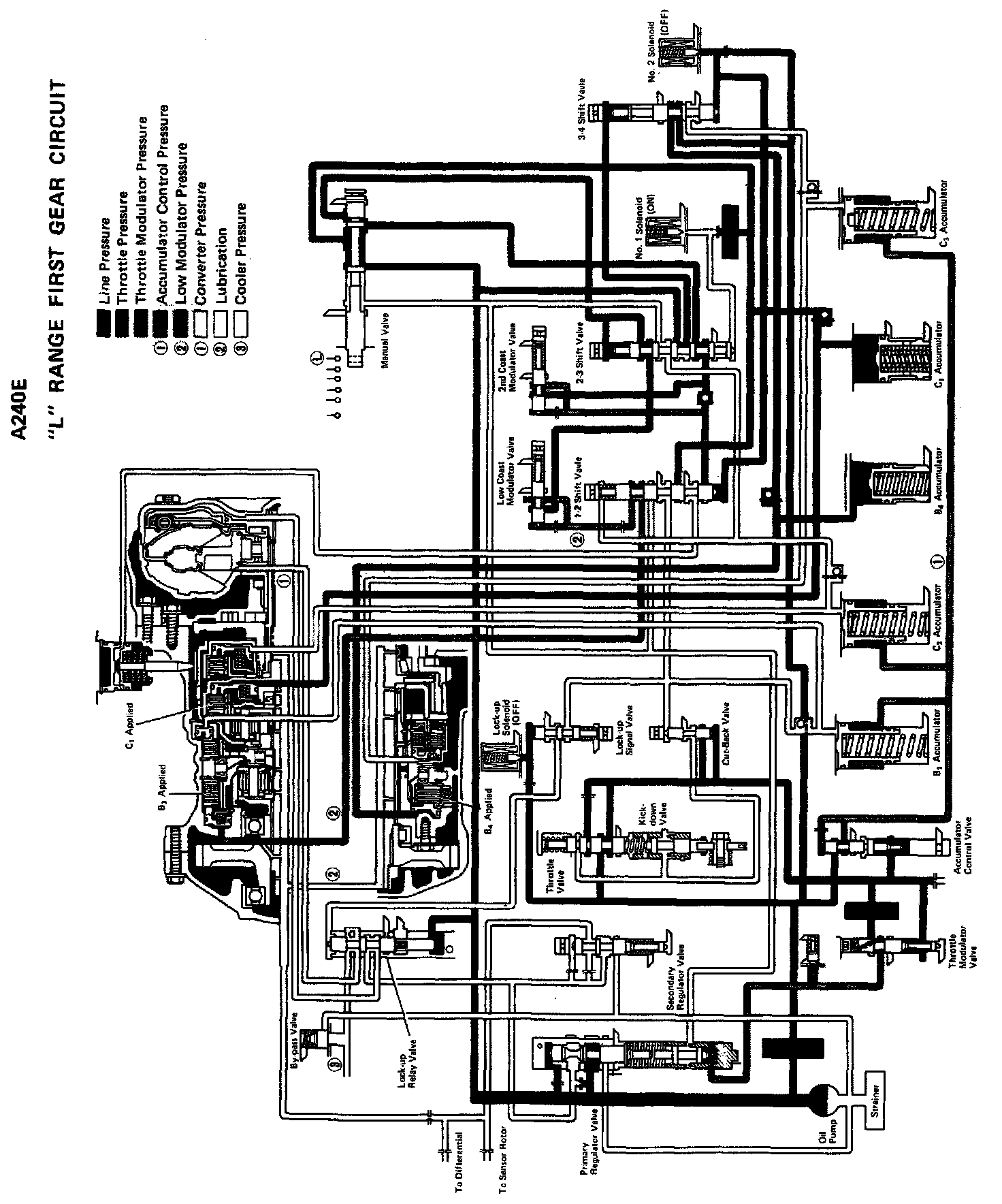

L Range 1st Gear Circuit:
