Front

1. Raise and support vehicle and remove wheel and tire assembly.
2. Reinstall two wheel lug nuts to retain disc.

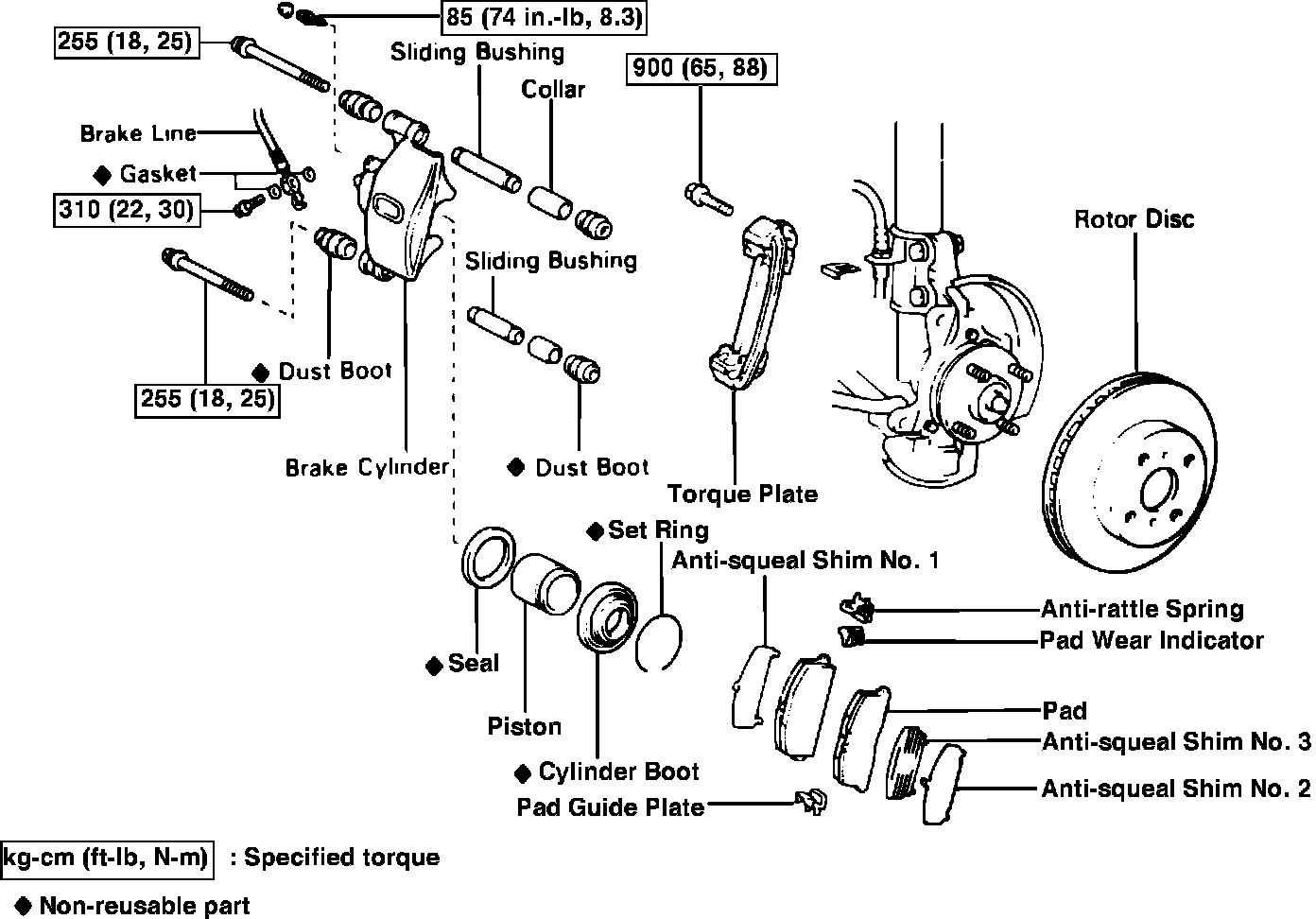

Fig. 15 Disc brake assembly. MR2:

3. Remove two attaching bolts and the caliper from the torque plate, Fig. 15.
4. Remove brake pads, anti-squeal shims, pad wear indicator plates and support plates.
5. Reverse procedure to install, torquing caliper attaching bolts to 18 ft. lbs.
