Cressida Wagon L6-2759cc 2.8L DOHC (5M-GE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
Fuse: Application and ID

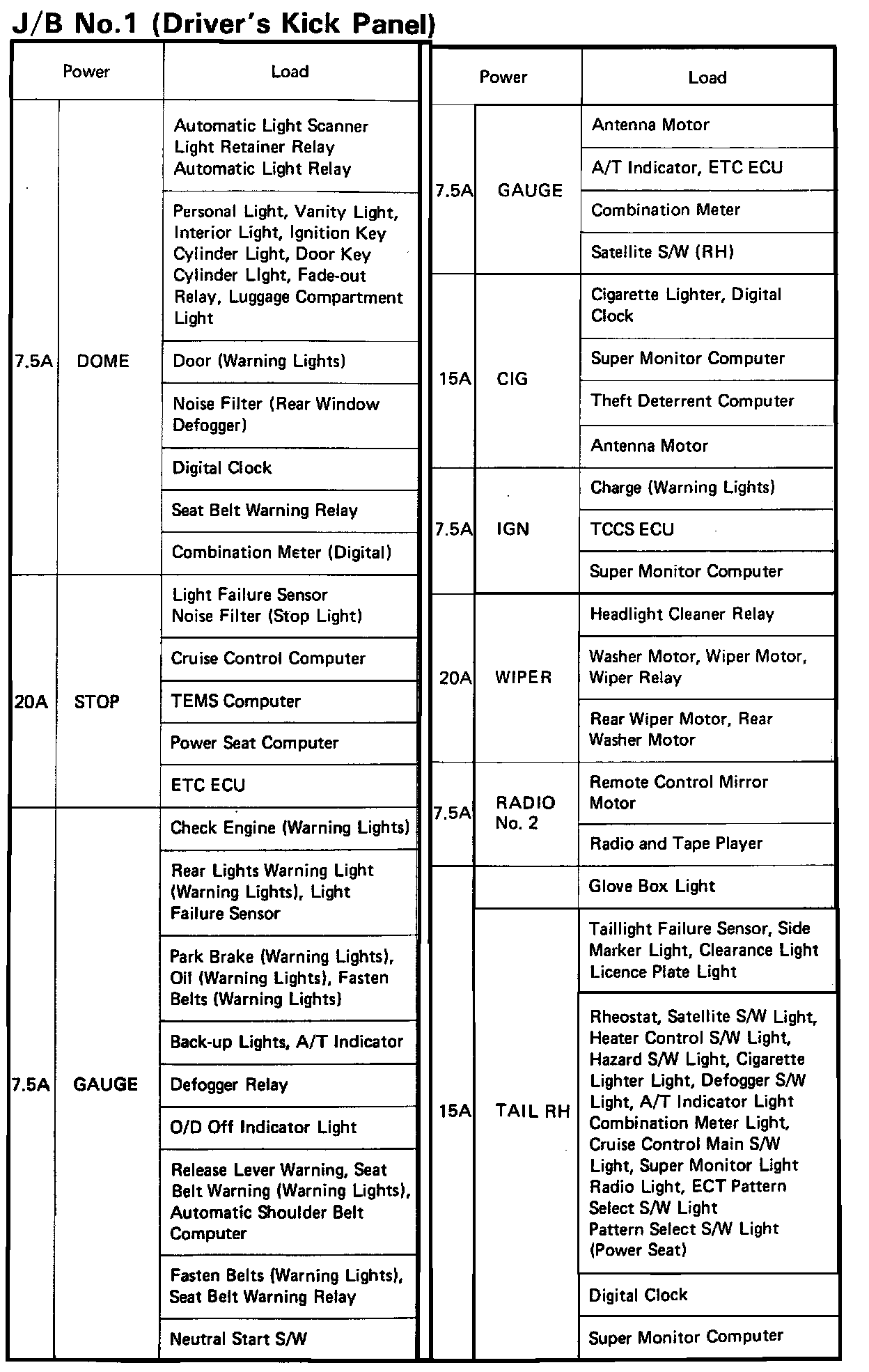

J/B No.1 Fuse Loads (1 Of 2):

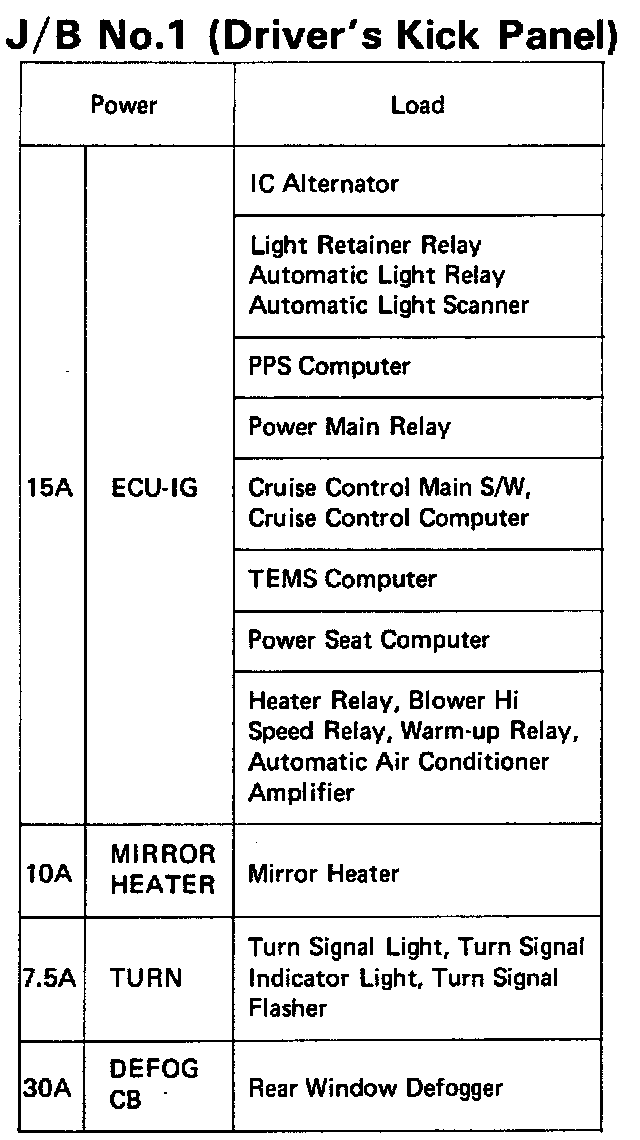

J/B No.1 Fuse Loads (2 Of 2):

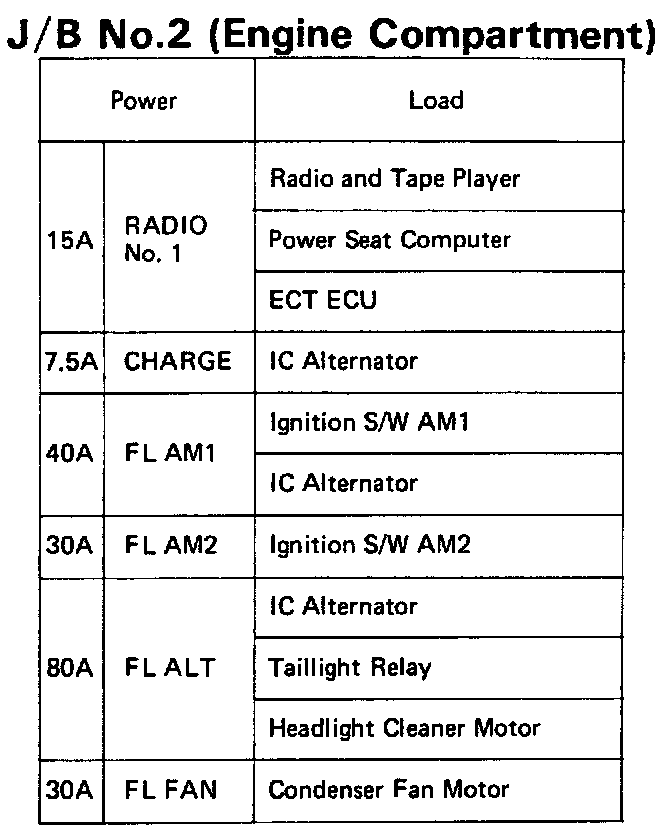

J/B No.2 Fuse Loads (1 Of 2):

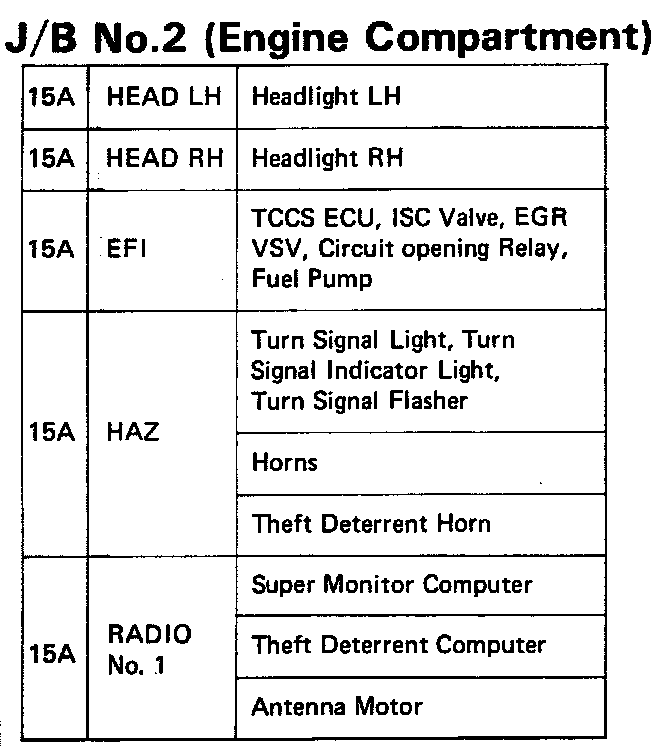

J/B No.2 Fuse Loads (2 Of 2):

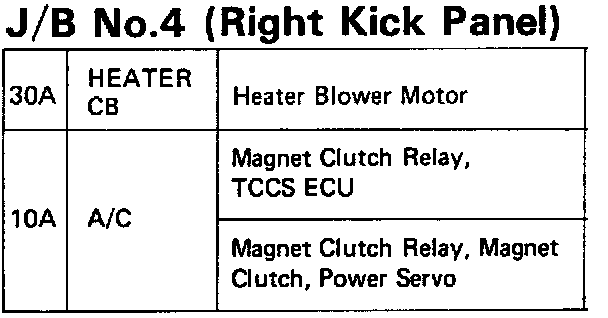

J/B No.4 Fuse Loads:
