Cressida Wagon L6-2759cc 2.8L DOHC (5M-GE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
Fuse Block: Locations

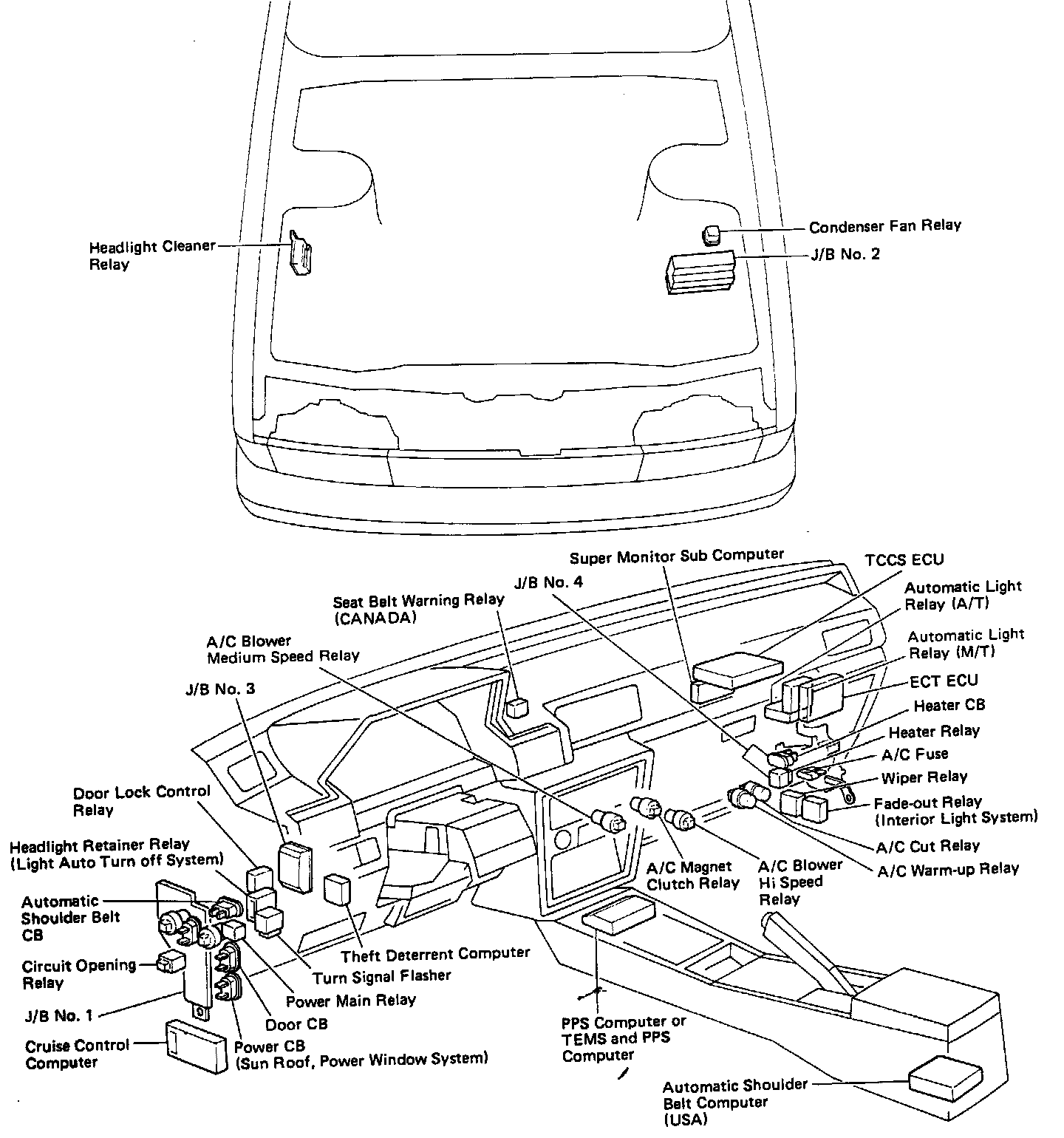

J/B No.2, Condenser Fan Relay And Headlight Cleaner Relay:

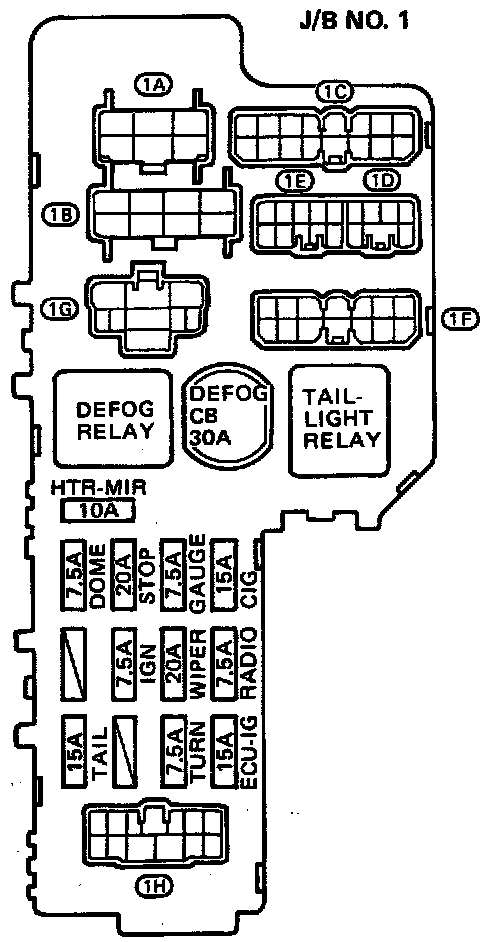

J/B No.1 Layout:

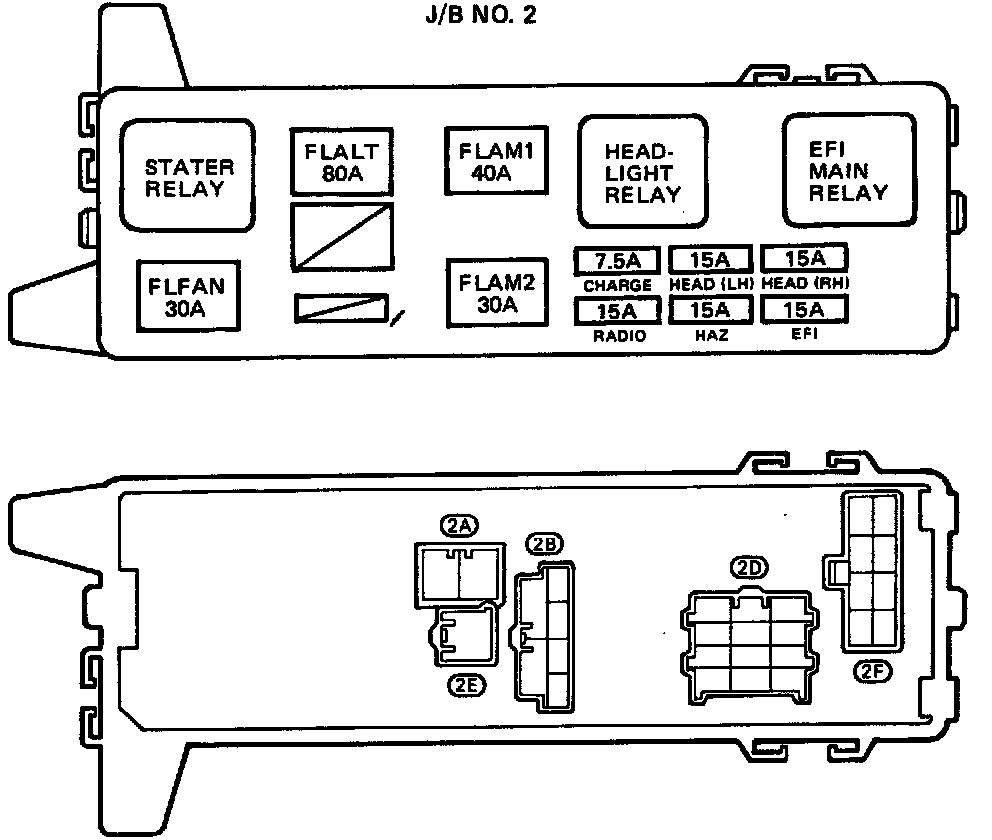

J/B No.2 Layout:
