Back Door Key Unlock Switch

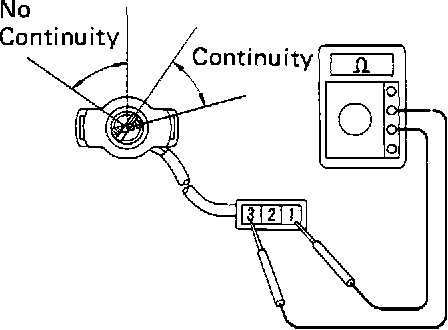

Back Door Key Unlock Switch Testing:






1. Check that there is continuity between terminals 1 and 3 when switch is turned to right.
2. Check that there is no continuity between terminals 1 and 3 when switch is turned to left or in neutral position.
3. If not as specified, replace switch.
