Power and Ground Distribution: Locations

J/B No.2 Location:

Relays And Circuit Breakers Locations - Interior:

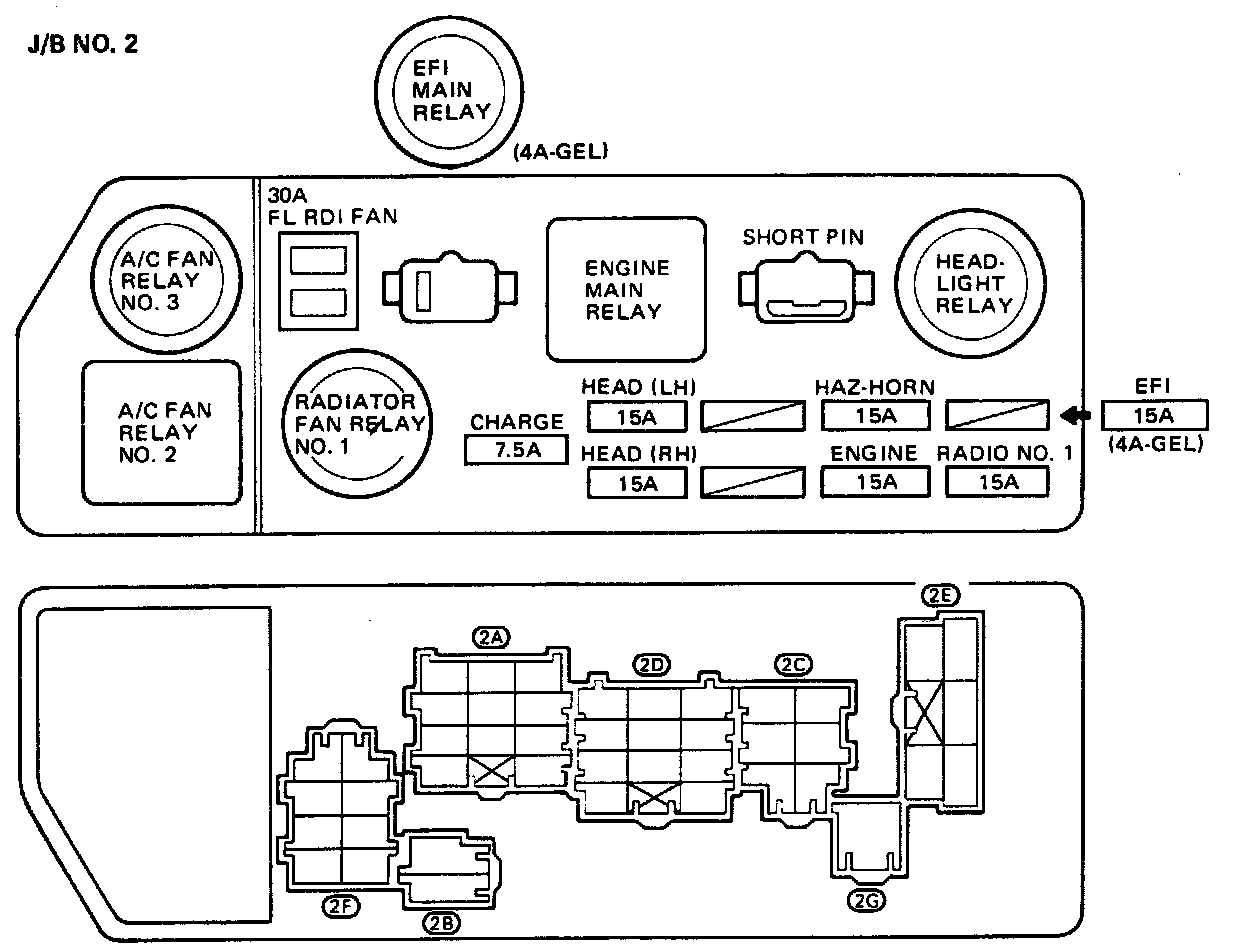

J/B No.2 Layout:

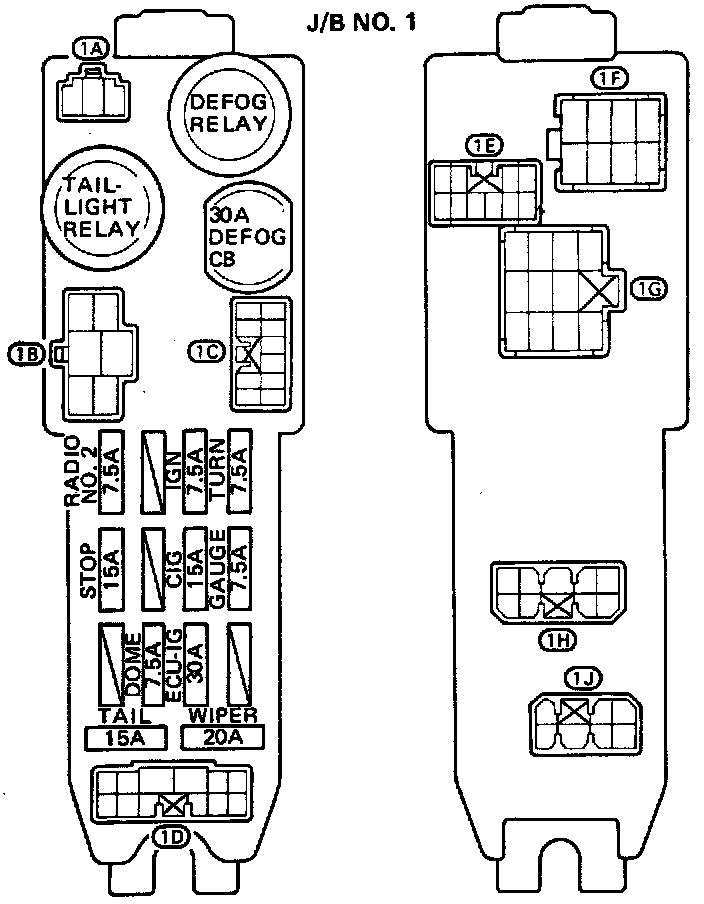

J/B No.1 Layout:

Additional fusible links are located near the battery.
