A/T Technical Data
A/T Technical Data

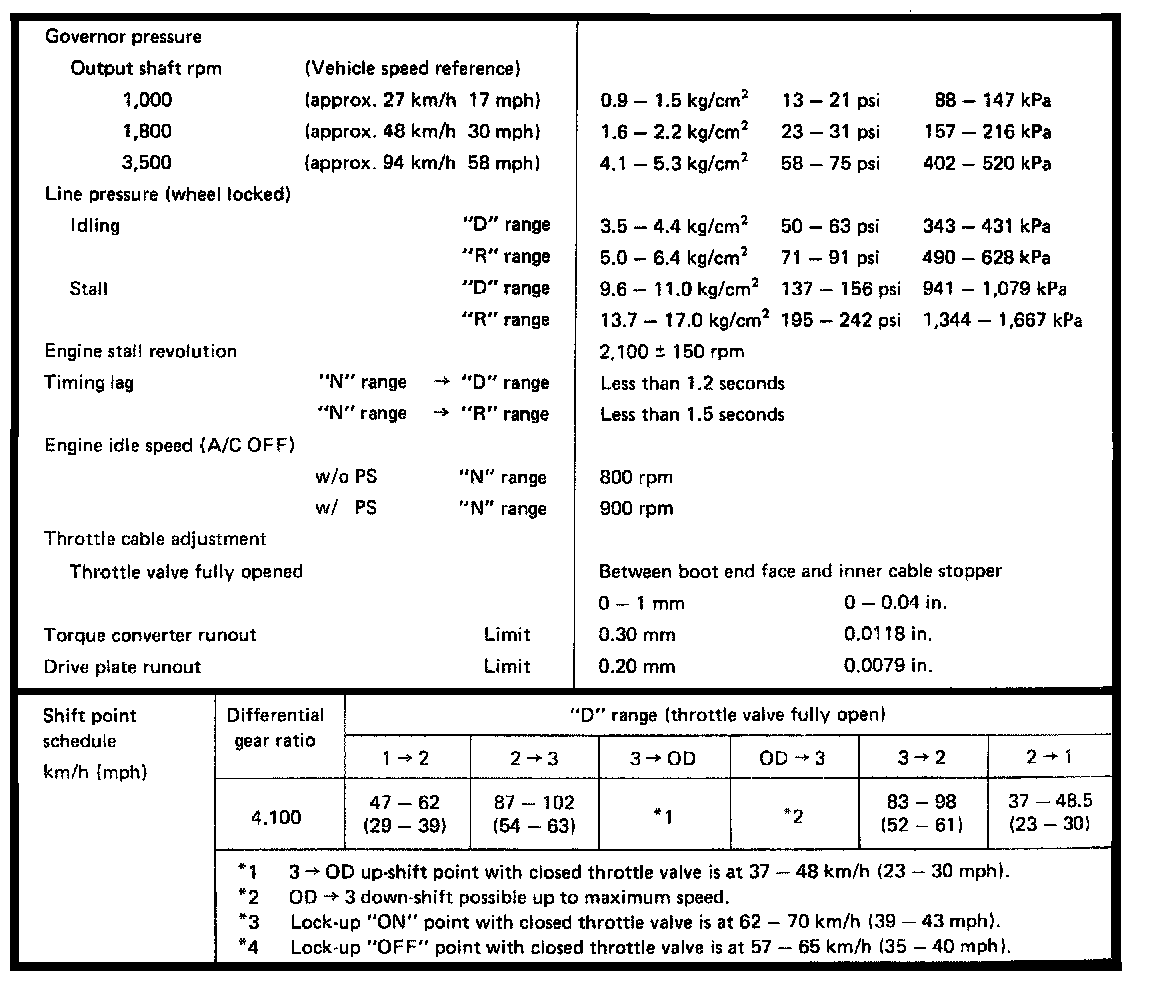

A42DL 3-spd O/D A/T, Line Pressure/Shift Points:

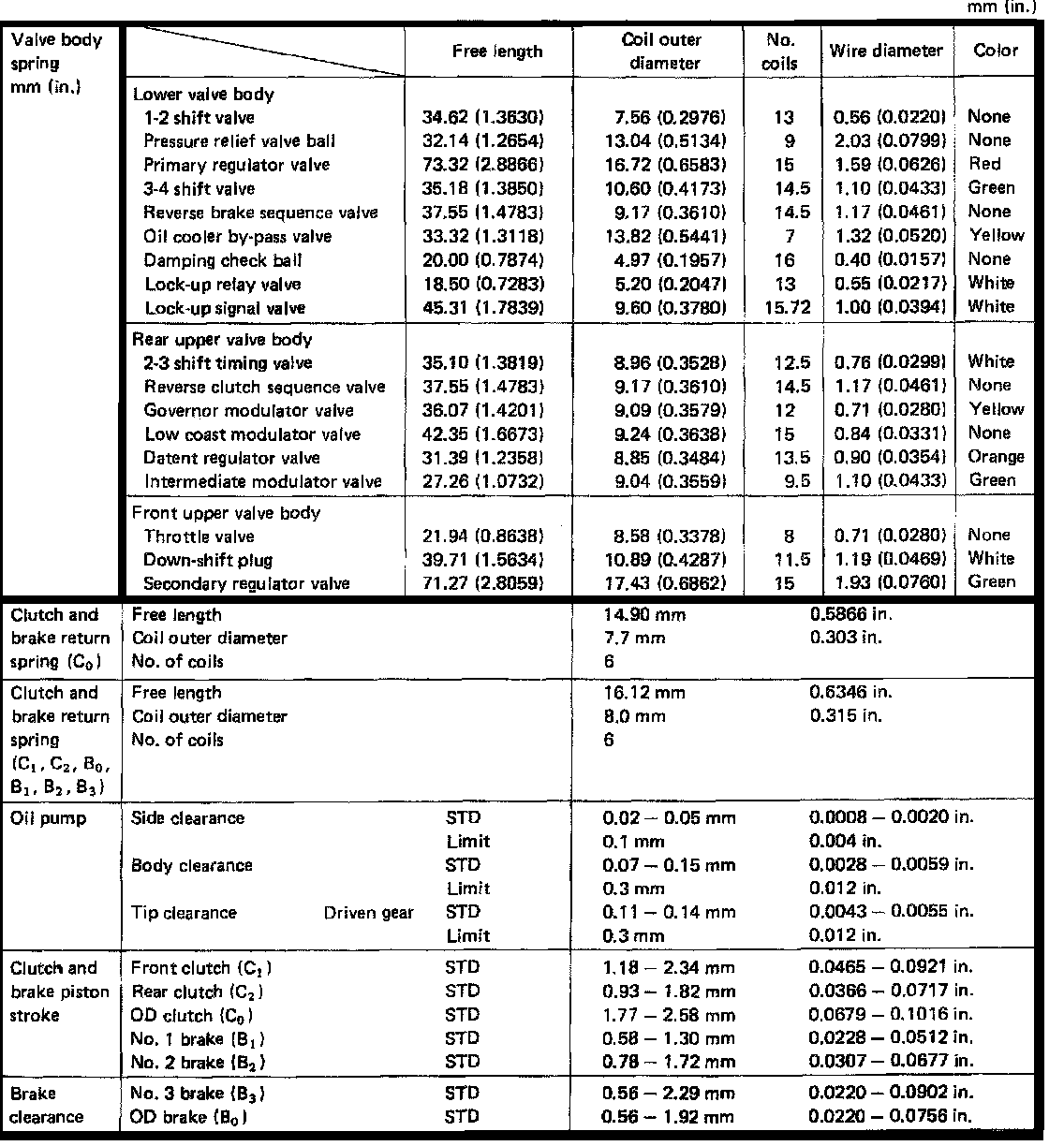

A42DL 3-spd O/D A/T, Valve Body/Clutch Clearances:

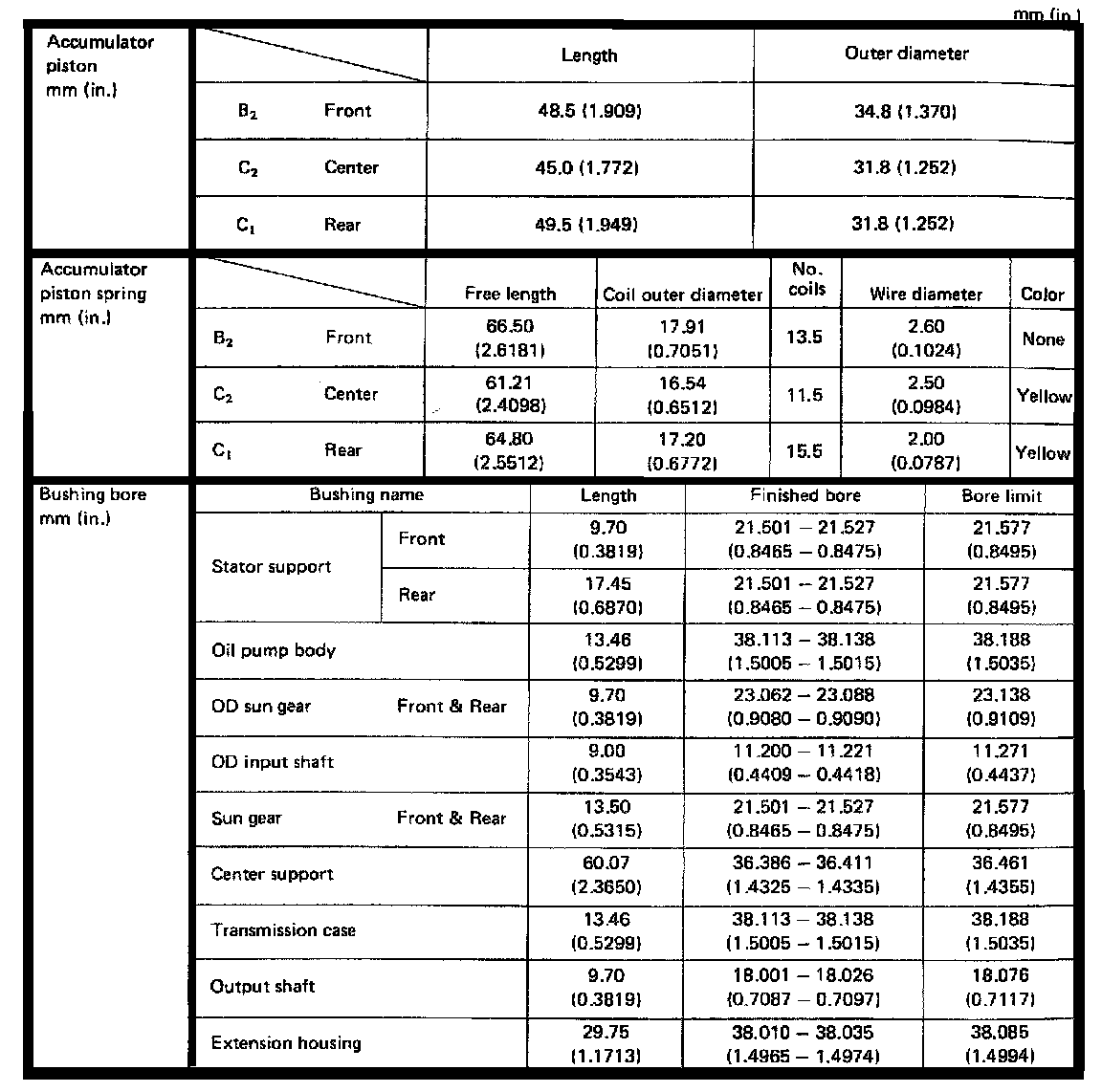

A42DL 3-spd O/D A/T, Accumulator/Bushing Clearance:
