Overdrive Switch: Testing and Inspection

CIRCUIT

INSPECTION OF ELECTRIC CONTROL COMPONENTS

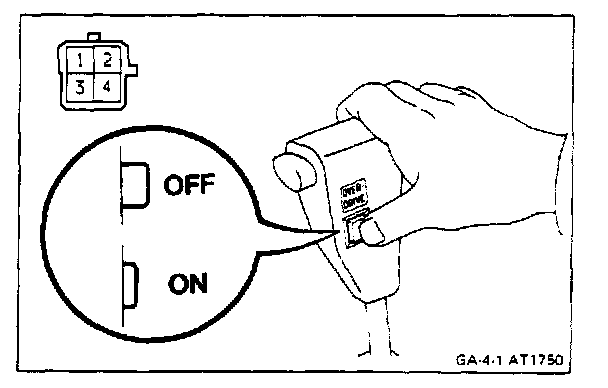

5. INSPECT OVERDRIVE MAIN SWITCH
a. Remove the front console box.

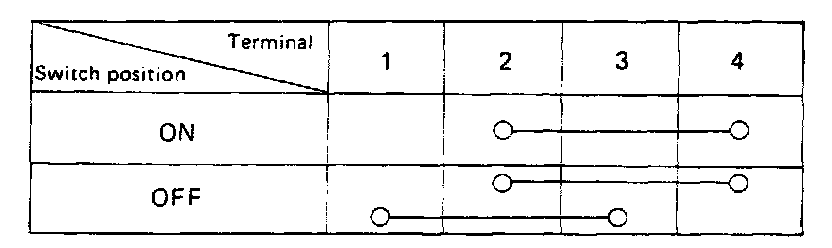

b. Using an ohmmeter, check the continuity of the terminals for each switch position.
c. Install the front console box.
