Home >> Toyota >> 1987 >> Corolla Sport RWD L4-1587cc 1.6L SOHC (4A-C) >> Repair and Diagnosis >> Cruise Control >> Diagrams

Cruise Control: Diagrams

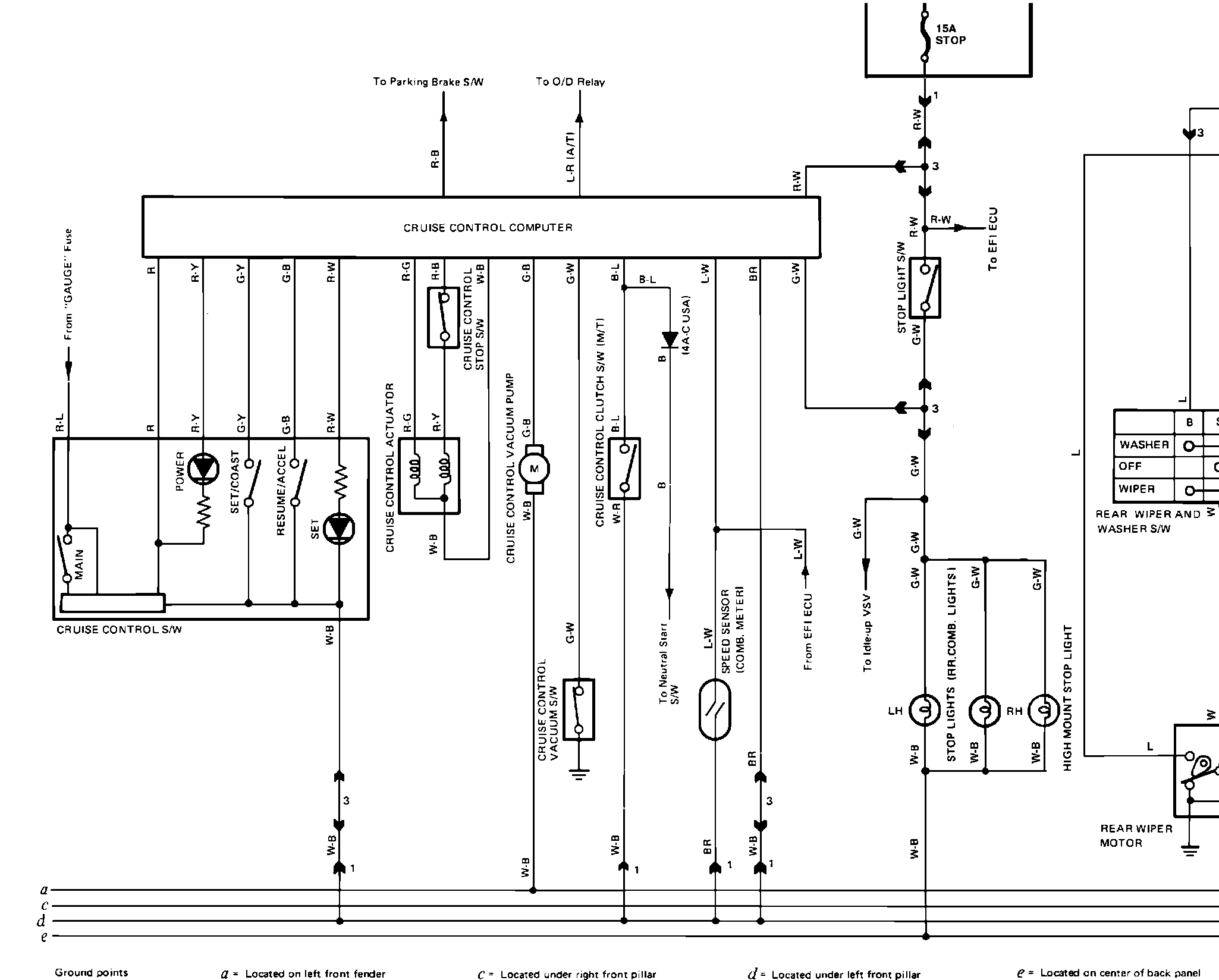

��L=�E P�V"_Fig. 4c complete body & chassis wiring:
