Throttle Position Sensor: Locations

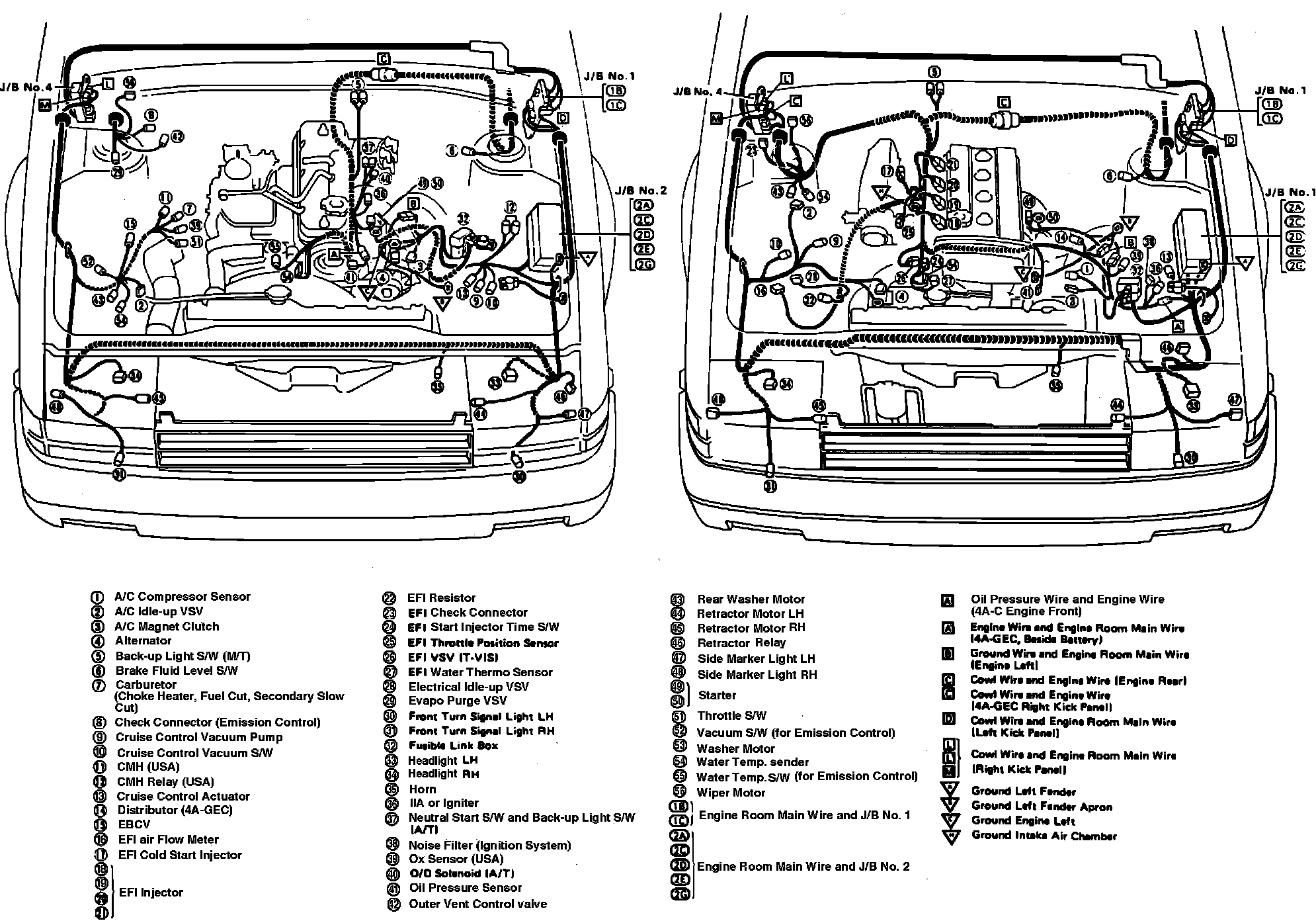

Engine Compartment Harness Connectors.:




Front Of Engine

Applicable to: 1987 RWD Corolla
