Windows - Front Door Glass Operating Effort Reduced

REFERENCE BODY NUMBER 030 REVISED OATE 11-21-86 MODEL AE (FF)

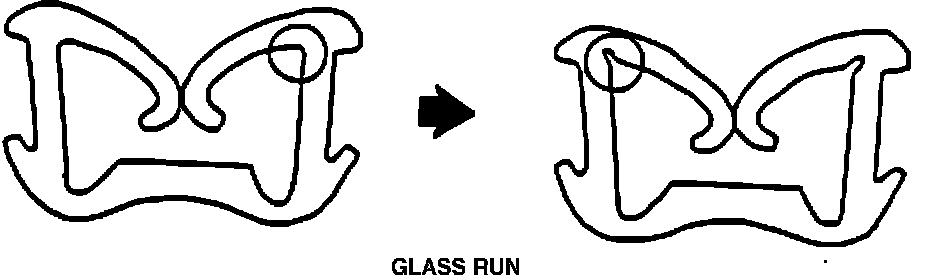

Glass Run:

To reduce operating effort of the front door glass, the following modifications have been made:

1. The friction resistance between the door glass and the glass run has been decreased.

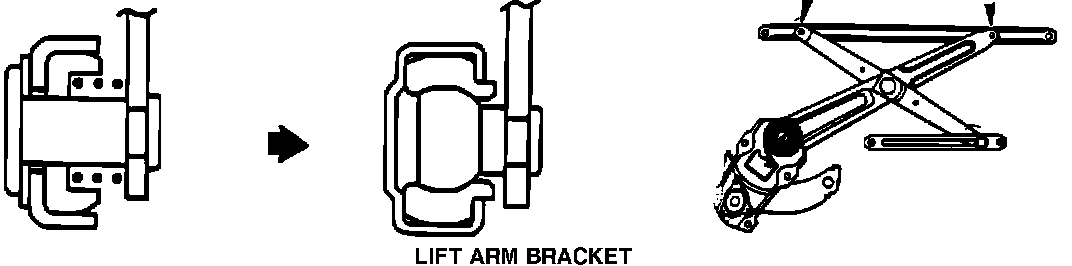

Lift Arm Bracket:

2. The lift arm bracket of the regulator has been reinforced.

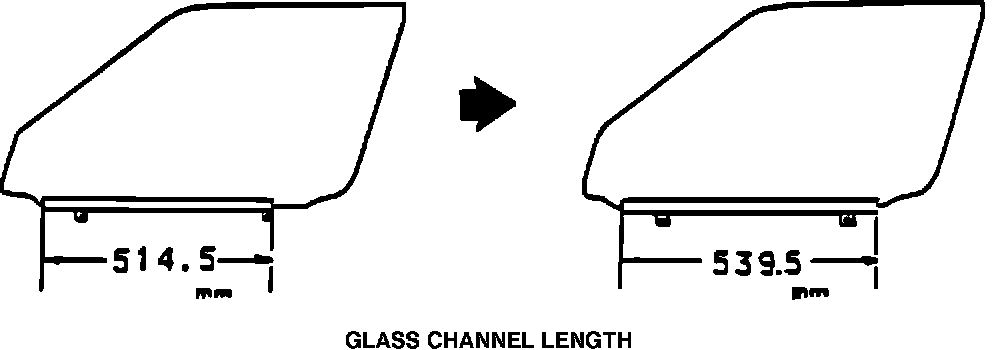

Glass Channel Length:

3. The glass channel length has been increased from 514.5 mm to 539.5 mm.

PRODUCTION EFFECTIVE:

From VIN Production Date

JT2AE8#**G3355429 March, 1986

PART NUMBER INFORMATION:


Previous Part Number New Part Number Part Name

* 68141-12210 Same Run, Fr. Door Glass (LB)
* 68141-12190 Same Run, Fr. Door Glass (SED)
** 69810-12180 69810-12250 Regulator Sub-Ass'y Fr. Door
Window, RH (DX, LE)
** 69801-12040 69801-12080 Regulator Sub-Ass'y Fr. Door
Power Window RH (LE, LEL)
** 69820-12170 69820-12250 Regulator Sub-Ass'y Fr. Door
Window, LH (DX, LE)
** 69802-12040 69802-12080 Regulator Sub-Ass'y, Fr. Door
Power Window LH (LE, LEL)
** 69901-12151 69901-12152 Channel Sub-Ass'y, Fr. Door
Glass, RH
** 69902-12191 69902-12092 Channel Sub-Ass'y, Fr. Door
Glass, LH
** 69971-12040 69971-12070 Filler, Fr. Door Glass Channel


NOTE:
*The new part can be used on new and previous vehicles.
**Parts are interchangeable as a set only.
