Seals and Gaskets: Service and Repair

REPLACEMENT OF OIL SEAL

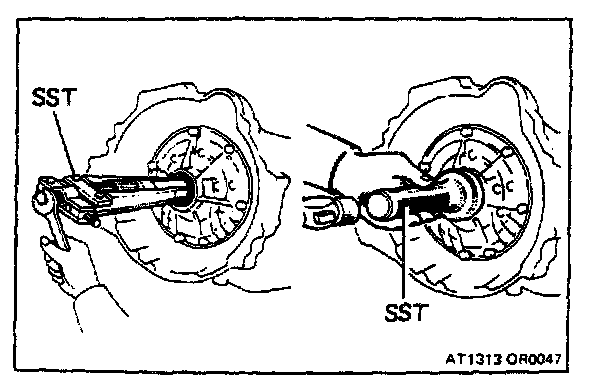

1. REMOVE OIL SEAL WITH SST

SST 09350-32013 (09308-10010)

2. INSTALL NEW OIL SEAL
a. Apply MP grease to the oil seal lip.
b. Drive in the oil seal with SST.

SST 09350-32013 (09351-32140)

REPLACEMENT OF O-RING




1. REMOVE OIL PUMP
a. Position the transmission with the oil pump facing upward.
b. Remove the seven bolts.

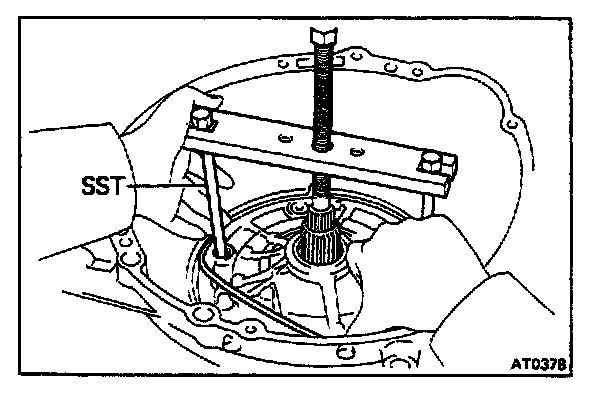

c. Pull up the oil pump to where the O-ring can be removed with SST.

SST 09350-32013 (09351-32061)

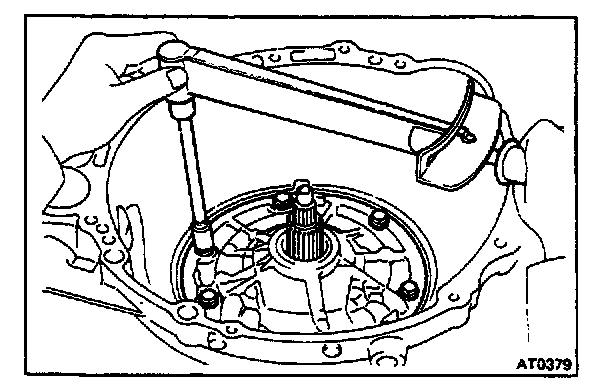

d. Temporarily install the bolt.




2. REMOVE O-RING
3. INSTALL NEW O-RING

4. INSTALL OIL PUMP MOUNTING BOLT
Tighten the seven bolts uniformly and a little at a time.

Torque:
A131L 225 kg.cm (16 ft.lb, 22 N.m)
A240L, A240E 250 kg.cm (18 ft.lb, 25 N.m)
