Intermediate Shaft: Service and Repair

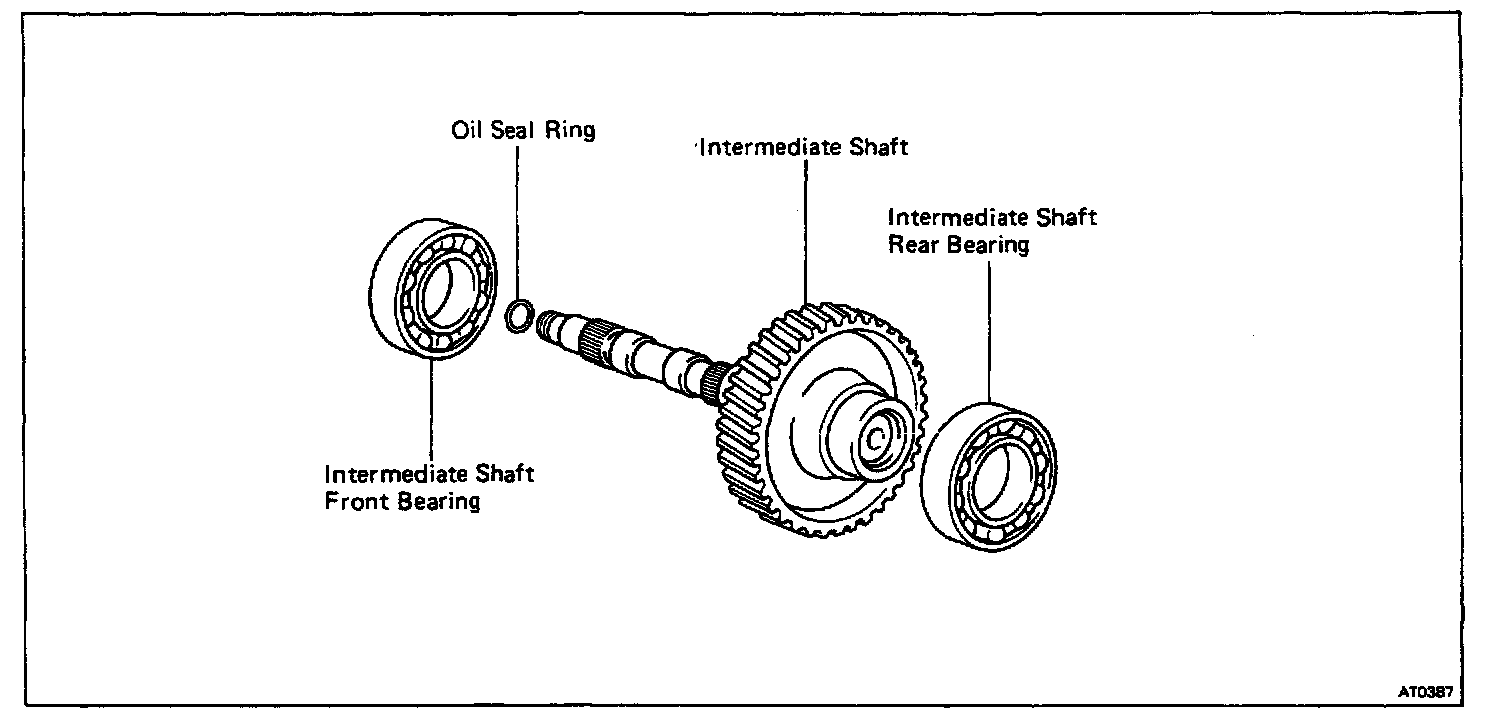

COMPONENTS

REPLACEMENT OF INTERMEDIATE SHAFT FRONT BEARING

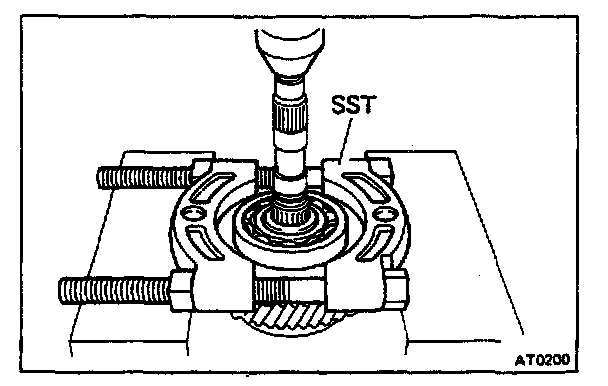

1. REMOVE INTERMEDIATE SHAFT FRONT BEARING Using SST, press out the bearing.

SST (A240L, A240E) 09555-55010
(A131L) 09950-00020

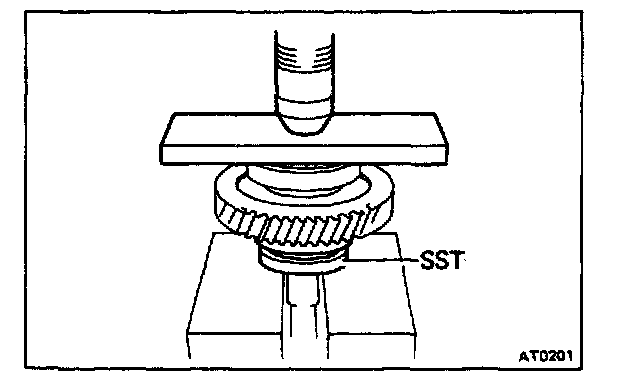

2. INSTALL INTERMEDIATE SHAFT FRONT BEARING Using SST, press in a new bearing.

SST 09350-32013 (09351-32120)

REPLACEMENT OF INTERMEDIATE SHAFT REAR BEARING

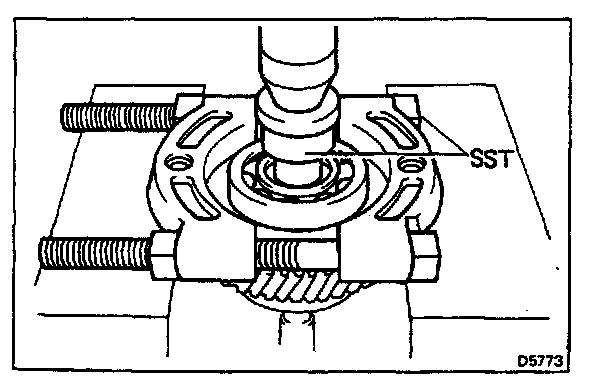

1. REMOVE INTERMEDIATE SHAFT REAR BEARING
Using SST, press out the bearing.

SST (A240L,A240E)
09350-32013 (09351-32090) and 09555-55010

(A131L)
09350-32013 (09351-32090) and 09950-00020

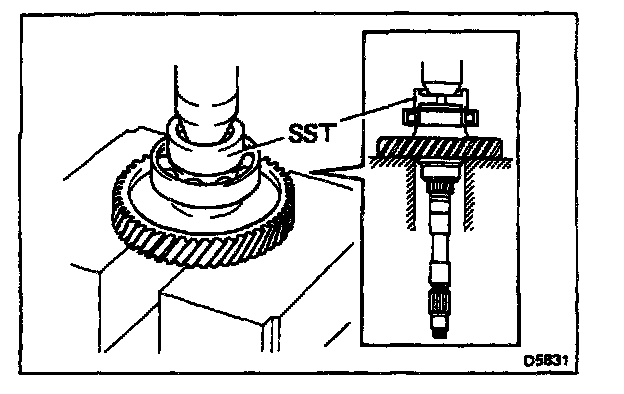

2. INSTALL INTERMEDIATE SHAFT REAR BEARING




a. Using SST, press in a new bearing.

SST 09350-32013 (09351-32150)

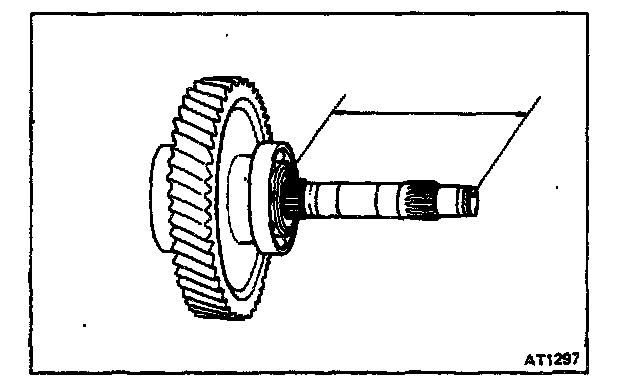

b. Check that the distance from the gear flange end to the intermediate shaft end should be about 115.8 mm (4.560 in.).
