Governor: Service and Repair

REMOVAL OF GOVERNOR VALVE (A240L/4A-C, A131L/4A-C)

1. (A131L/4A-C)
REMOVE TRANSAXLE DUST COVER

2. (A131L/4A-C)
REMOVE LH DRIVE SHAFT

3. (A240L/4A-C)
DISCONNECT SPEEDOMETER CABLE

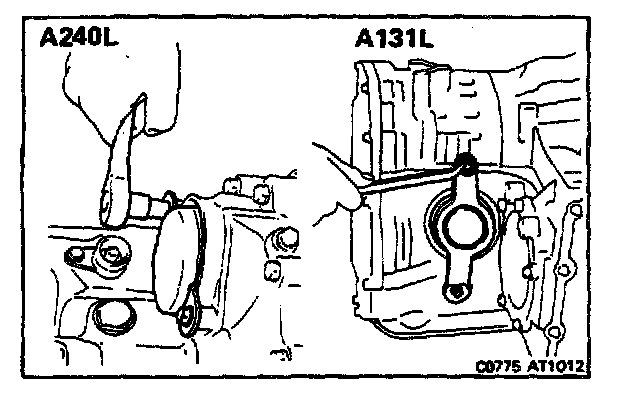

4. REMOVE GOVERNOR COVER AND O-RING




5. REMOVE GOVERNOR BODY WITH THRUST WASHER

6. (A131L/4A-C)
REMOVE PLATE WASHER




7. REMOVE GOVERNOR BODY ADAPTOR

8. (A240L/4A-C)
REMOVE GASKET

INSTALLATION OF GOVERNOR VALVE

1. (A240L/4A-C)
INSTALL NEW GASKET TO GOVERNOR BODY ADAPTOR

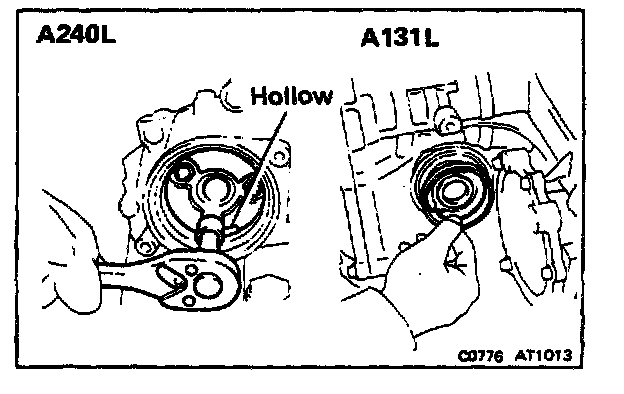

2. INSTALL GOVERNOR BODY ADAPTOR

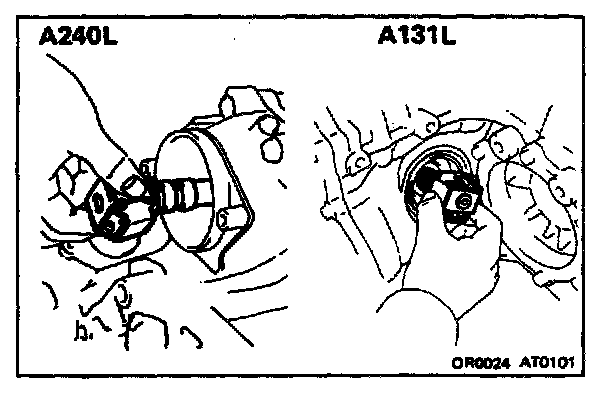

3. INSTALL GOVERNOR BODY

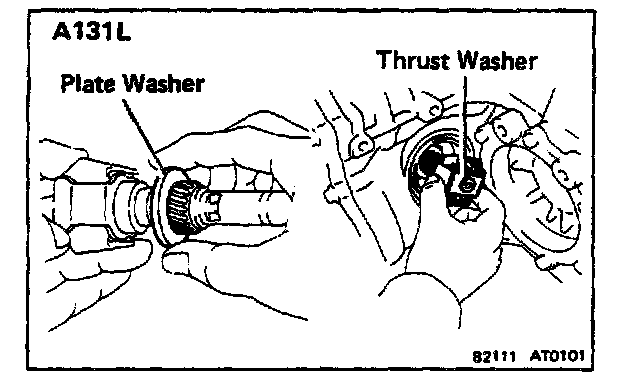

a. (A131L/4A-C)
Install the plate washer to the governor body.

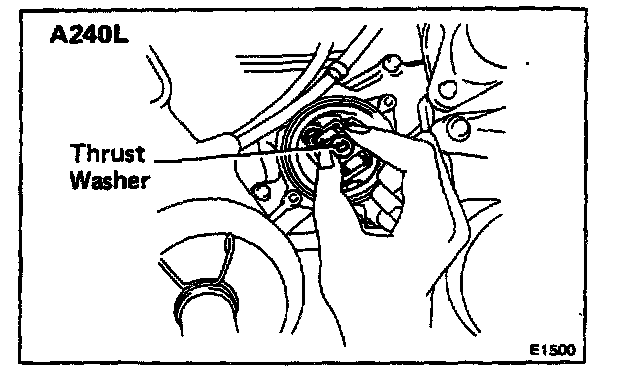

b. Install the governor body with thrust washer.

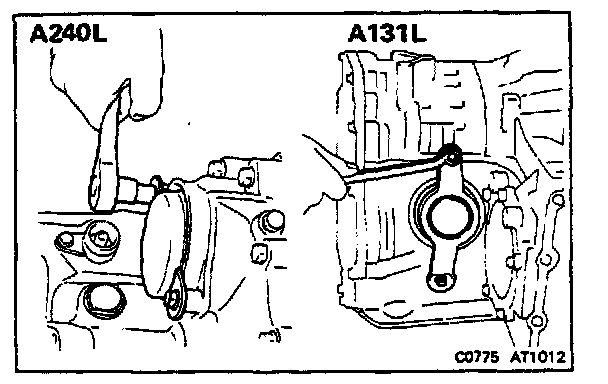

4. INSTALL GOVERNOR COVER WITH O-RING

5. (A240L/4A-C)
CONNECT SPEEDOMETER CABLE

6. (A131L/4A-C)
INSTALL LH DRIVE SHAFT

7. (A131L/4A-C)
INSTALL TRANSAXLE DUST COVER
