Extension Housing: Service and Repair

INSPECTION OF SPEEDOMETER GEAR AND EXTENSION HOUSING

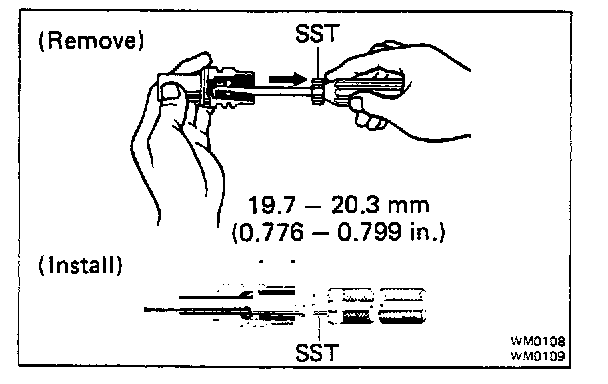

1. IF NECESSARY, REPLACE SPEEDOMETER GEAR OIL SEAL

a. Using SST, remove the oil seal.

SST 09921-00010

b. Using SST, install a new oil seal.

SST 09201-60011

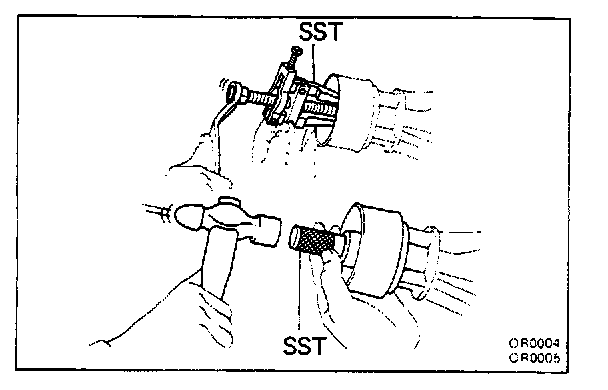

2. IF NECESSARY, REPLACE OIL SEAL AND DUST SEAL

a. Using SST, remove the oil seal.

SST 09308-10010

b. Using SST, drive in a new oil seal and dust seal.

SST 09325-20010
