A240L 3-SPD O/D A/T
A240L 3-SPD O/D A/T

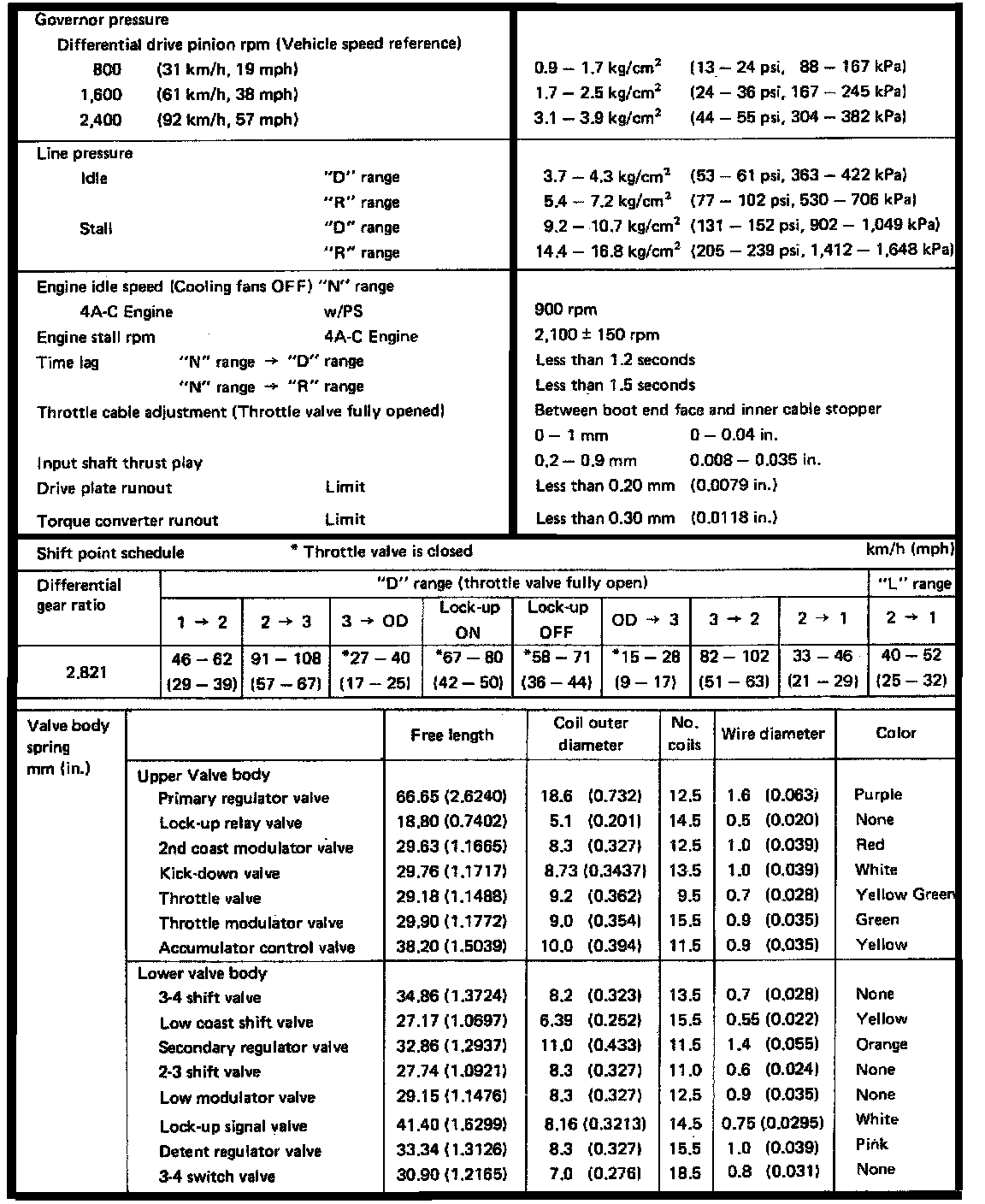

A240L 3-spd O/D A/T, Line Pressure/Ratios/Spring Clearance:

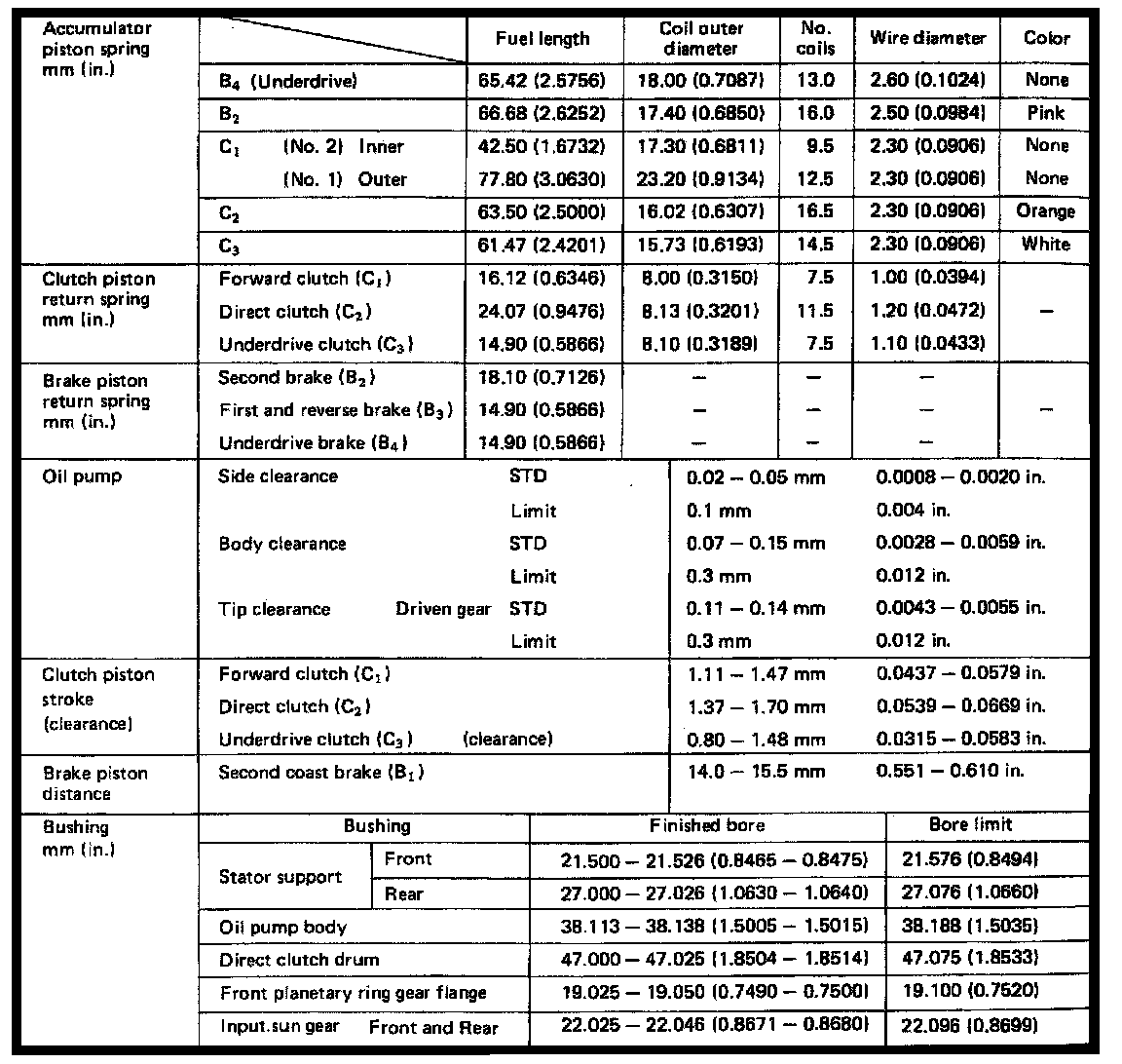

A240L 3-spd O/D A/T, Accumulator/Clutch Clearances:

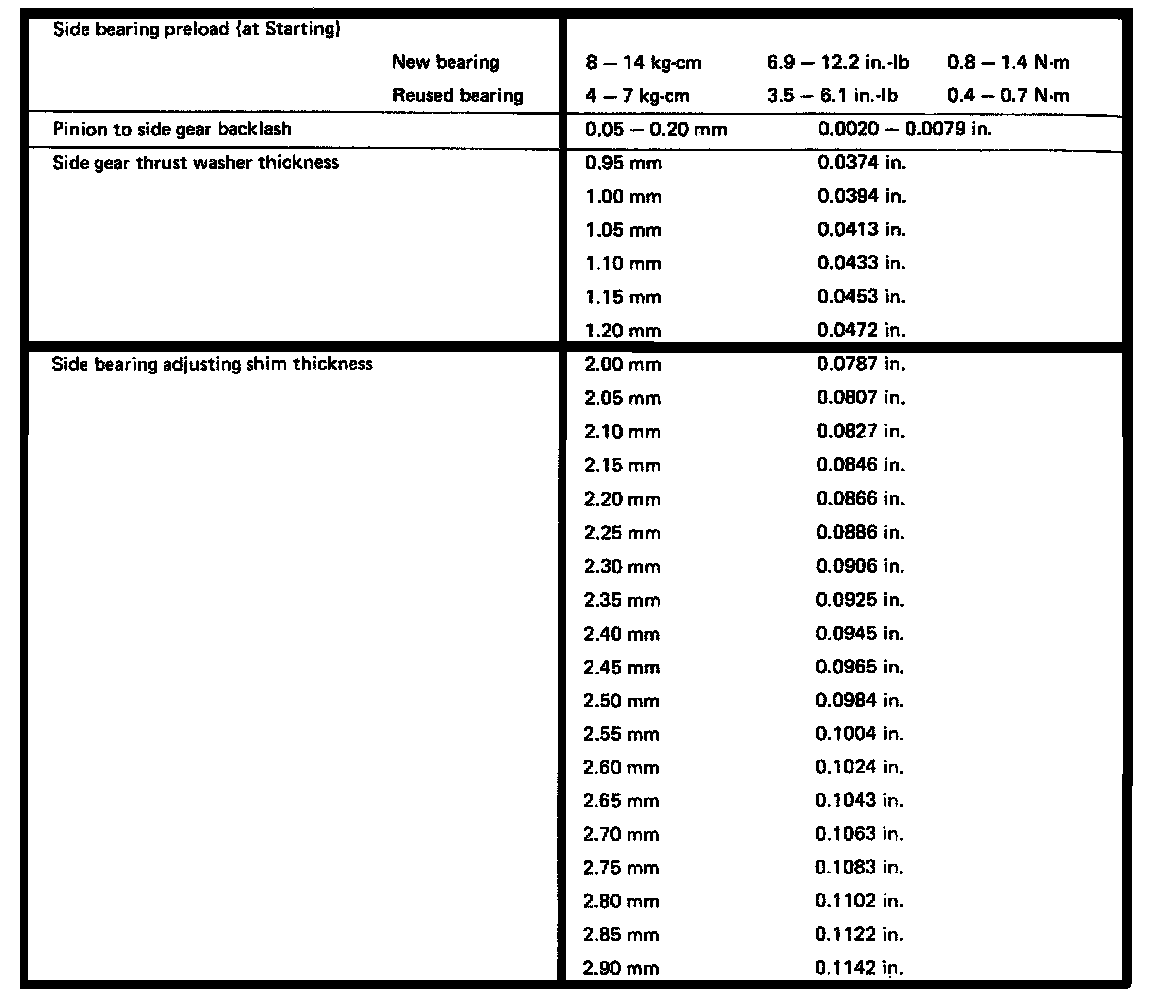

A240L 3-spd O/D A/T, Differential Torque/Thickness:
