Toyota
>>
1987
>>
Corolla Sedan L4-1587cc 1.6L DOHC (4A-F)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

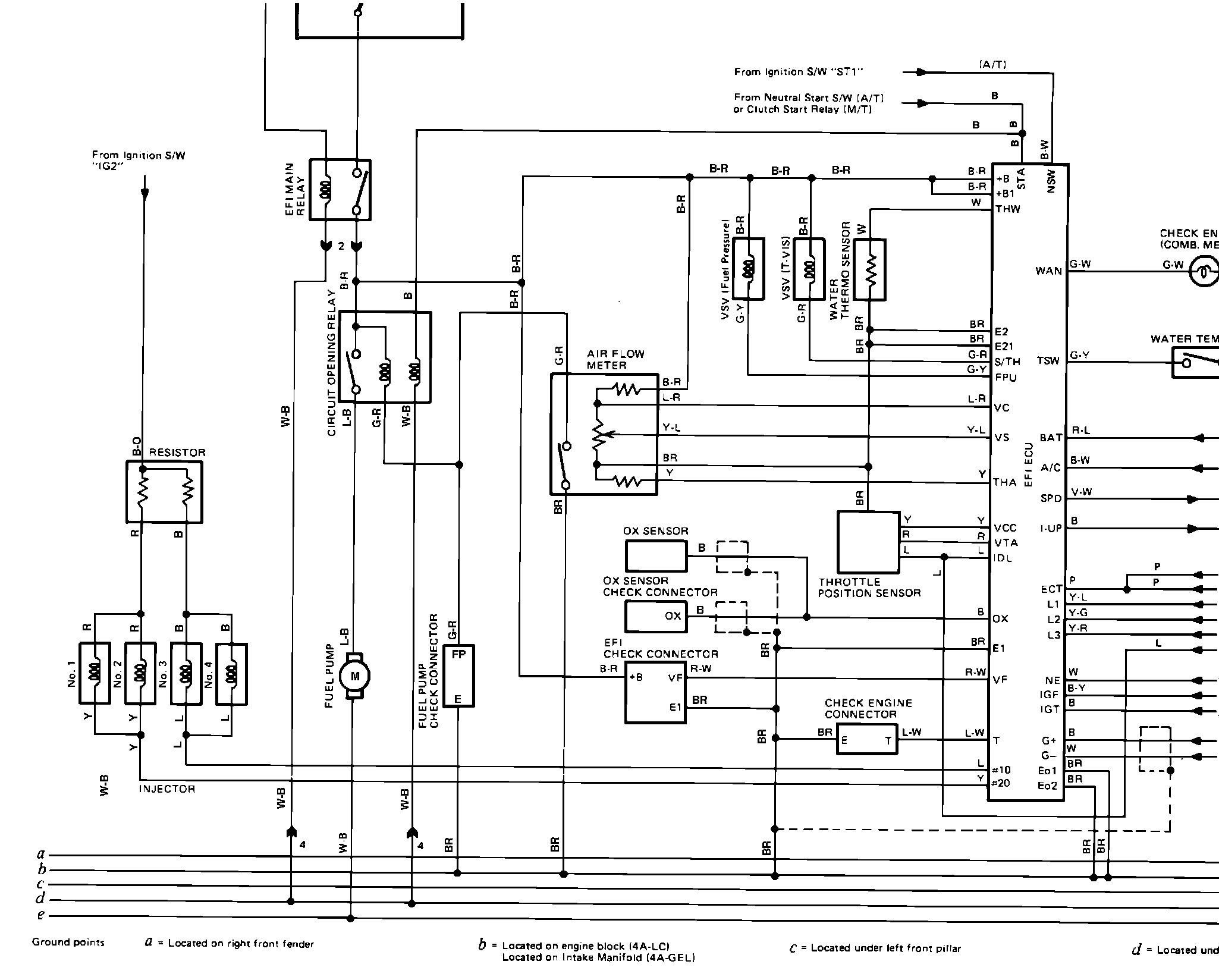

��^�_�5_�;_�C_N_�W_Fig. 3b complete body & chassis wiring:
