Audio - AM Reception Problem

REFERENCE ELECTRICAL NUMBER 023 DATE 02-27-87 MODEL AE, AL/EL, YR, RN
TITLE AM RECEPTION PERFORMANCE
Condition: Excessive static noise may occur on AM stations in some areas and especially near FM transmitters on the following radio model:


Part Number 4 - Digit Modal Description
CODE on face plate


08600-00075 1427 AM/FM ETR (2 Speaker system)
Port/dealer installation only

Cause: Internal component variance.

Remedy: The following procedure should be followed if a customer brings this condition to your attention.

Dealer: Call Fujitsu Ten (radio manufacturer) using the appropriate toll-free phone number listed below to order an exchange unit.

Toll-free (800) 237-5413 (except Calif. and Alaska)
(800) 222-9270 (Calif. only) (213) 513-0411 (Alaska - call collect)

Radio manufacturer will ship a modified unit to the dealer via blue label (two day UPS) air freight.

Dealer: - Replace radio unit for customer.
- Submit warranty claim for labor R & R time.
- Return removed unit to Fujitsu Ten in original shipping container.

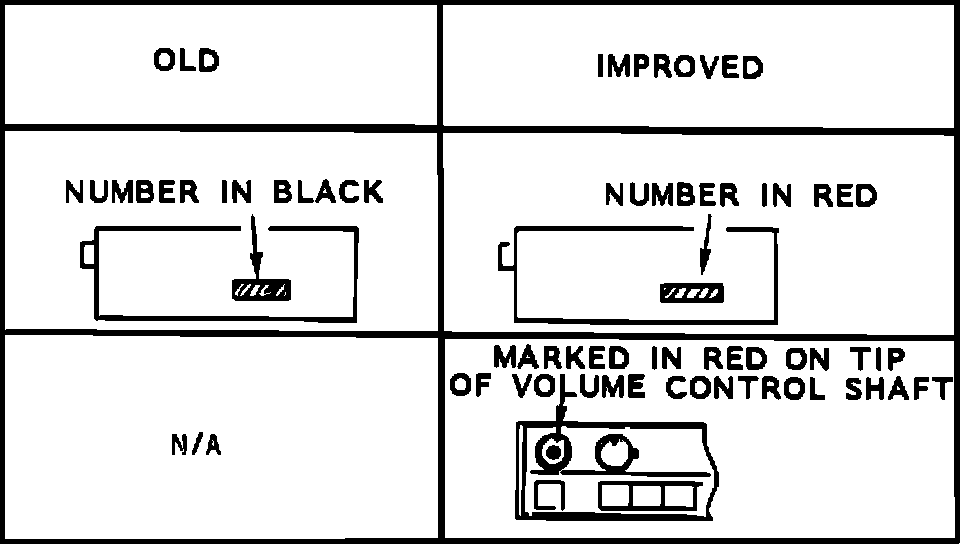

THE IMPROVED RADIO CAN BE IDENTIFIED AS SHOWN IN THE DIAGRAM BELOW
