M/T - New Synchonizer Ring Improves Shift Feel

REFERENCE TRANSMISSION
CLUTCH
NUMBER 016 DATE 11-07-86 MODEL AW, AE(FF)
To improve 1st and 2nd gear shift feeling in the C5# Series Transaxles, the rigidity of No. 1 synchronizers has been increased.

SYNCHRONIZER RINGS:

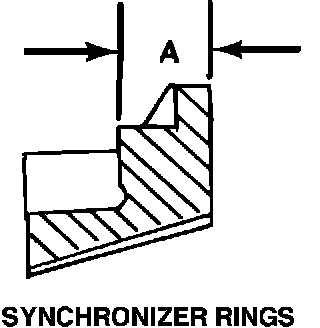

To increase the rigidity of the No. 1 synchronizer rings, the shape was changed. To accommodate the new synchronizer rings, the No. 1 shift keys were also changed. (See illustration #1)
Dimension A: Old 0.158 in. (4 mm) Dimension B: Old 0.925 in. (23.5 mm)
New 0.189 in. (4.8 mm) New 0.862 in. (21.9 mm)
ILLUSTRATION #1
PRODUCTION EFFECTIVE:

From VIN Production Date

JT2AW15C*F0073551 March, 1986
JT2AE82**F3363180 "
JT2AE83E*F3363180 "
JT2AE84E*F3363180 "
PRODUCTION EFFECTIVE:

Transaxle Beginning No.:

603-16600

Part Number Information:

Prev. Part No. Part Name New Part No. Part Name

33367-12030 Ring, Synchronizer 33367-12031 Ring, Synchronizer
No. 1 No. 1

Key, Synchromesh Key, Synchromesh
33365-12020 Shifting No. 1 33365-12021 Shifting No. 1

Interchangeability:

New style synchronizer rings and synchromesh shifting key must be changed as a set if used on pre-production change vehicles.
