EGR Backpressure Transducer: Locations

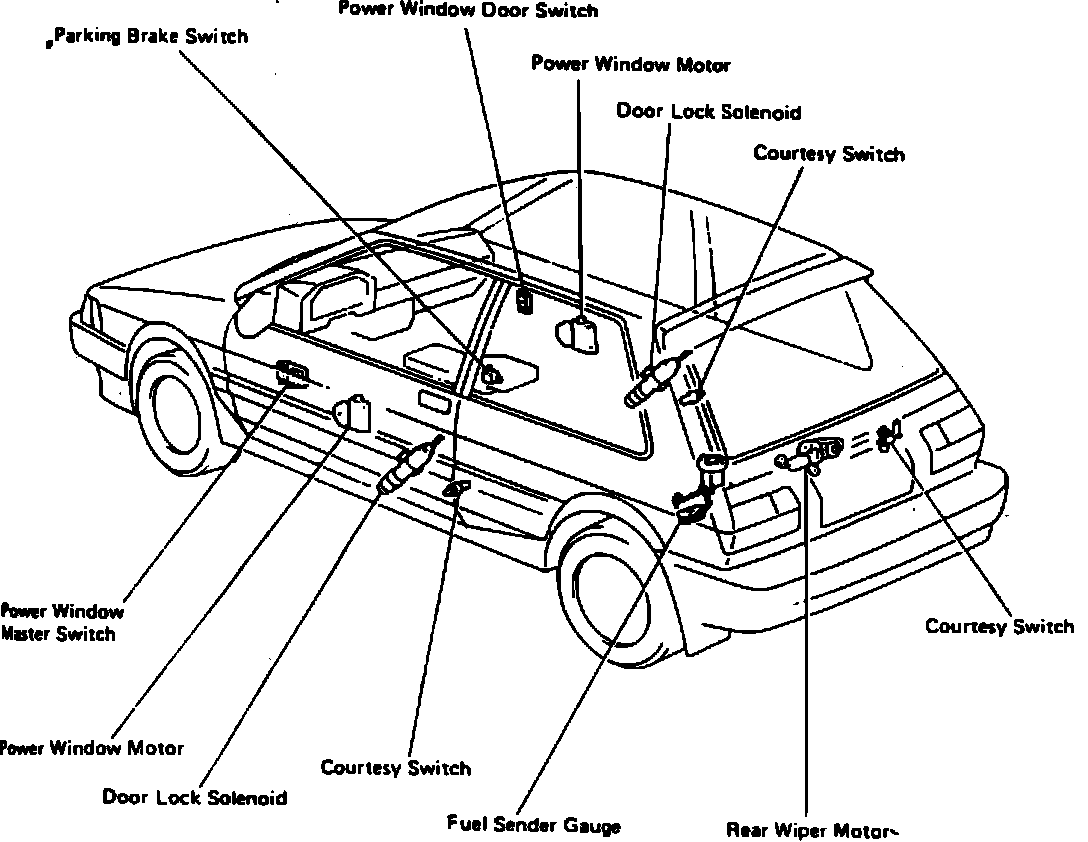

Chassis Components.:

Rear Of Engine

Applicable to: 1987 FWD Corolla FX

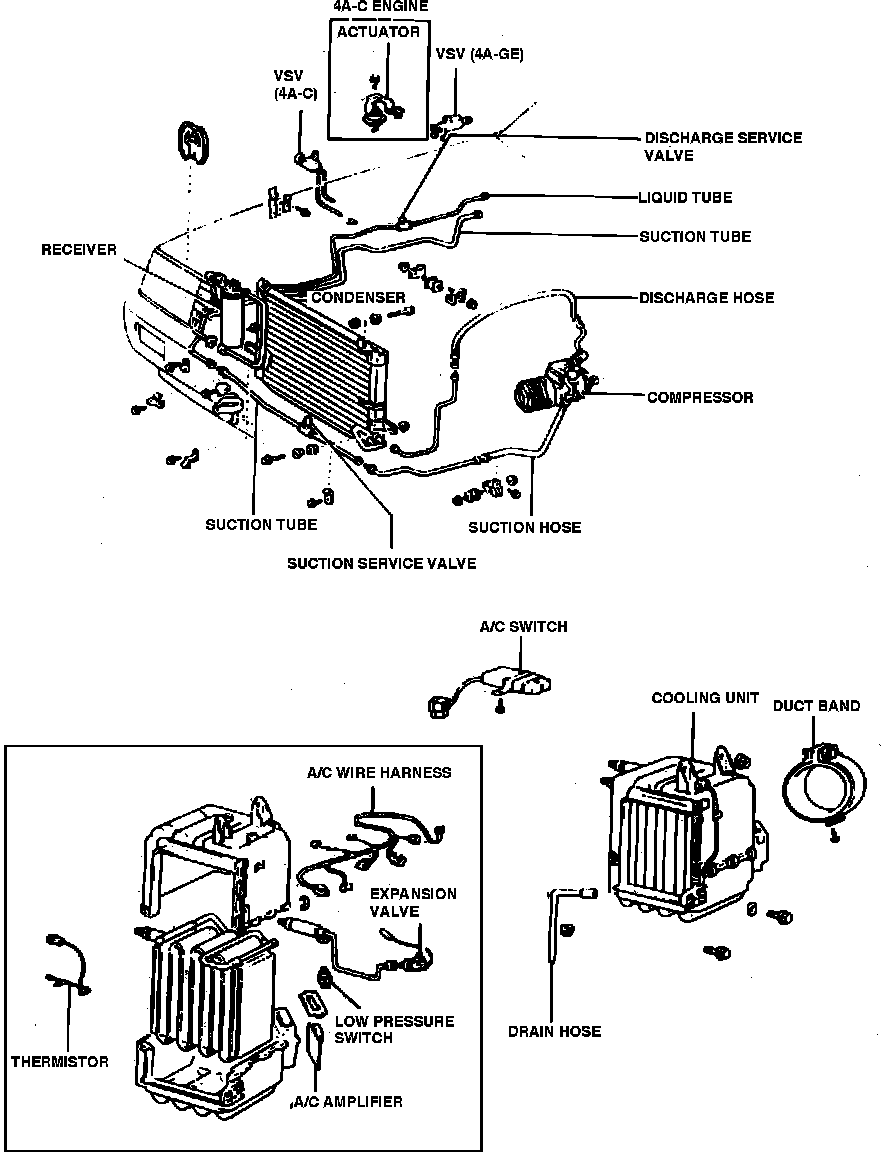

A/C Components.:

RH Side Of Engine

Applicable to: 1987 RWD Corolla

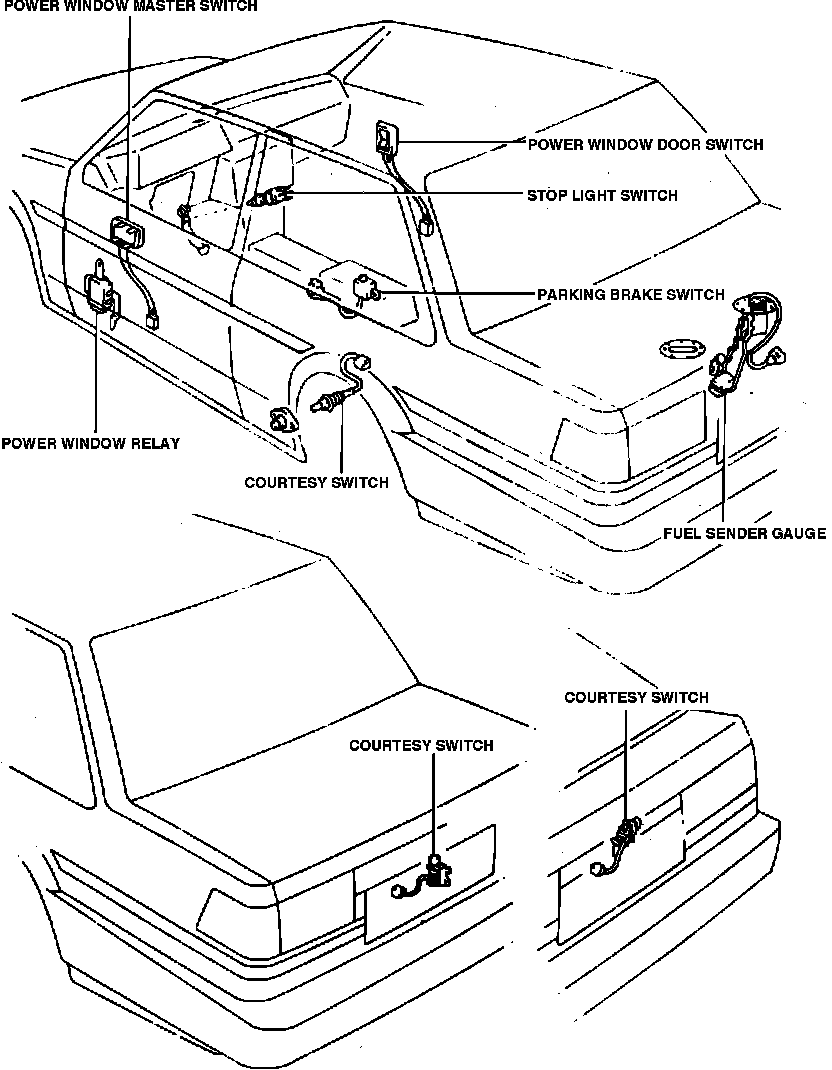

Chassis Components.:

RH Side Of Engine

Applicable to: 1987 FWD Corolla Exc. FX

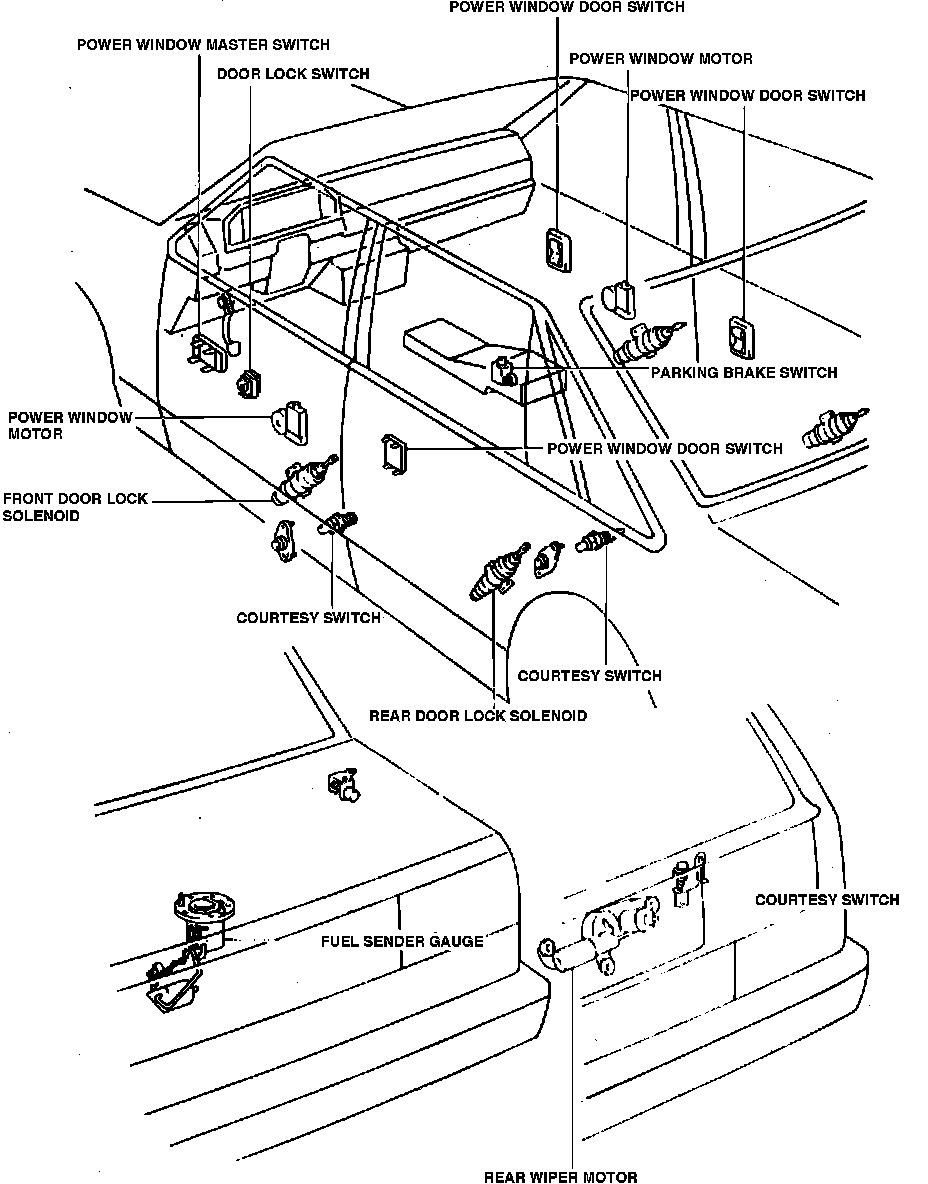

Chassis Components.:

RH Side Of Engine

Applicable to: 1987 RWD Corolla

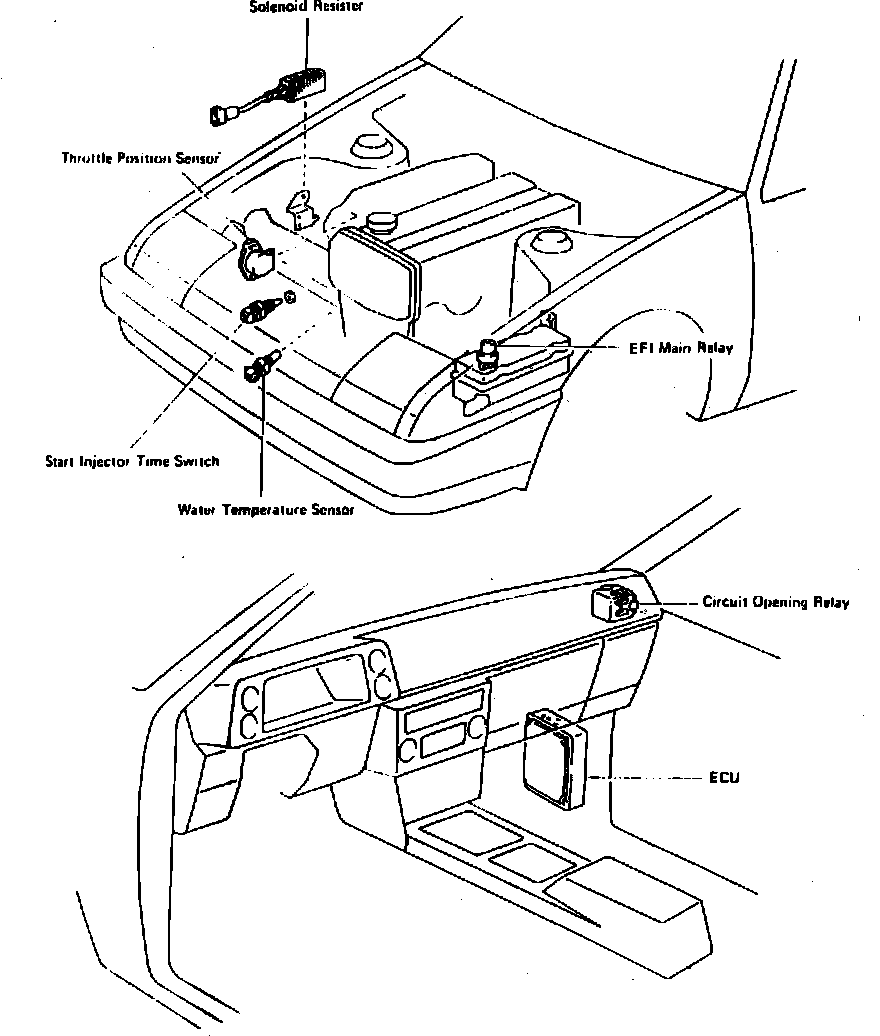

EFI System Components.:

RH Side Of Engine

Applicable to: 1987 FWD Corolla

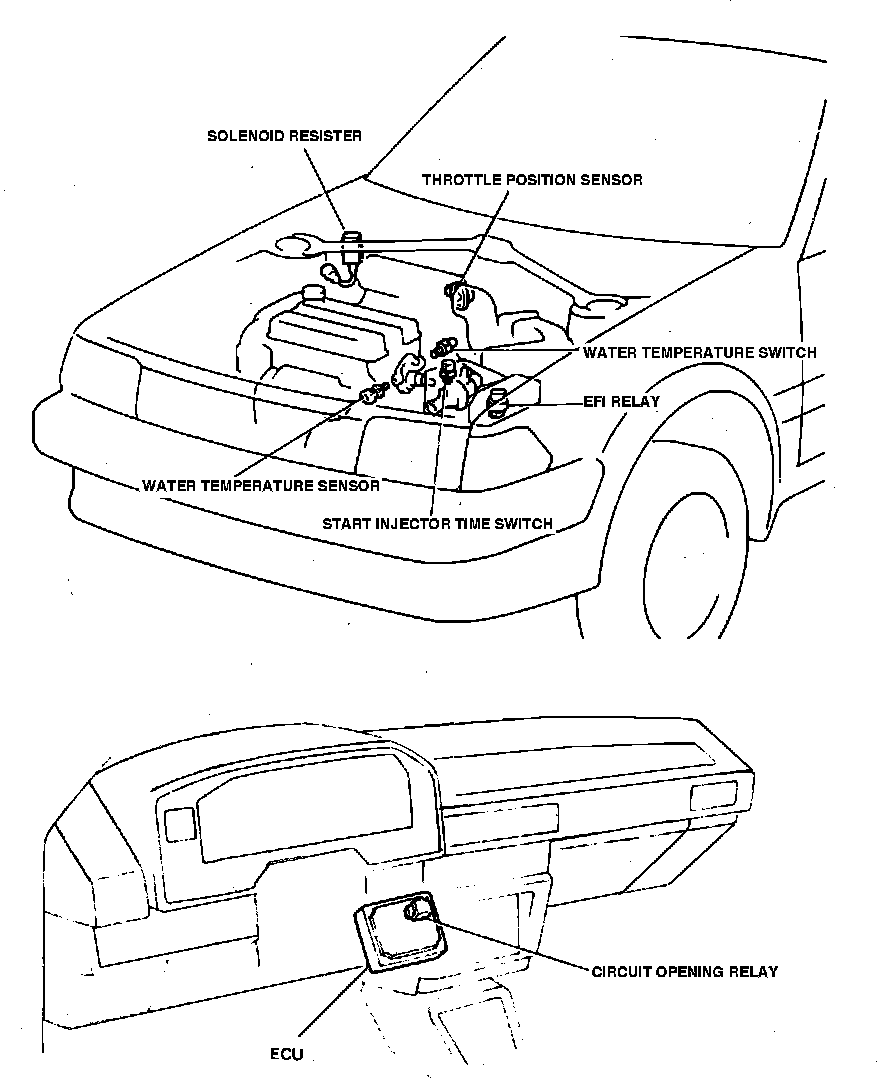

EFI System Components.:

RH Side Of Engine

Applicable to: 1987 RWD Corolla
